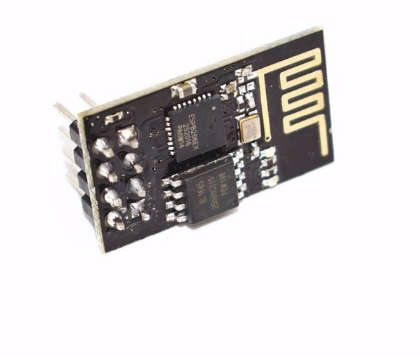

Wireless Module ESP8266 - ESP01

Wireless Module ESP8266 - ESP01

Product Description

This WiFi serial transceiver module is based on the ESP8266 chipset. The ESP8266 modules offers a very cheap way to expand microcontroller projects with Internet connection. This module has an integrated TCP/IP protocol stack. In short, the ESP8266 module is a TTL "Serial to Wireless Internet" device. The module runs at 3.3 Volts and the serial port is set to a data rate of 115200 baud.

Product Specs:

• ^{802.11 b/g/n}
• ^{LWIP aggrement}
• ^{Support 3 modes: AP,STA,AP+STA}
• ^{Integrated TCP/IP protocol stack}
• ^{Integrated TR switch, balun, LNA, power amplifier and matching network}
• ^{IntegratedPLLs, regulators, DCXO and power management units}
• ^{Power down leakage current of 10uA}
• ^{Integrated low power 32-bit CPU could be used as application processor}
• ^{SDIO 1.1/2.0, SPI, UART}
• ^{Wake up and transmit packets in 2ms}
• ^{Wi-Fi Direct (P2P), soft-AP}
• ^{Standby power consumption of 1.0mW}
• ^{Size 21.1mmx13.2 mm}

How to Setup?

• Instructables Guide
• ESP8266 Forum and FAQ

^{Please note: Locally Stocked, Available for Immediate Shipping!}
