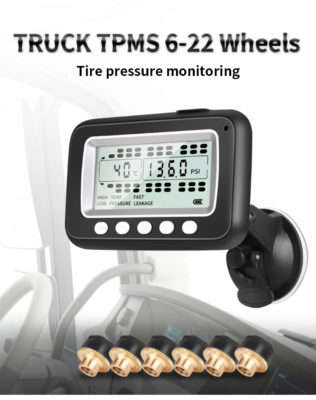

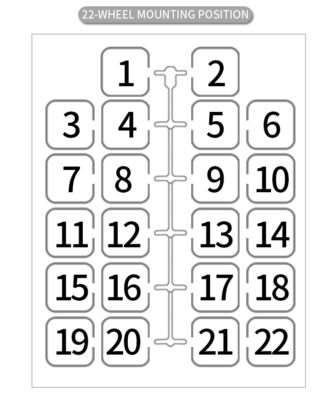

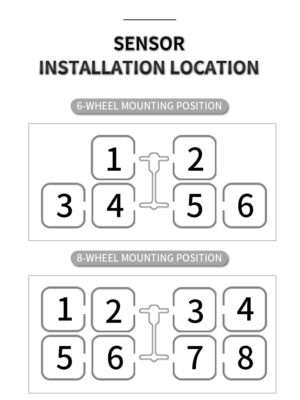

1.Support trucks , trailers. 2, 6, 8, 10, 12, 16, 18, 20, 22 wheels support.

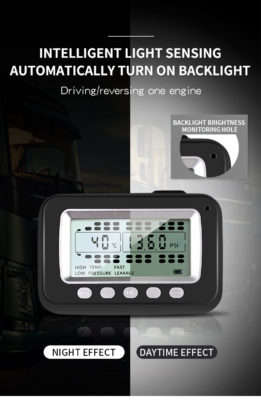

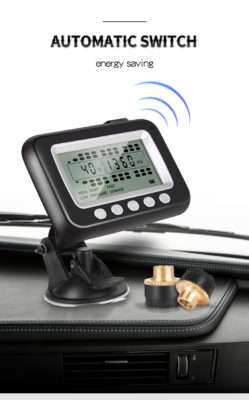

2.LCD display with backlight, suction cup holder.
3. High temperature, low temperature, high pressure, low pressure alarm.
4. Max pressure is 15bar, 219psi.
5.Support '' PSI'' '' BAR''.
6.RF wireless technology, can auto-alarm, when tire pressure and temperature is abnormal.
7.Sensor waterproof grade: IP67.
Type: Digital
Certification: ce
Voltage: 3V DC
Model Number: YBT60
Working temperature: -30~+125°C
RF Emission frequency: 433.92MHz±28KHz

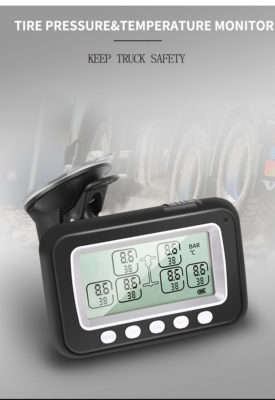

Display: LCD Colour display, backlight
Working Pressure: 0-219psi
Solar Panel Capacity: 400mA
Default Pressure: 87PSI-174PSI (Adjustable)
Max Pressure: 219psi

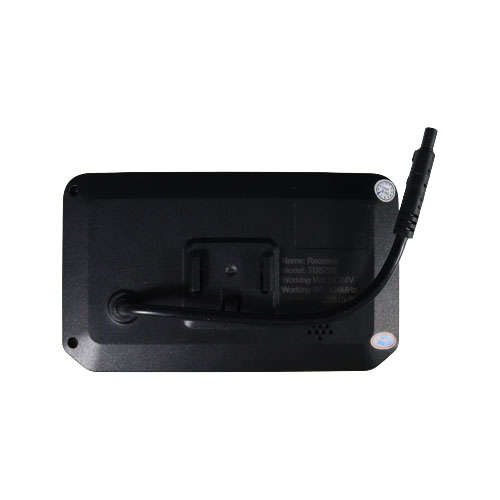

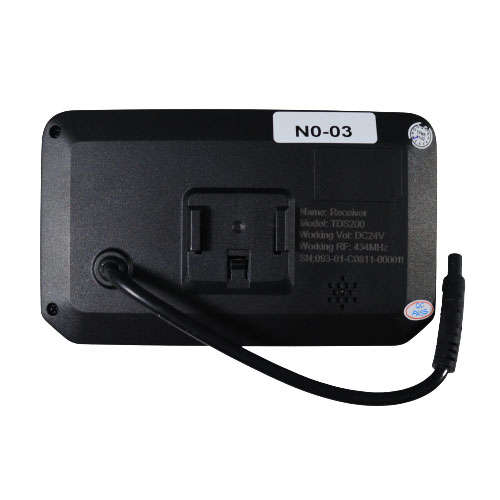

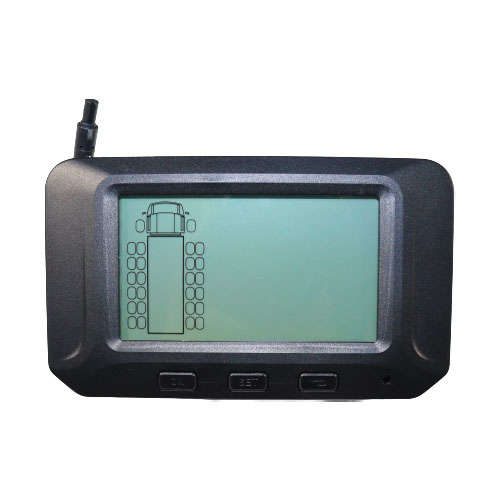

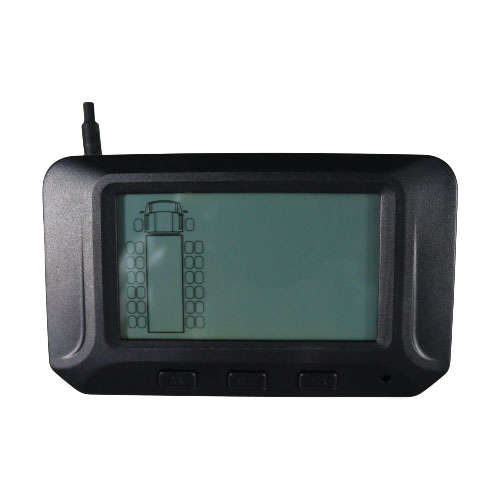

Monitor Specification | |
1.Operating Voltage | 12v |
2.Storage Temperature | -30-125 |
3.Working Temperature | -30-125 |
4.RF Emission Frequency | 433.92MHZ |
5.Monitor Mode | LCD Colour Display with backlight |
6.Working Pressure | 0-219PSI |
7.Bright Operating Current | 6mA |
8.Black Operating Current | 4mA |

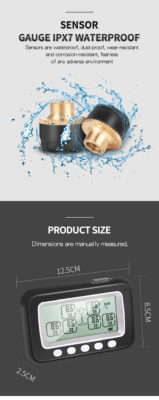

9.Size | 125*85*25MM |
10.Chip | Infineon chip (Import from Germany) |
11. High Pressure Alarm | 174PSI(12BAR) |
12. Low Pressure Alarm | 87PSI ( 6BAR) |

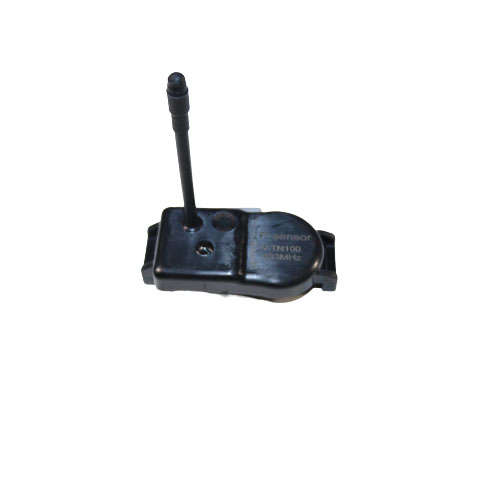

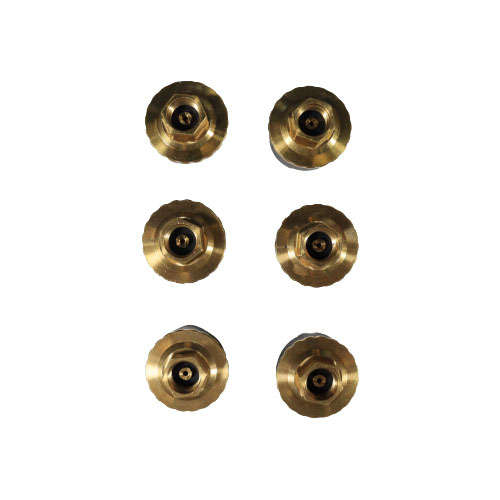

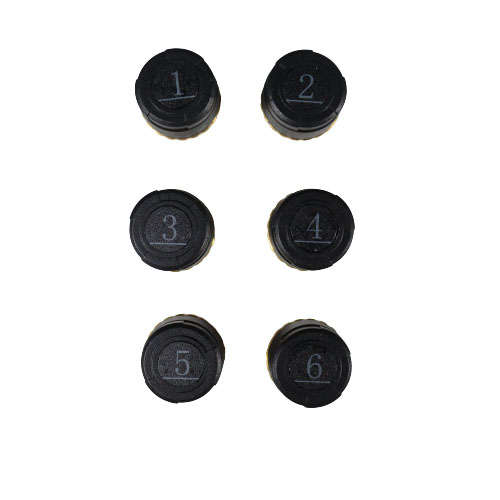

External Sensor Specification | |
1. Battery Life | 1-3years |
2.Operating Voltage | 3v |
3.Storage Temperature | -30-90 |
4.Working Temperature | -30-85 |
5.Temperature Resolution | +/-2(25) |
6.Pressure Range | 0-15.0Bar ( 0-219psi ) |
7.Waterproof Grade | IP67 |
8.Transmitted Power | 10dBm |
9.Transmitted Frequency | 433.92MHZ |

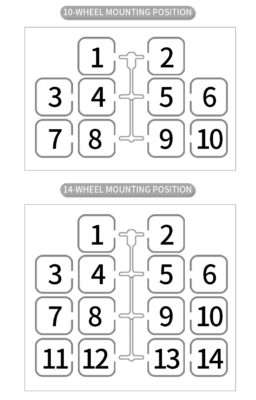

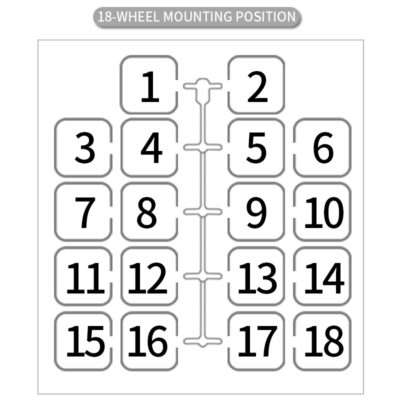

11.Wheels support | 2 ,6 ,8 ,10 ,12, 16,18 ,20 ,22,26 |
12.Lithium Battery | CR1632 |
Certification | CE ROHS |
Aging test | full 72hours |
QC Test | 100% full inspection before shipping out |
HS Code | 9026209090 |
