Wireless Video Transmitter and Receiver Kit for Rearview Camera's - C167

 This wireless video transmitter for your vehicle’s rearview camera will transmit up to a 10 meter range, allowing you to transform any wired rearview car camera to a wireless rearview camera.

Simply connect the rearview camera to the transmitter and a car LCD display to the receiver and voila! You have yourself a fully functioning wireless rearview camera. Ideal for anyone wanting to use their current wired rearview camera on an additional vehicle or for people looking at a wired rearview camera with the specifications they want, but not the ease of wireless transmissions.


At a Glance...

• A Range of up to 10 Meters, is Great for Larger Vehicles like Caravans
• Convert a Wired Rearview Camera into a Wireless

.

Manufacturer Specifications
General

• Transmitting Frequency: 2,400 - 2,483 MHz
• Transmit Power: 10mW/CE 2mW/FCC
• Frequency Range: 2400 - 2483.5MHz
• Signal-to-Noise Ratio: 38dB
• Harmonic Distortion: 1.5% (100HZ to 15kHz) Input Terminal Integrated Antenna (External Antenna)
• Channels Control: Fixed Frequency Circuit Jigging
• Video Output Level: 1V p-p 0.2V at 75Ohm
• Power Source: DC 12V
• Power Uutput: DC 5V (MINI USB Interface)

Ports

• Video OUT (Receiver)
• Video IN (Transmitter)
• DC IN

Dimensions

• Main products dimensions: 70x30x10mm (L x W x D)
• Main products weight: 100g

Package Contents

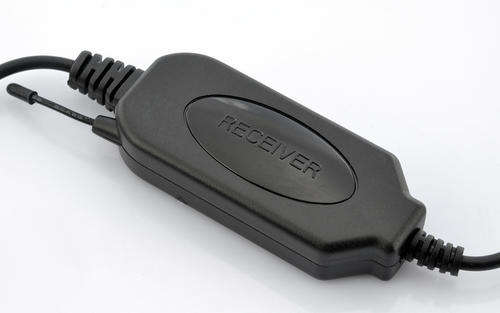

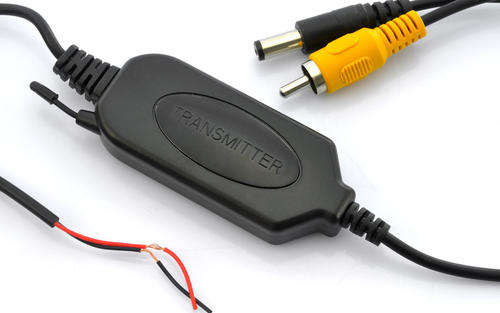

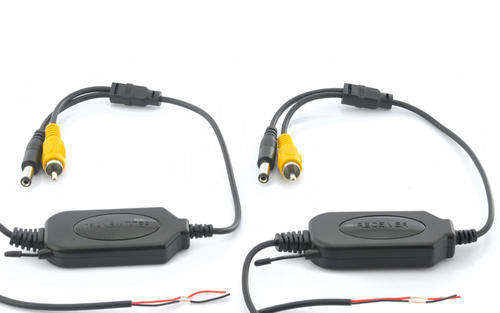

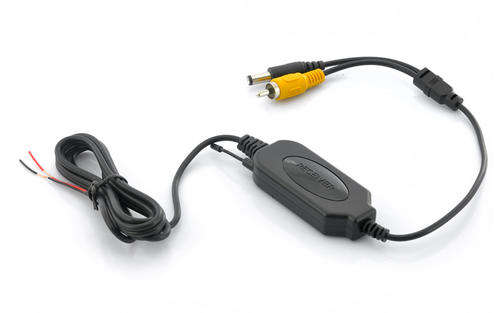

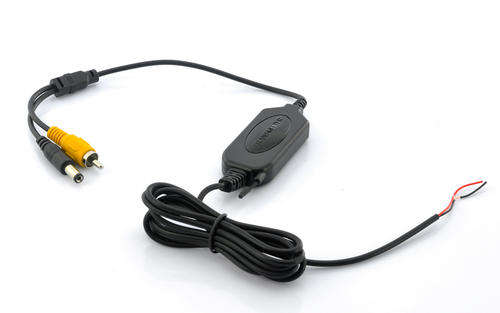

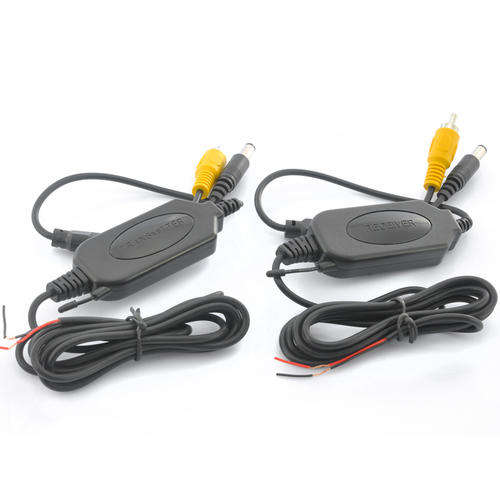

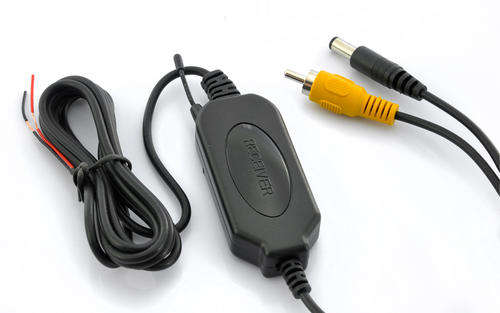

• 2.4GHz Transmitter
• 2.4GHz Receiver
