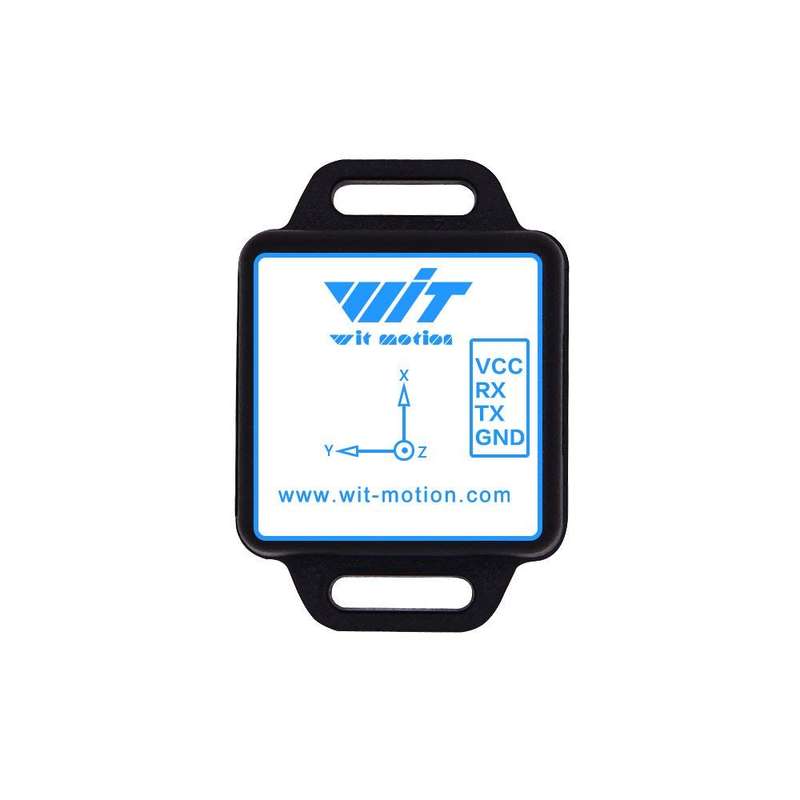

WIT MPU6050 3-Axis bluetooth Digital Accelerometer 6-Axis Gyro Gyroscope AHRS Transducer Tilt Vibration Sensor BWT61CL


Product features
High precision Pitch Roll Yaw angle output
Embeded Kalman fiter for high precision angle output
3 axis Accelerometer ,3 axis Angular velocity ,  3 axis angle measurement
bluetooth Serial port communication wireless,also can connect with cable

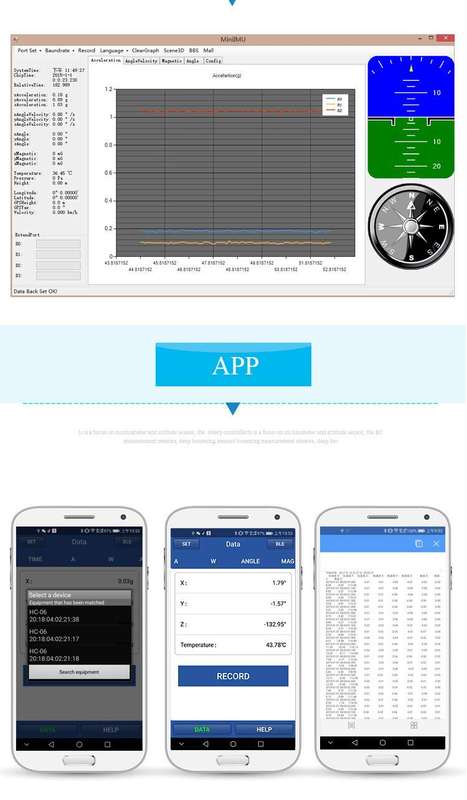

Providing PC software ,APP and 51 STM32 sample code

Product document: ;
Product description
(1)BWT61CL Gyroscope is good solution for angle measuring, acceleration measurement and angular velocity measurement,It packs a 3-axis gyro and a 3-axis accelerometer.
(2) Kalman filter combines the gyro and accelerometer to get high precision angle measurement,it can be used such as four-axis flight control and self-balancing robot,
angle measurement and depth measuring and so on.
(3)The module can get accurate attitude in a dynamic environment. Attitude measurement precision is 0.05degrees, high stability.
(4)Using high-precision gyro accelerometer MPU6050, read the measurement data by serial port,No need to study complex I2C protocol of MPU6050 .
With advanced digital filtering technology, reduce the measurement noise and improve measurement accuracy.

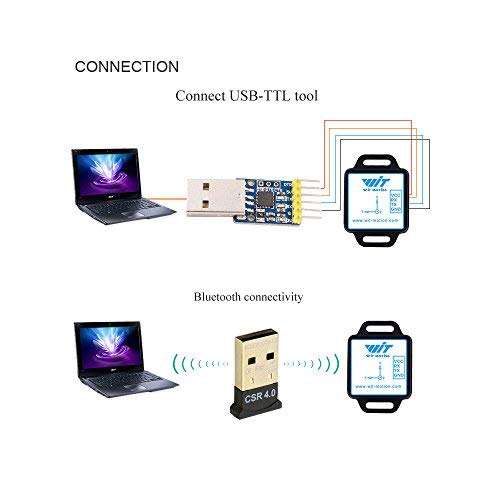

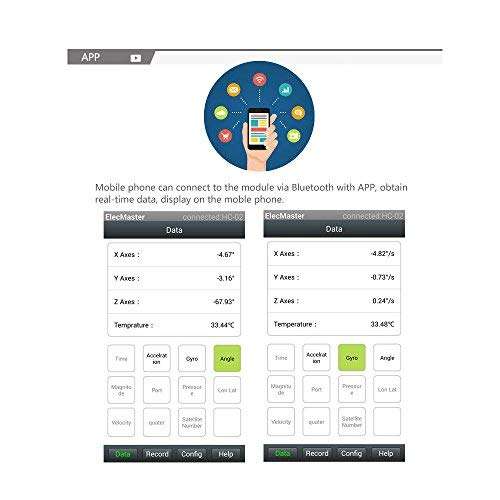

(5)bluetooth serial port communication wireless,also can connect to other equipment with line.

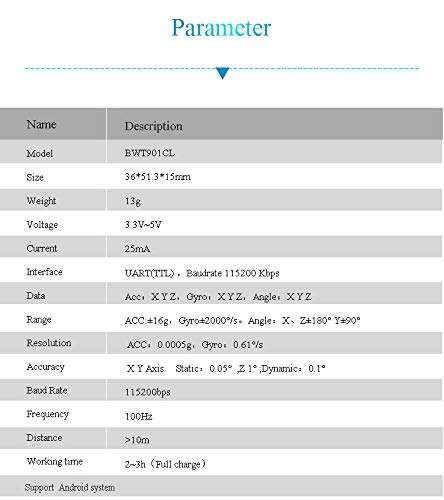

Specification :
Input voltage: 3.3V-5V
Consumption current: typical 15mA

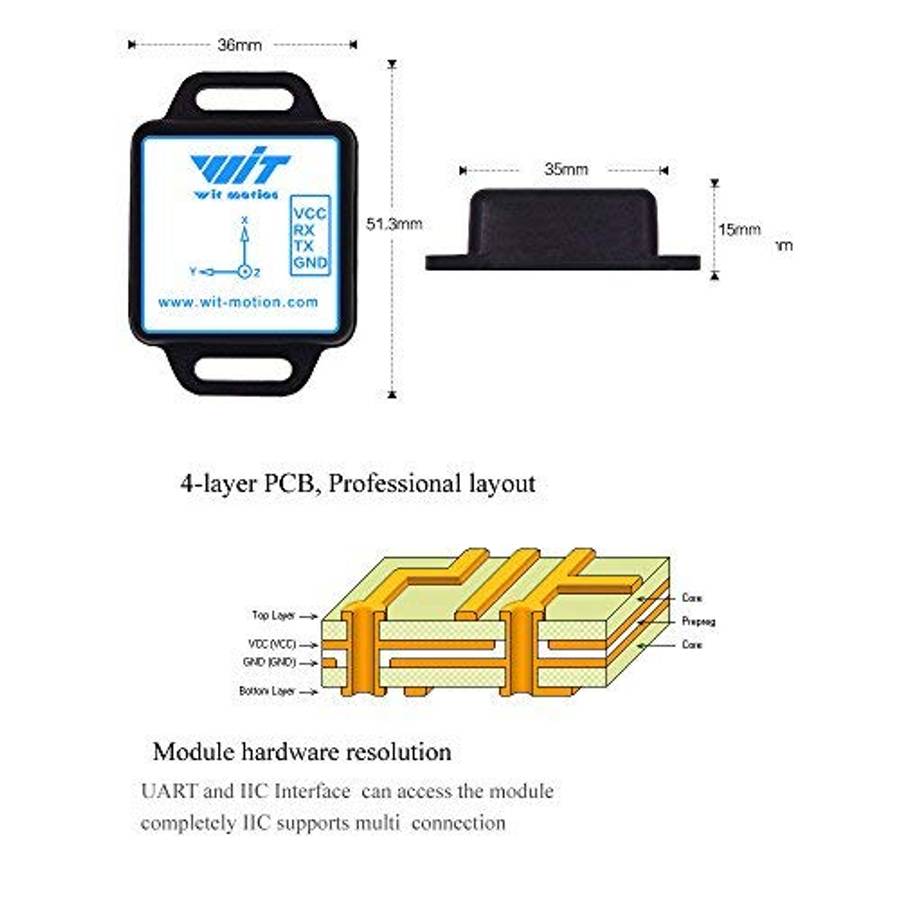

Volume: 36mm X 51.3mm X15mm
Measuring : Attitude angle: 3 axis Acceleration: 3 Axis Angular Velocity: 3 Axis
Range: Acceleration: ± 16g, angular velocity: ± 2000 ° / s.
The data output frequency 100Hz (baud rate 115200).
Data Interface: Serial (TTL level),
Baud rate 115200kps .
Provide single-chip analytical sample code.

Note:Angle of Z axis will have accumulated error, because there is no magnetic field correction
There is no battery in it.


Packing Included
1 x BWT61CL Module 1 PCS


Download
JY61 inclinometer TTL version
serial port tool:
