Specification:
Brand: Sinilink
Product Name: DC Buck-Boost Power Supply Finished Product
Model: XY-SK120S
Input Voltage: 6.000~36.00V
Output Voltage: 0~40.00V
Output Current: 0~7.000A
Power Output: 120W
Voltage Accuracy: ±0.5%+1 word
Current Accuracy: ±0.5%+3 word
Voltage Resolution: 0.01V
Current Resolution: 0.001A
Efficiency of Conversion: About 88%
Storage Data Groups: 10 groups

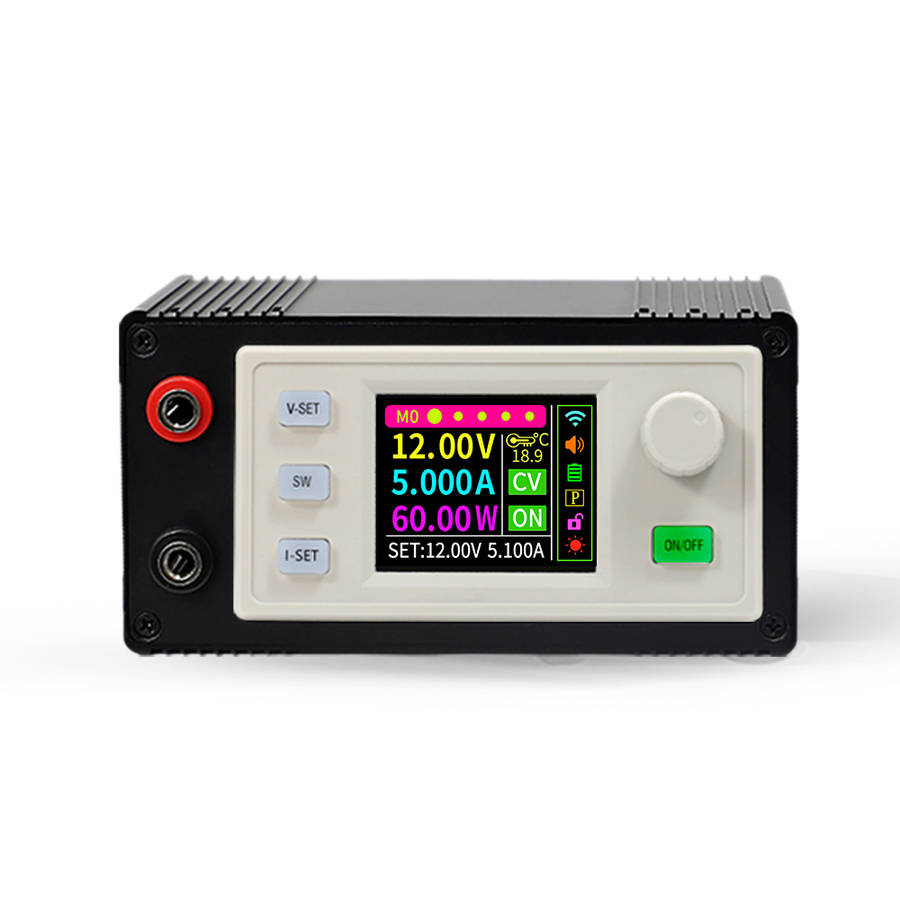

Screen Size: 1.8-Inch Full-View High-Brightness True Color LCD
Output Ripple Typical Value: vpp-150mv
MPPT Function: Supports MPPT solar charging
Soft Start: Yes
Buzzer: Yes
Number of Buttons: 5
Anti-Reverse Protection: Yes
Output Reverse Current Protection: Yes
Product Size: 86*50*45mm
Package Size: 104*70*52mm
Product Weight: 108g
Package Weight: 128g
Features:
1. High Precision Control: Offers fine control with a resolution of 0.01V for voltage and 0.001A for current.
2. Robust Safety Mechanisms: Includes features such as under-voltage, over-voltage, over-current, over-power, over-temperature, over-time out, over-capacity, and over-energy protections.
3. Customizable Display: The 1.8-Inch Full-View High-Brightness True Color LCD screen supports customizable color schemes and 360° rotation.
4. MPPT Solar Charging: Enhanced with MPPT function for efficient solar charging, ensuring effective energy conversion.
5. Data Management: Capable of storing up to 10 groups of settings, making it convenient for various applications and quick setup recalls.
6. User-friendly Interface: Equipped with silicone buttons and an easy-to-operate universal button for unlocking limitless possibilities and functional versatility.
Package Includes:
1 x Sinilink XY-SK120S DC Buck-Boost Power Supply Unit Finished Product
