Specifications:

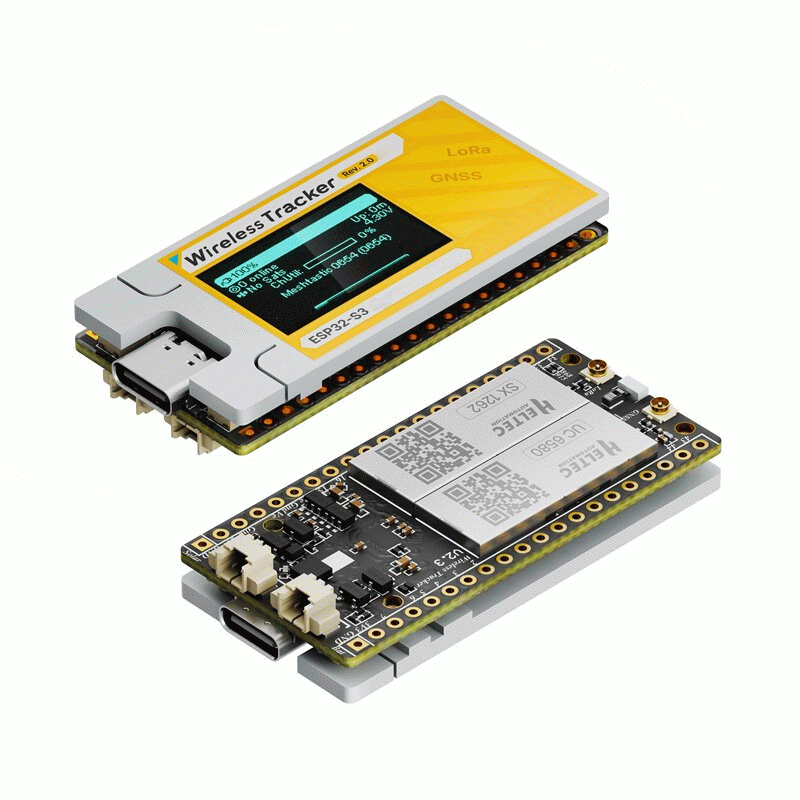

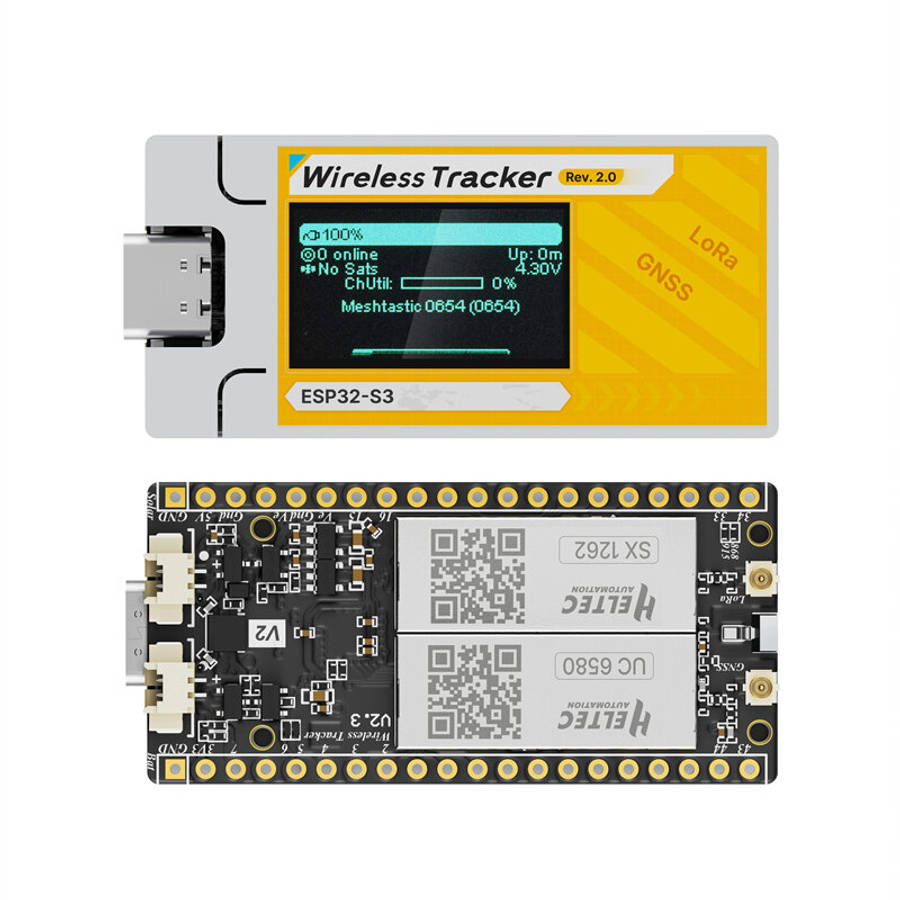

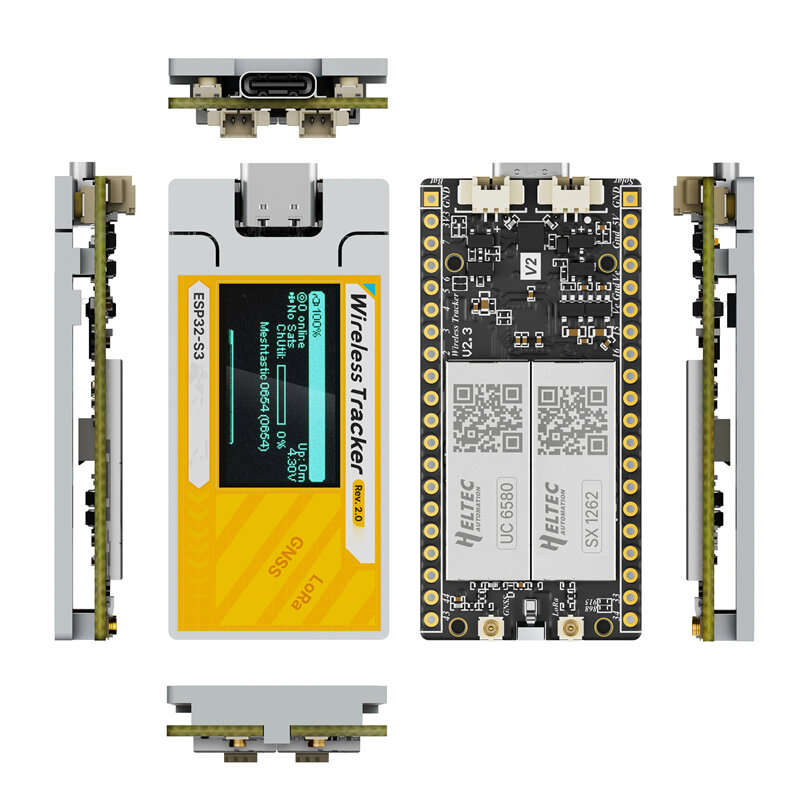

Model: Wireless Tracker V2
MCU: ESP32-S3FN8
LoRa Chip: SX1262
GNSS Chip: UC6580
Charging IC: CN3165
Frequency: 863~928 MHz
Max TX Power: 28 ± 1 dBm
Receiving Sensitivity: -135 dBm
WiFi: IEEE 802.11 b/g/n
Bluetooth: Bluetooth 5.0, Bluetooth LE, Bluetooth Mesh
GNSS: L1; supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS
Interfaces: USB Type-C; 1.25 mm Lithium Battery Connector; 1.25 mm Solar Panel Connector; LoRa Antenna (U.FL); GNSS Antenna (U.FL)
Antennas: Onboard 2.4 GHz metal spring antenna for WiFi/Bluetooth; reserved IPEX (U.FL) for LoRa and GNSS
Display: 0.96-inch 80x160 RGB TFT-LCD
USB Port Protections: Voltage regulator, ESD protection, shortcircuit protection, RF shielding
Power Management: Integrated charging, overcharge protection, power monitoring, automatic USB/battery switching
Operating Temperature: -20 ~ 70
Material: PCB + Plastic
Features:
1. ESP32-S3FN8 + SX1262 + UC6580 with Wi-Fi, LoRa, Bluetooth, and GNSS for longrange communication and high-precision positioning in a compact device.
2. 28±1 dBm LoRa TX power, upgraded RF frontend, and optimized PCB layout for extended range, stronger signal penetration, and improved link robustness.
3. L1 GNSS with GPS, GLONASS, BDS, Galileo, NAVIC, and QZSS, plus an active antenna with upgraded LNA for stronger reception and improved positioning accuracy.
4. USB Type-C with voltage regulation, ESD and short-circuit protection, and RF shielding; battery and solar interfaces with charging management and automatic switching.
5. 0.96inch 80x160 RGB TFTLCD for status and debugging; 2.4 GHz metal spring antenna; reserved IPEX (U.FL) for LoRa and GNSS.
