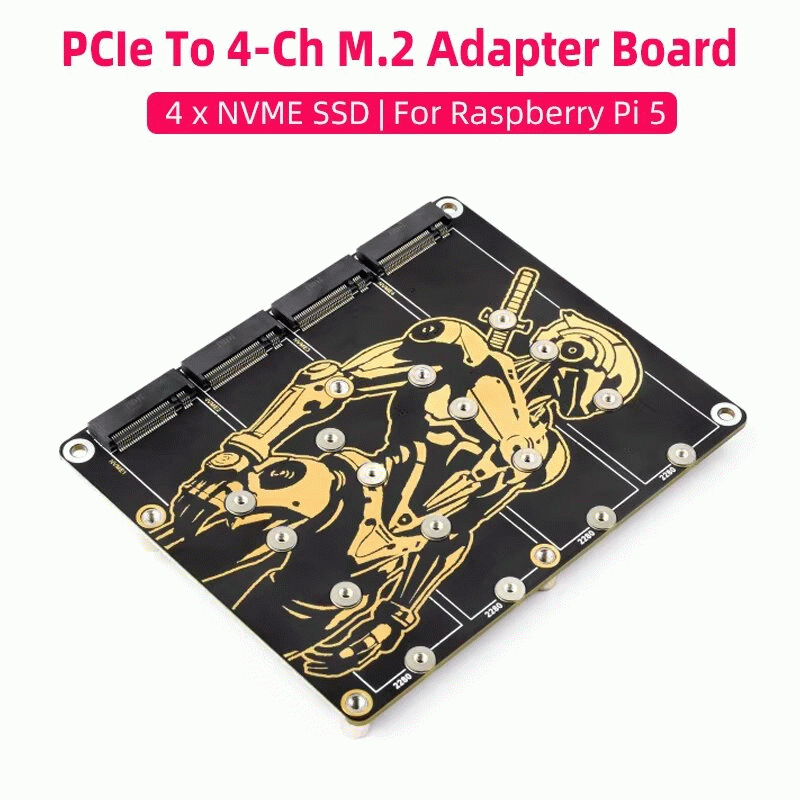

Specifications:
Interface: PCIe to 4-channel M.2 (NVMe Protocol)

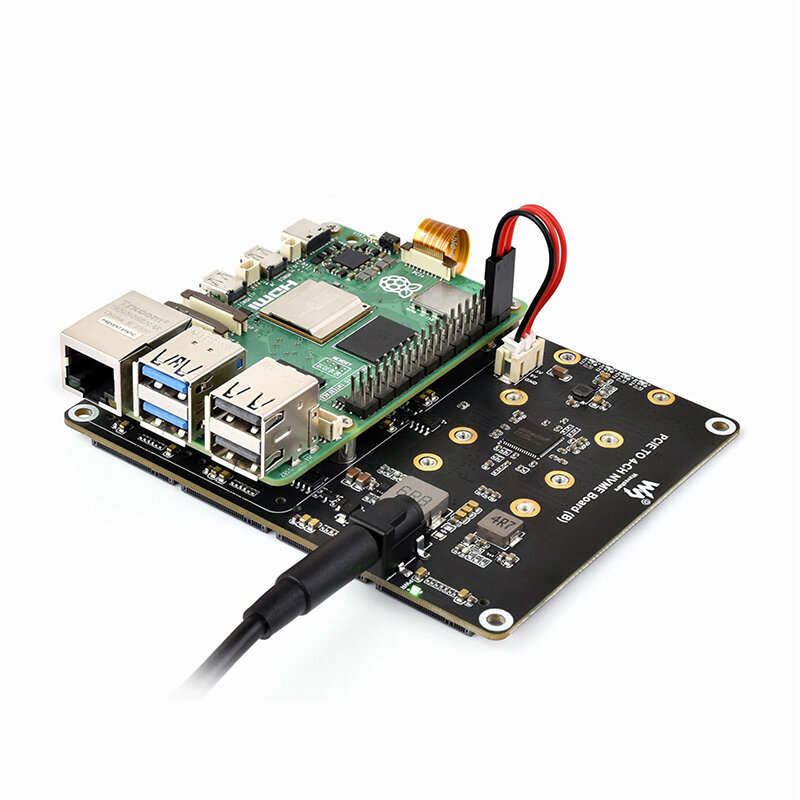

Compatibility: Designed for Raspberry Pi 5
M.2 Key Slot: M Key, supports NVMe SSDs
Transmission Speed: Supports GEN2 PCIe mode with theoretical speed up to 5Gbps; measured speed approx. 500MB/s
Material: High-quality Immersion Gold Process, ensuring reliable conductivity
Features:
1. High-Speed Storage Expansion
Enhance the Raspberry Pi 5 system with up to 4 NVMe solid-state drives for significantly faster read and write speeds compared to traditional TF card slots. Improves system performance and booting efficiency.
2. Scalable and Multi-SSD Support
Offers four independent NVMe slots, enabling simultaneous connection of multiple drives to increase storage capacity and streamline data workflows for advanced projects.
3. Power Supply Options for Flexibility
Choose between two models: a power-free option for smaller setups or an external power supply version, ensuring steady performance for power-intensive applications.
4. Robust Design for Optimal Connection
Engineered with M Key slots and a modern Immersion Gold Process, ensuring stable connectivity and faster signal transmission for high-performance data operations.
5. Easy-to-Integrate Functionality
Designed specifically for Raspberry Pi 5, the PCIe board fits perfectly, making it a hassle-free addition to your setup while maximizing compatibility and system efficiency.
Package Included:
Without Charger Version:
1 x PCIe To 4-Ch NVMe Board (B)
1 x Screws Pack
1 x PH2.0 3PIN Cable
1 x 16P-Cable (40mm)
or
With US Charger Version:
1 x PCIe To 4-Ch NVMe Board (B)
1 x PH2.0 3PIN Cable
1 x 16P-Cable (40mm)
1 x Screws Pack
1 x US 12V 4A Power Supply
