Wizo Link

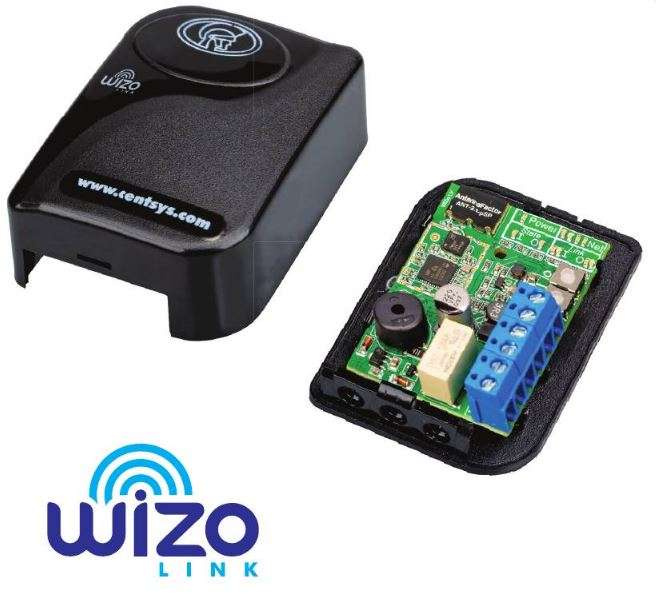

Centurion Wizo Link

WiZo-Link uses radio technology to create what is known as a mesh network.
This may be described as a layer of radio communications where every WiZo Link is continually acting as a repeater for all the signals in the network, even if these devices are not associated with that WiZo-Link.

A virtually unlimited list of possible applications:
WiZo-Link enables you to wirelessly control and activate lights, electric gates, geysers, pool pumps, irrigation systems, air conditioners and a plethora of other electrical appliances.
Its home automation made simple, and wireless!

Control your entire world with a single, centralised GSM unit:
Bring your WiZo network to life by adding a CENTURION G-ULTRA GSM unit.
All youll need is a single, centralised GSM unit to monitor and control all your WiZo-Linked appliances via your mobile phone*.
*Each device that is to be monitored and/or controlled requires a Master Node in order to facilitate the input/output functionality of the Slave Node(s)

This is a far more cost effective solution than installing a GSM unit at every appliance that youd like to monitor and/or control, and youll save a wad of cash on cabling and installation costs, not to mention the convenience of controlling your home from your phone.

Specifications:
Supply Voltage Range: 11.5V 24V DC
Average current consumption: 30mA
Peak current consumption: 50mA
Operating temperature range: -15°C - 50°C
Maximum number of WiZo-Links in a network: 50
Number of outputs to which a single input can link: 10
Number of inputs that can be linked to a single output: 10
Weight: 65g
Dimensions: 78mm (W) x 58mm (D) x 31mm (H)
Humidity: 0 90% (non-condensing)

Initial setup requires minimum 2 Wizo Links
