Description:
Featuring with a corona sensor and advanced leak detect technology, WJL-6000 is our reliable product with the functions of easy operation, stable function and great performance; It’s an ideal and economic feron and halogen leak detector. It is widely applied on pipe leakage, automobile air conditioner, cold storage, refrigerator repair and so on.

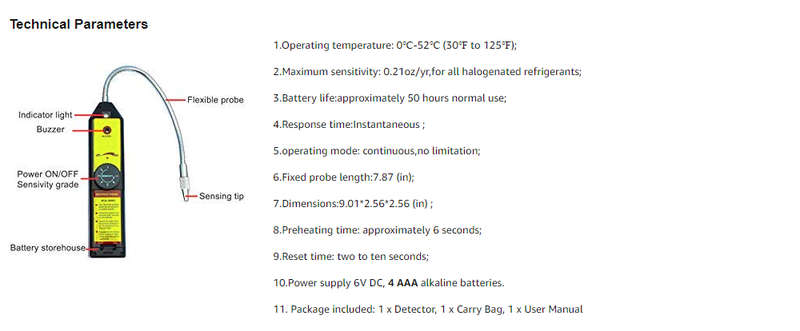

Specification:

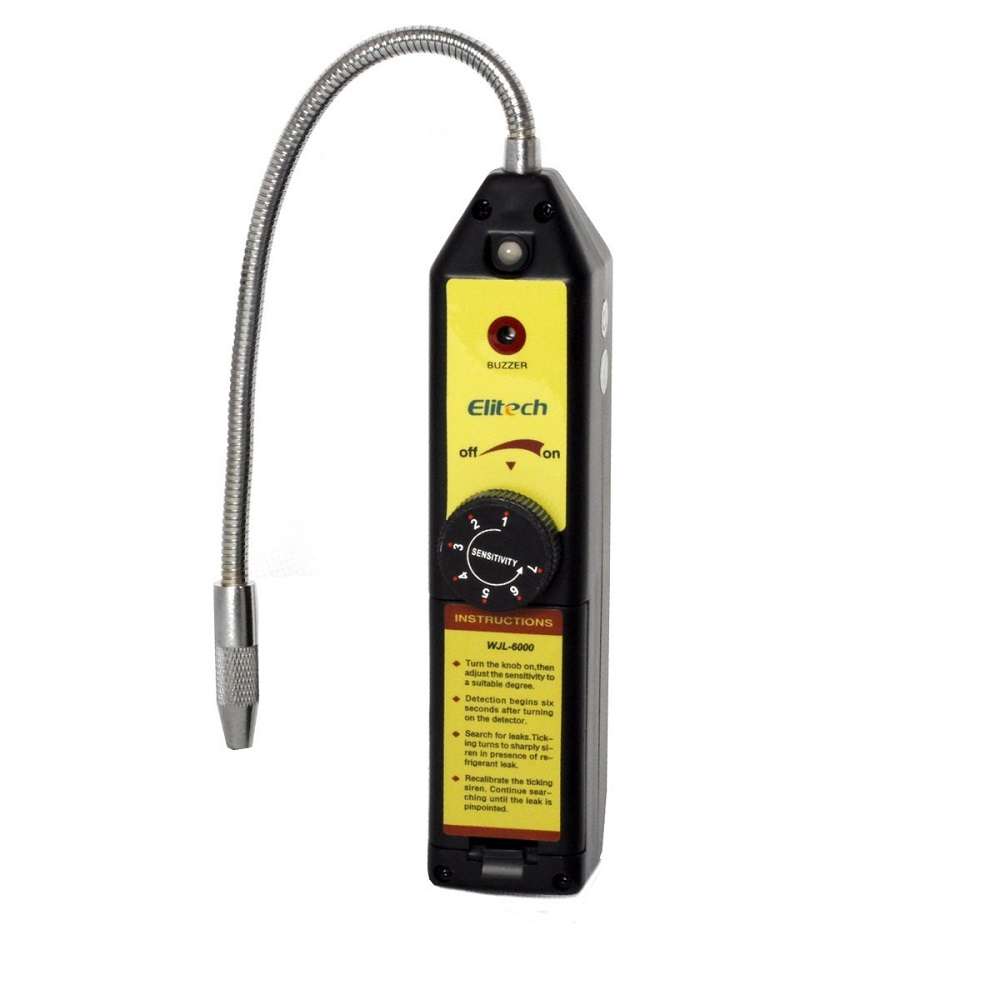

About WJL-6000
Freon leak detector triggers on R22, R134A, R404a, R410A and all halogenated refrigerants including HFCs, CFCs,HCFCs and blends.
Response within 3 seconds; Warm up in 6 seconds.
7Adjustable Sensitivity; Maximum sensitivity is 0.21oz/yr.
Audible and visual gas leakage indicators and dual battery indicator.
A flexible probe around 7.9-inch allow detections in difficult and hard-to-reach areas.

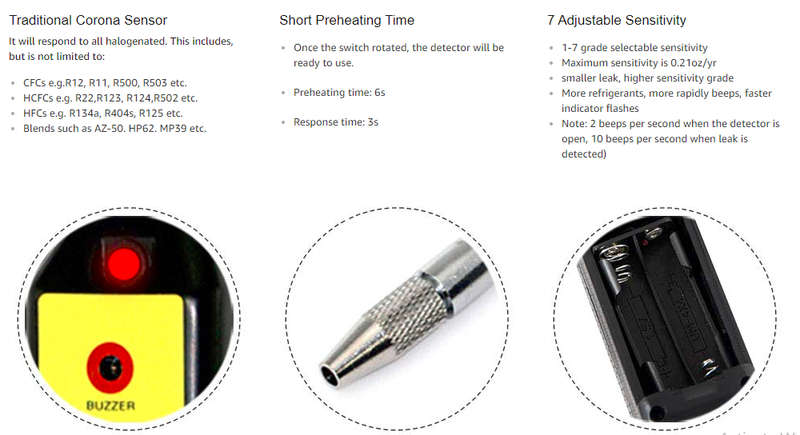

Traditional Corona Sensor
It will respond to all halogenated. This includes, but is not limited to:
CFCs e.g.R12, R11, R500, R503 etc.
HCFCs e.g. R22,R123, R124,R502 etc.
HFCs e.g. R134a, R404a, R125 etc.
Blends such as AZ-50. HP62. MP39 etc.
Short Preheating Time
Once the switch rotated, the detector will be ready to use.
Preheating time: 6s
Response time: 3s
7 Adjustable Sensitivity
1-7 Grade selectable sensitivity
Maximum sensitivity is 0.21oz/yr
Smaller leak, higher sensitivity grade
More refrigerants, more rapidly beeps, faster indicator flashes
Note: 2 beeps per second when the detector is open, 10 beeps per second when leak is detected)
Audible and Visual Alerts
LED light flash alarm
Buzzer alarm
Dual-battery indicators
Green-the battery voltage is normal, suitable for the job.
Orange-the battery voltage is close to the limit work, need to be replaced asap.

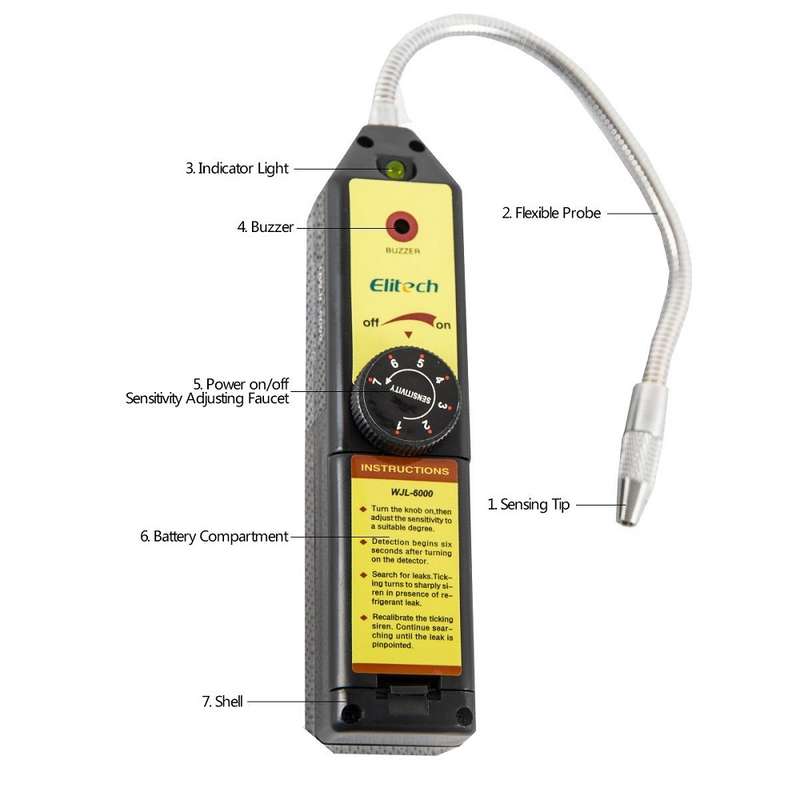

Flexible Probe
Around 7.87-inch flexible probe
Allows detection in difficult and hard-to-reach areas.

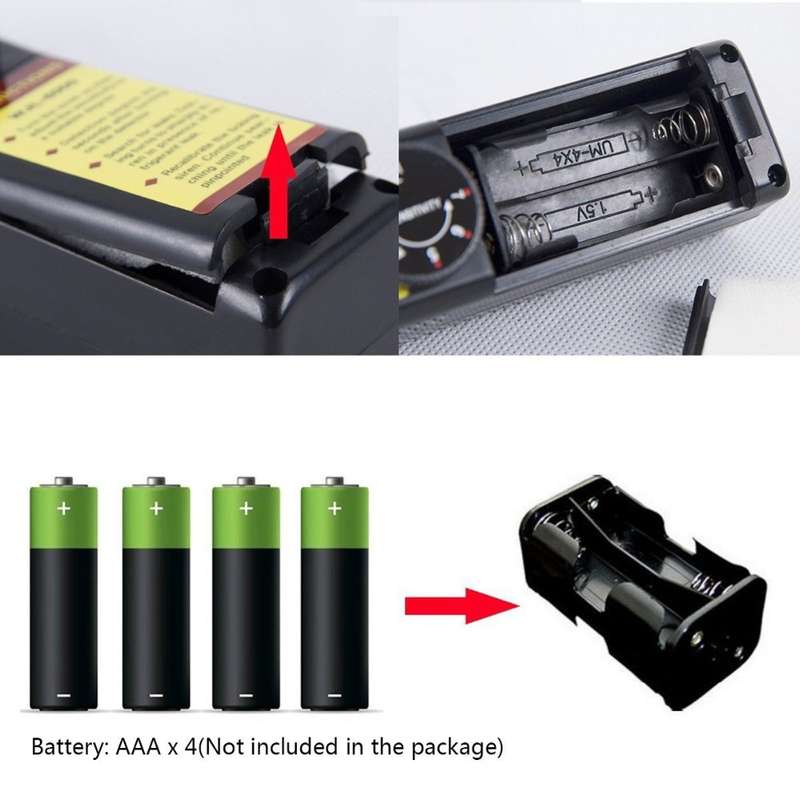

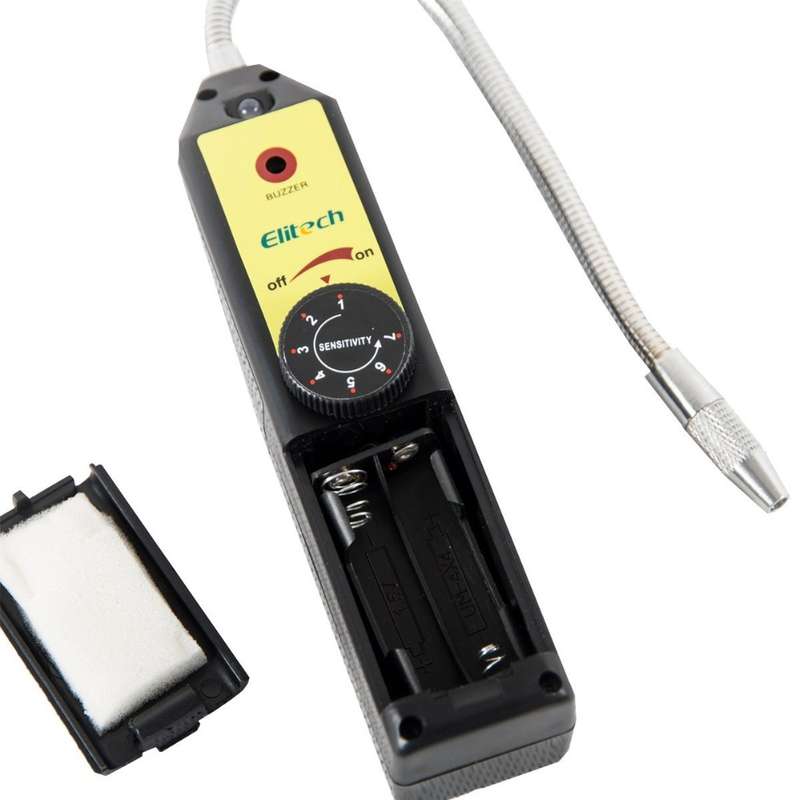

4AAA Batteries(NOT included)
Battery life: about 50 hours

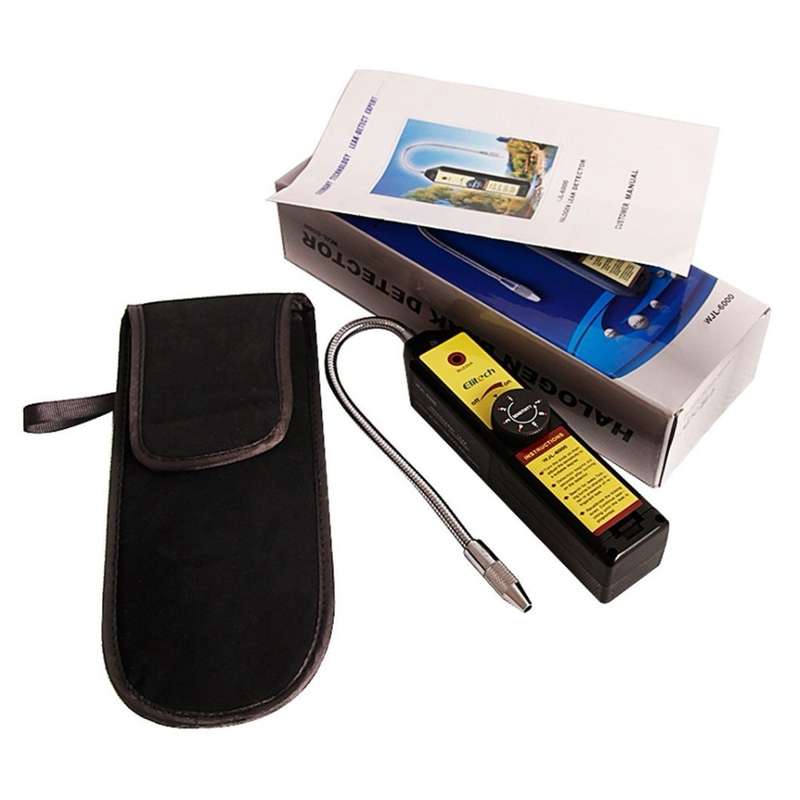

Package includes:
1 x Gas Leak Detector
Details Pictures:
