Describtion:
The is a diagnostic tool used with a PC or Pocket PC and powerful CARS Diagnostic software, making it a powerful and flexible tool for all
vehicle shops, fleet owners, vehicle testing, road service, police and armed forces.
This a quick and reliable diagnostic tool serving as a link between vehicle and computer. It works on both old and new vehicles.
Simply connect CDP+ to the diagnostic socket in the vehicle and it will communicate with the diagnostic software installed on your PC.
With CARS, you are able to perform brand specific diagnostics for cars and light vans from 1988 onwards. A total of 47 different brands.
With TRUCKS software package, you are able to perform brand specific diagnostics for light and heavy commercial vehicles, buses and
trailers from 1995 onwards.
A total of 37 different brands. The diagnostic program GENERIC is designed for the legislation based diagnostics, specially targeted for
emission related fault codes. GENERIC is included in CARS and TRUCKS packages.
Multiplexer function:
2xHS CAN (ISO 11898-2), SW CAN (SAE J2411), K/L (ISO 9141-2), VPW (J1850), PWM (J1850), RS485 (J1708),
TTL and (SPI, analog in, 5volt out)
FEATURES:
With the flight recorder function, you can record parameters in real time while you are driving a vehicle. During recording, you can, with a
press of a button, highlight the specific error so that you can investigate the detected error at a later time. is equipped with built-in memory
thus removing the need to bring a computer. Memory card not include in package.
MULTI COLOUR INDICATOR:
With the multi colour indicator on , you have full control of the diagnostic process. Different colors and sound communicates the status and
the placement of the indicator allows you to see it from a far. For example, if the indicator alternates between blue and green the is in
communication with the vehicle control unit.
CONNECTOR WITH LED:
To locate the diagnostic connector in the vehicle with ease, even if it is located in a dark and inaccessible place, there is a LED on the 16-pin
connector to help you along. The location and the design allows the light to function even when using the adaptor cable for vehicles without a
16-pin diagnostic socket.
VOLTAGE CHECK:
When is connected to the vehicle, the unit will check the battery voltage of the vehicle and automatically adjusts itself to the vehicle voltage
level of 12 or 24 volts. If the voltage gets too high or too low, will warn you with both sound and light and you will also be alerted through the
battery icon in our diagnostic software.
CHASSIS NUMBER VIN:
In our CARS software, we have a smart function that allows you to read out the chassis number from the vehicle that you would like to diagnose.
This ensures that the right model and year is selected automatically. In addition, engine code for vehicles, which are commonly available on the
markets, is also selected automatically.
ISS:
Intelligent System Scan (ISS) scans through all the systems in the vehicle and displays the fault codes that are stored in each system. This
saves time and you get a quick overview of the actual status of the entire vehicle. When the ISS is complete, you can then select a specific
control system to analyse the results further on.
ISI:
Intelligent System Identification (ISI) identifies and selects automatically the type of controller that is mounted in the vehicle. This ensures that
the diagnostic session is performed correctly with the correct parameters as required.
REPORT FUNCTION:
Under this function tab, you will be able to see the adaptations and adjustments that are possible for a specific vehicle without having the vehicle
near you. Together with the help texts as a guide, you can plan and be effective in your work; even under complex situations.
OBD-FUNCTIONS:
It is equipped with an unique multiplexer technology, which allows it to be used on all types of vehicles, regardless of voltage levels and
communication standards. For those vehicles that do not use the standard 16-pin connector, we offer a complete set of certified and customized
adapter cables and kits.
UNIVERSAL:
For most OBD functions, such as adjustments and programmings, there are detailed instructions and help texts to assist you in your diagnosis
work. You will find step by step information about prerequisites, preparation and implementation of various functions; making even the most complex
function simple to perform.
Supported language:
English, French

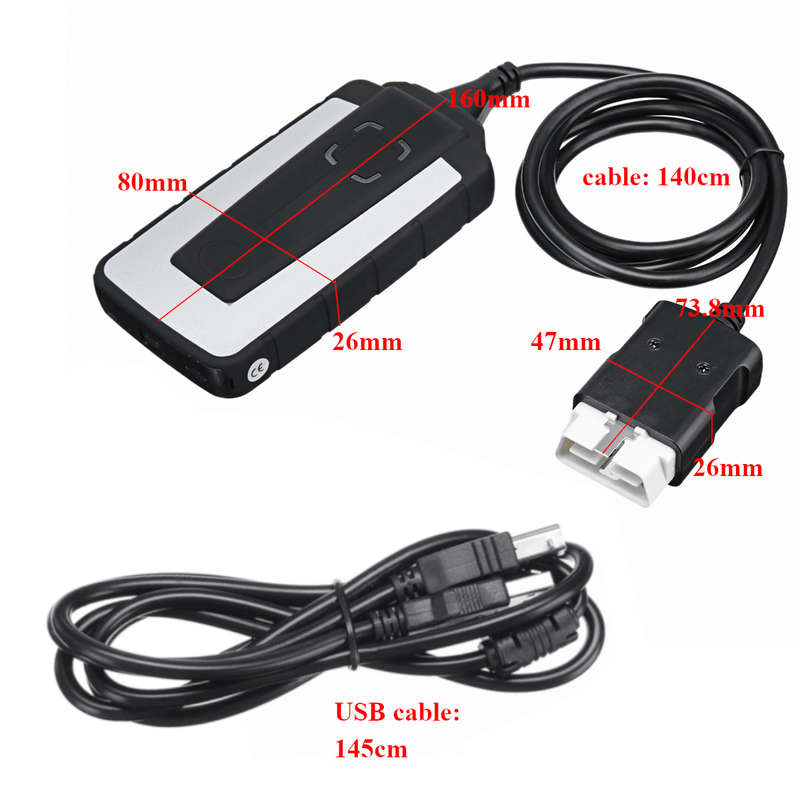

Package list:

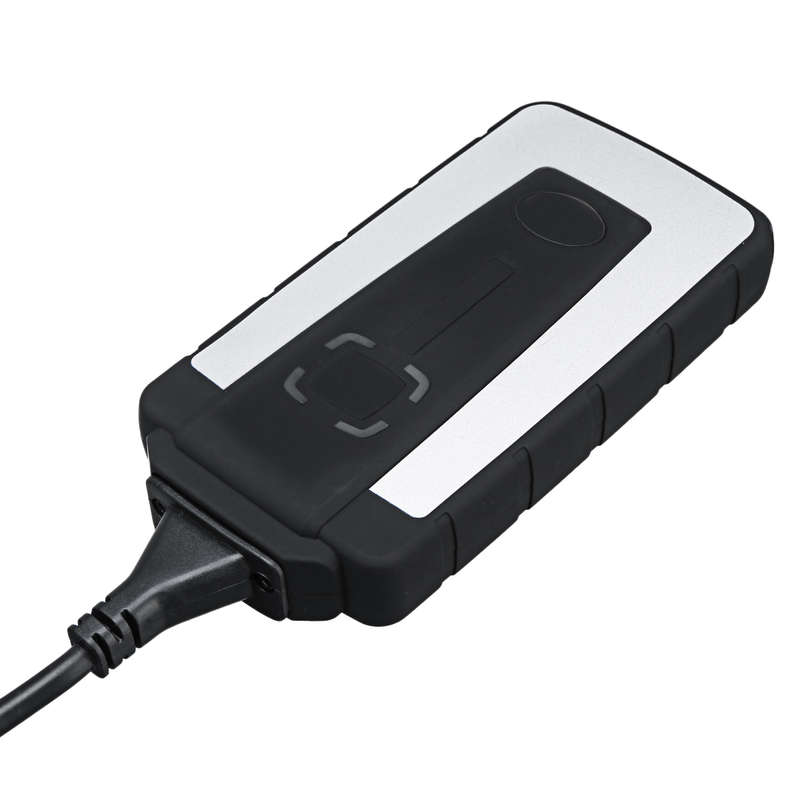

1 x Main Unit Interface with LED OBD Cable
1 x USB Cable (1.5 meter)
1 x CD (with software)
