WOYO PL005 Gear Shift Module Tester Kit Lift Knob Repair Diagnostic Tool For Range Rover Jaguar (Black Red)

Introduction:
The plastic fastener inside GSM For Landrover Jaguar will breaken and damage easily, which cause the GSM being stuck or unusable to use.

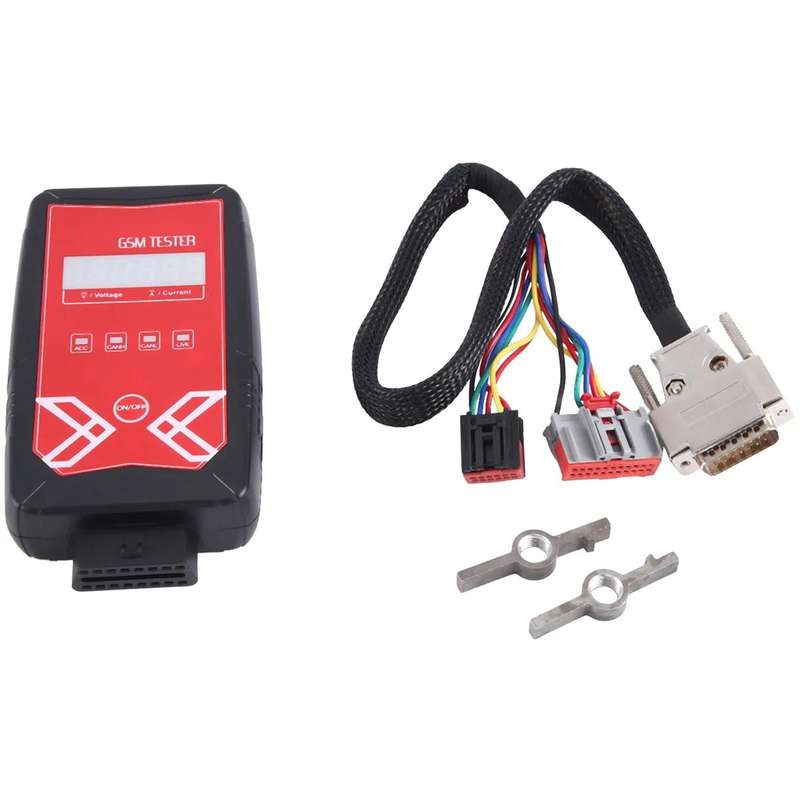

WOYO For Landrover Jaguar GSM tester kit includes metal fasteners for replacement.
After repair, use the tester to test GSM without assembling it to vehicle, Which avoids it unable to operate after assembling the vehicle, repeated disassembly, and waste time.

Salve the problems as:
1. Knob unable to rise
2. Knob unable to rotate

Common fault codes:
P176C -11 - Transmission Range Selector Lock Control Error

Function:
1. Control the GSM up and down when it does not assembly tovehicle
2. Identify vehicle model automatically, saving the query time
3. Simple operation, one button control of up and down, gear switching supported

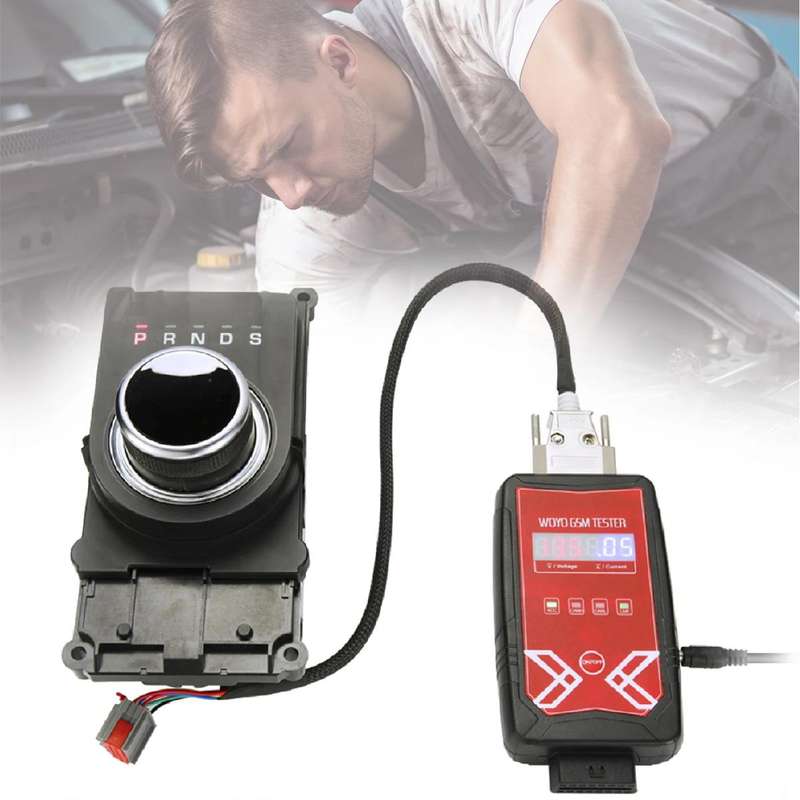

How to use the PL005?
1. Connect adapter cable at the top of tester
2. Connect to the Gear Shelf Module
3. Connect to the 12V 2A power supply on the right of tester
4. Press ON/OFF button to drive the GSM up and down


CAR4786BR
