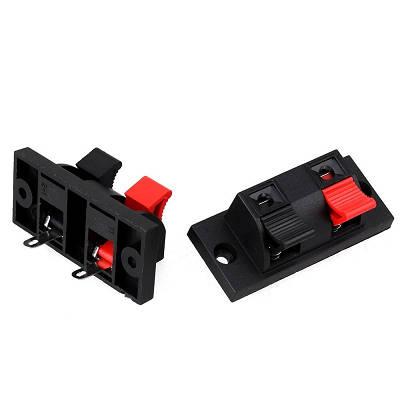

WP2 Single Row 2 Line Clip Audio LED Clamp
Single row 2 Pin 2 position speaker terminal plate, spring loaded, push release type speaker terminal board, red and black release tabs, for stable wire connection. There are two mounting holes on both end for quickly fixing the block to your project.
Type: Push Release Type
Rated Load: AC 50V 3A
Wire Range: AWG 24-16
Temperature: -40 to 55 C
Contact Resistance: <= 0.03 Ohm
Insulation Resistance: >= 100M Ohm
Withstand Voltage: AC 500V 1 Minute
Actuating Force: 1 Kgf
Colour Polarity Coding: Red/Black
Life: >10000 Times
Pin Quantity: 2 pin
Mounting Hole Center Distance : 35mm
Position: 2 Way (1 row)
Mounting Hole Dia: 3mm
Size: 44 x 20 x 15mm
