WS2811S LED Driver, SOIC Adapter, Headers and 5mm RGB LED

WS2811S LED DRIVER, SOIC ADAPTER, HEADERS & 5mm RGB LED

Product information
At the heart of this kit is the popular WS2811S IC in SOIC-8 format. The IC is fairly easy to solder to the included adapter board and can drive a single common-anode RGB LED or three single-color LEDs of your choice. The IC sinks approximately 18mA constant current and eliminates the use of voltage dropping resistors. The kit is extendable by connecting the output from one IC to the input of another. The IC interfaces to a microcontroller at either 400 kHz or 800 kHz. There are currently a number of Arduino libraries available on the Internet that supports this IC. A popular one is the Adafruit developed Neopixel library

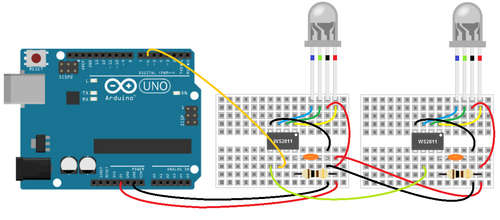

Typical daisy chained WS2811S connected to an Arduino Uno with the following components used:
2 x WS2811S
2 x 5mm RGB LEDS
2 x 100R Resistors
2 x 100nF Ceramic Capacitors

WS2811S Technical Specification
Click HERE for full technical details

5mm RGB LED Technical Specification

Package Includes
1 x WS2811S SOIC three-channel LED driver
1 x SOIC8 to DIP8 adapter board
2 x 4 pin SIL headers
1 x 5mm Common Anode RGB LED
