WS2812 12 Neopixels Ring [LEDs]

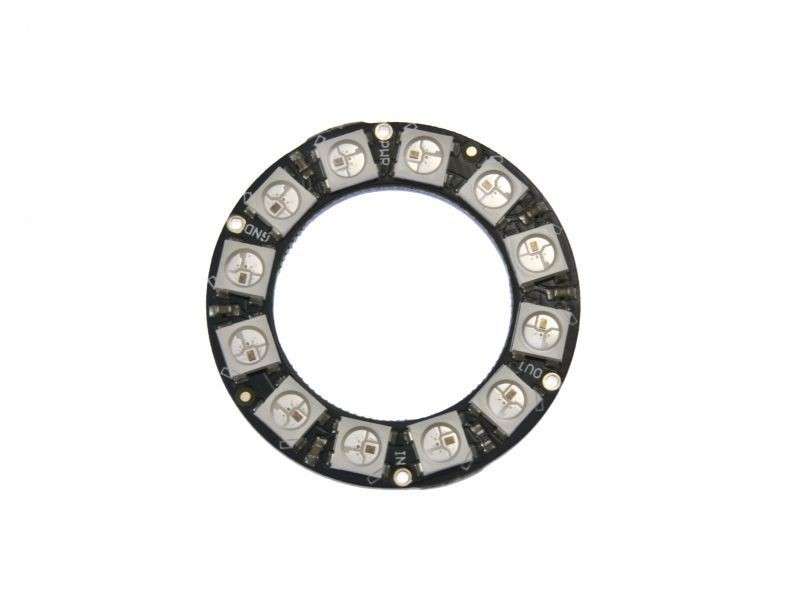

WS2812 12-LED NeoPixel Ring — Individually Addressable RGB LED Circle

Add vibrant, dynamic lighting effects to your electronics project with the WS2812 12-LED NeoPixel Ring. Featuring 12 ultra-bright RGB smart LEDs, this circular LED ring is perfect for creating colorful displays, light animations, clocks, wearables, and interactive projects. Each LED is individually addressable, meaning you can control the color and brightness of every single LED with just one microcontroller pin.

Built on the popular WS2812 LED driver chipset, this ring provides 18mA constant current per LED, ensuring consistent color output even if your input voltage fluctuates. The compact design requires no external resistors or drivers, making it ideal for compact enclosures and lightweight builds.

The NeoPixel Ring is chainable, allowing you to daisy-chain multiple rings together for larger displays or complex animations. With our Arduino NeoPixel library, you can easily program eye-catching lighting patterns using an AVR-based microcontroller such as an Arduino Uno, Mega, or Leonardo.

Note: Due to the high timing sensitivity of the WS2812 protocol, this ring requires a real-time microcontroller. It is not compatible with Linux-based boards (like Raspberry Pi) or interpreted platforms (such as Netduino or Basic Stamp).

Technical Specifications:

• LED Count: 12 RGB LEDs (WS2812)

• Outer Diameter: 50 mm

• Inner Diameter: 35 mm

• Operating Voltage: 5V DC

• Current Draw: ~18mA per LED (max brightness white)

• Data Protocol: One-wire, timing-based (WS2812 protocol)

• Microcontroller Compatibility: AVR (Arduino, etc.), PIC, mbed (8MHz)

• Chainable: Yes, connect data out to next ring's data in

• Form Factor: Circular, compact design

• Included: 1 x Assembled & tested 12-LED NeoPixel Ring

Applications:

• LED wearables and costumes

• Light-based art installations

• Clocks and dials

• Indicators and status lights

• Educational electronics kits

Take your projects full circle with this powerful and programmable 12-LED NeoPixel Ring!
