WS2812B 16 Led 30 x 30mm 5V 5050 RGB Addressable **LOCAL STOCK**

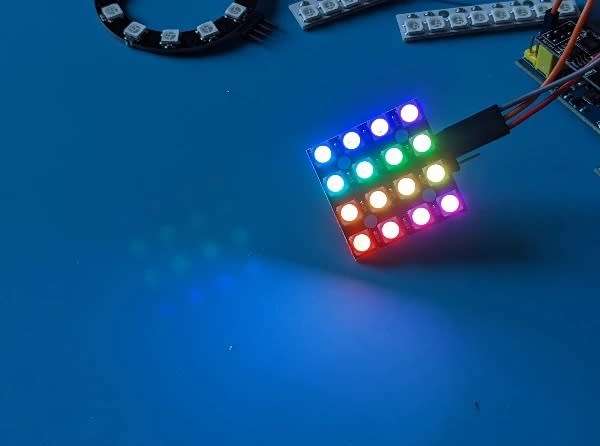

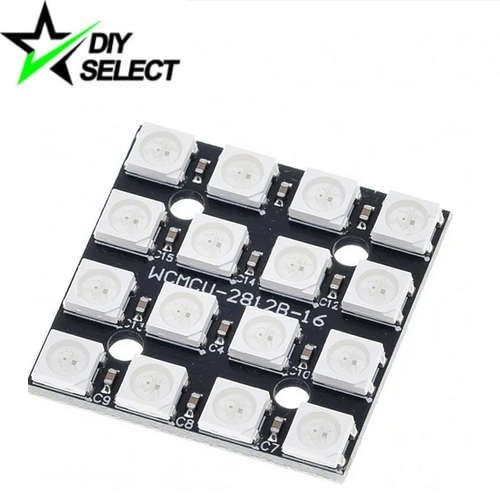

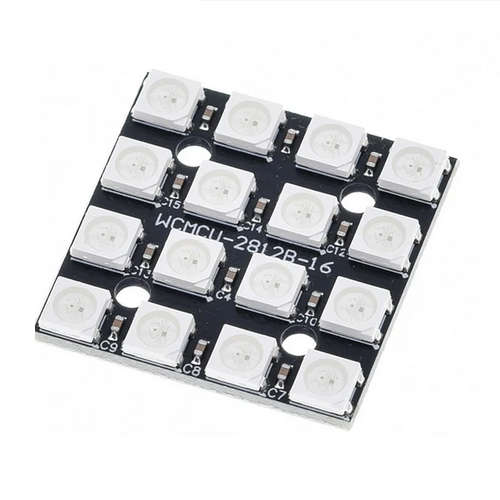

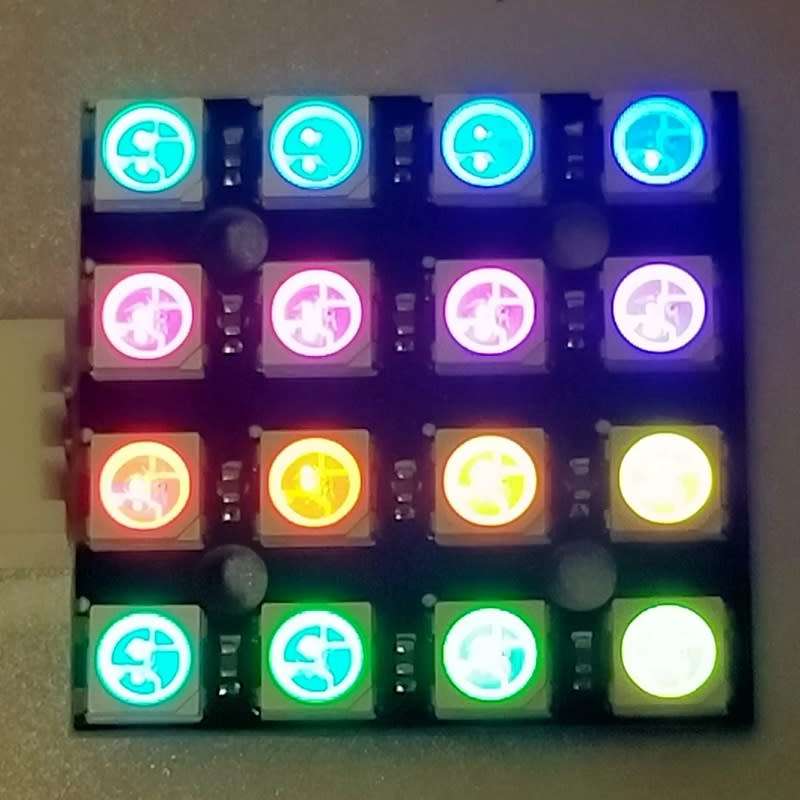

16 Led Module LED Pixel RGB WS2812B 5V 5050

Specifications:

Working Voltage: DC 5V
Communication Interface: Single Wire
PCB Colour: Black
Board Size: 30 x 30mm

Application:

1. Full-color module Lamp
2. LED decorative lighting, Indoor/outdoor LED video irregular screen.

General Description:

1. WS2812B is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent.

2. The data transfer protocol use single NZR communication mode. After the pixel power-on reset, the DIN  port receive data from controller, the first pixel collect initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel,the signal to reduce 24bit. pixel adopt auto reshaping transmit technology, making the pixel cascade number is not limited the signal transmission, only depend on the speed of signal transmission.

3. LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life and other advantages. The control chip integrated in LED above becoming more simple circuit, small volume, convenient installation.
