Name: WS2812B Led 5V 5050 RGB Addressable **LOCAL STOCK**
SKU: MOD160
Price: 6.00 ZAR
Availability: SoldOut
Rating: 5 (1 reviews)

WS2812B Led 5V 5050 RGB Addressable **LOCAL STOCK**

17 were available / new

R6.00

Shipping

R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Led Select - Cape Town29868

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Customer ratings:

1 ratings

Product code

MOD160

Bob Shop ID

507491587

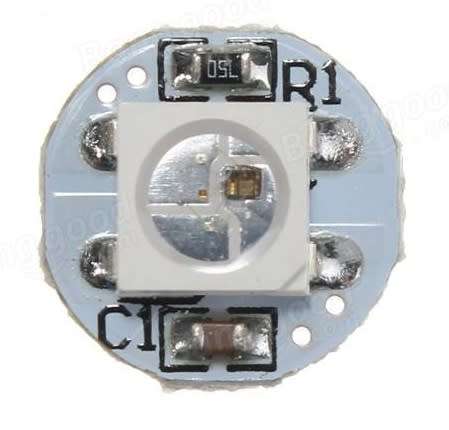

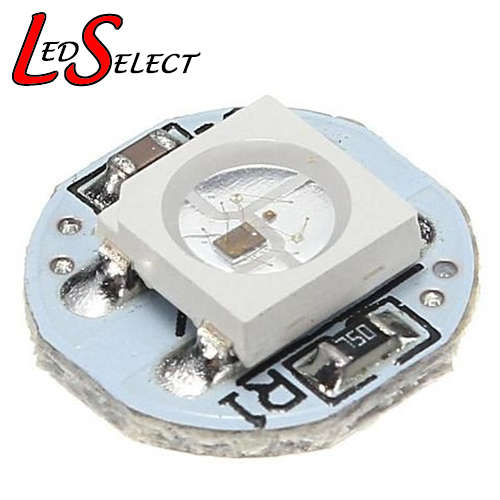

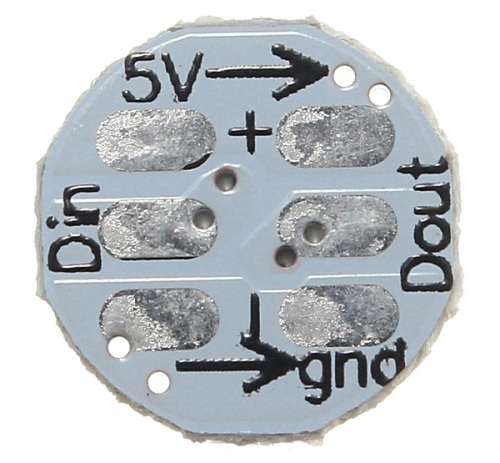

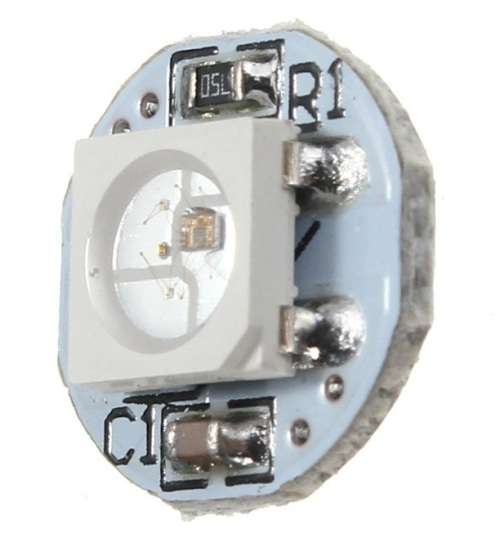

Led Module LED Pixel RGB WS2812B 5V 5050

Category: 2500312645 - LED Module

Application:

1. Full-color module, Full color soft lights a lamp strip.
2. LED decorative lighting, Indoor/outdoor LED video irregular screen.

Working Voltage: DC 5V
PCB Size: Width: 10mm, Thickness: 3mm

General Description:

1. WS2812B is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent.

2. The data transfer protocol use single NZR communication mode. After the pixel power-on reset, the DIN port receive data from controller, the first pixel collect initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel,the signal to reduce 24bit. pixel adopt auto resha-ping transmit technology, making the pixel cascade number is not limited the signal transmission, only depend on the speed of signal transmission.

3. LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life and other advantages. The control chip integrated in LED above becoming more simple circuit, small volume, convenient installation.
