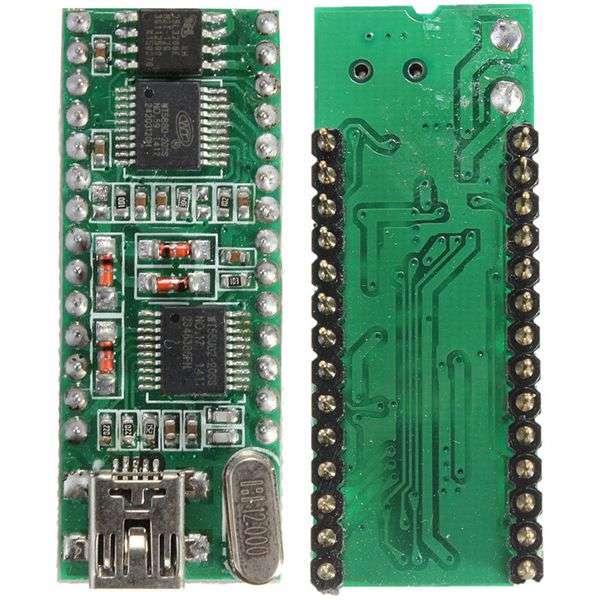

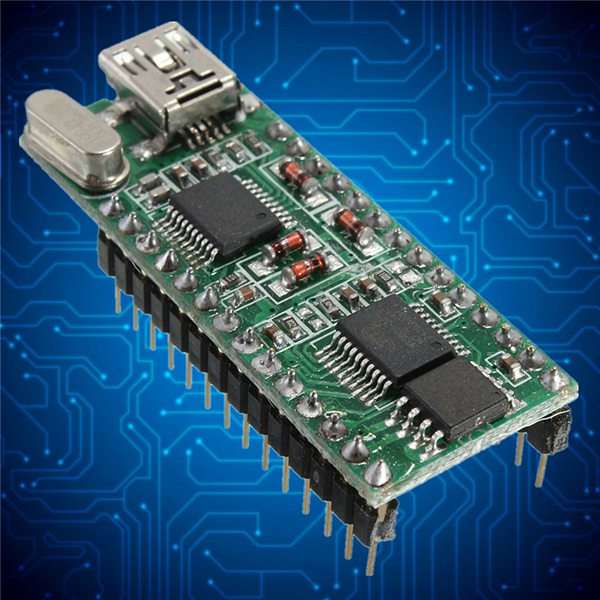

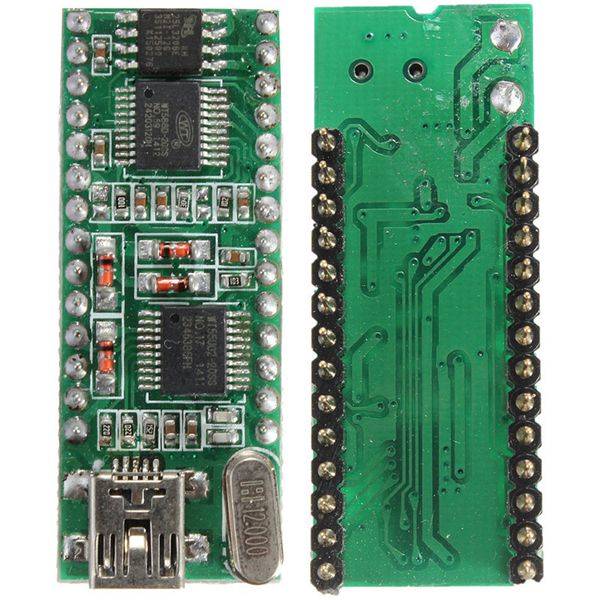

WT588D-U-32M Voice Sound Module 5V Mini USB interface Sound Module For Arduino
Features:

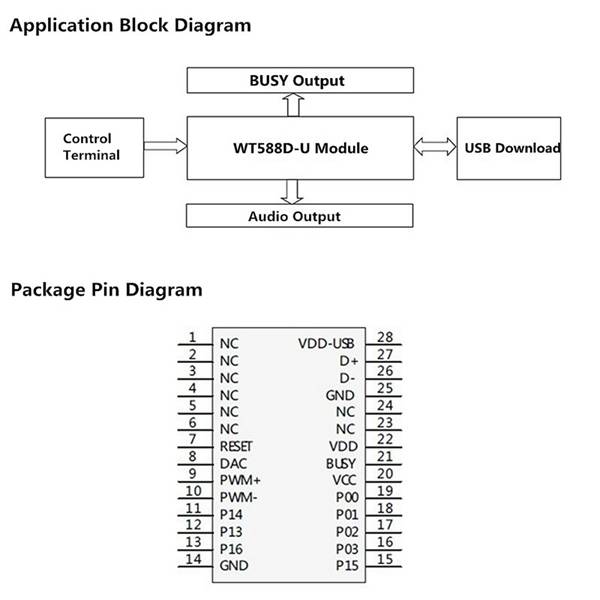

Package of 28 pins module, which can be replaced memory for gaining different lengths of storage time
Supports 2M bit~2M bit capacity SPI-Flash (Note: 1byte = 8bit)
WT588D-20SS voice used as a control core chip
Embedded human voice processor, feel very natural and sweet
Good audio quality output for 13Bit/ DA converter and 12Bit/PWM processing of audio
Support for loading 6K~22KHz audio sampling rate
PWM output can directly promote 0.5W/ 8Ω speakers and plenty of current
Support DAC/ PWM output
Support for loading WAV audio format

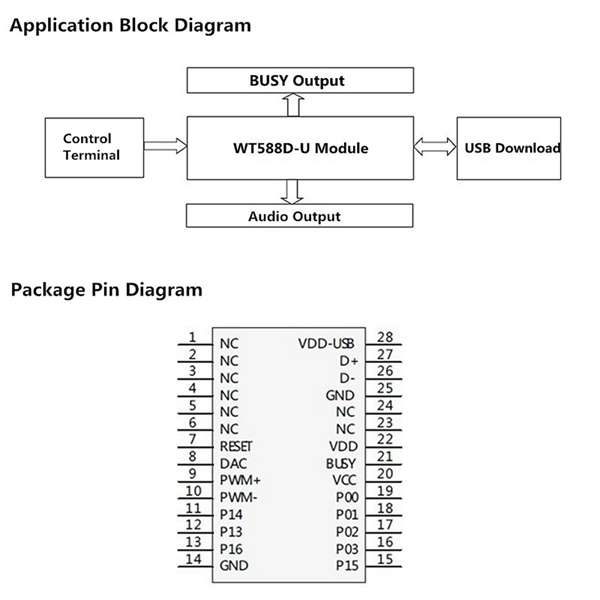

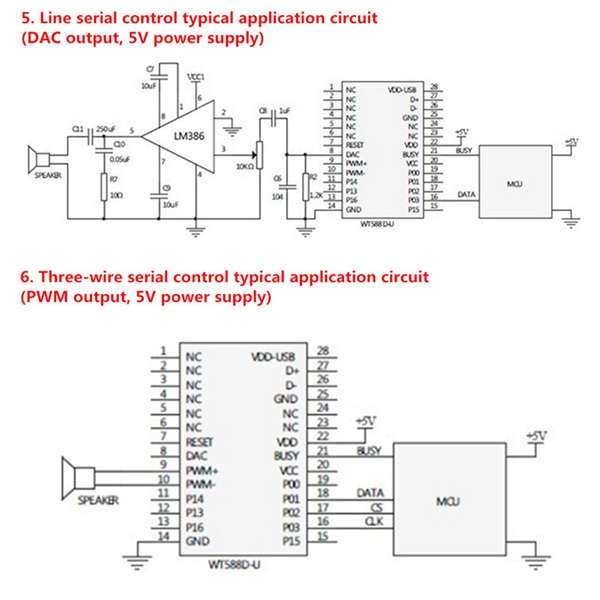

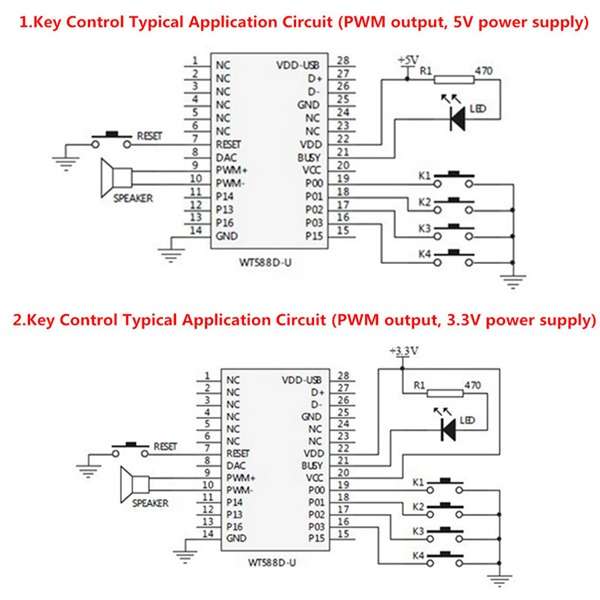

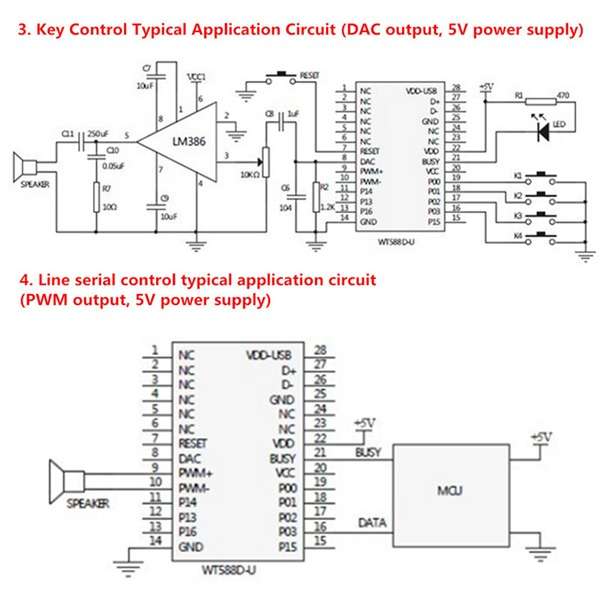

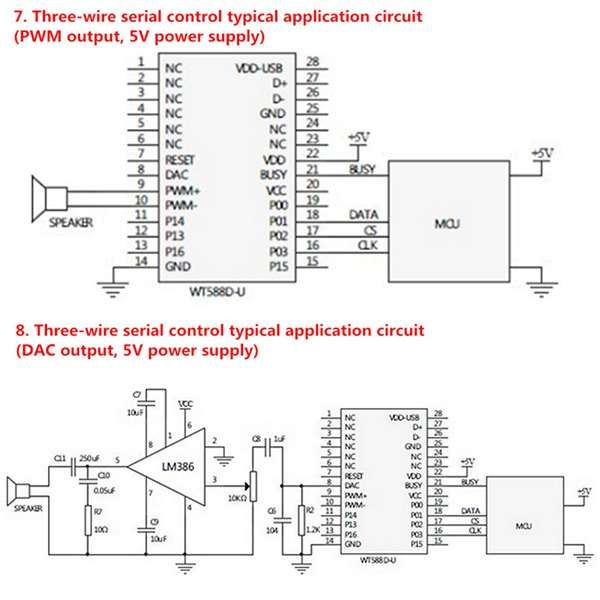

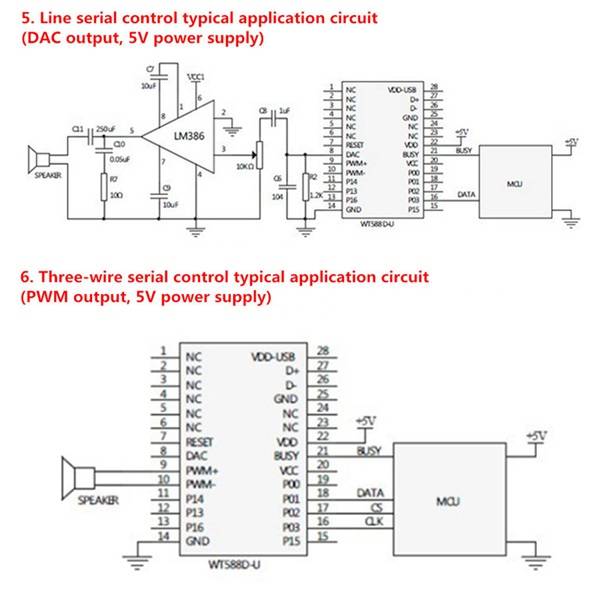

Support key control mode, one-wire serial control mode, three-wire serial control mode
A variety of IO trigger ways can be set to in button control mode
The way of BUSY signal output can be set in a random manner
Loading no more than 500 segments voice for editing
Address bit is controlled by 220 segments voice, but a single address bit just can load up to 128
Voice player to enter the sleep mode to stop immediately
It is simple interface and convenient because of using WT588D Voice Chip that benefited to exert its functions
A lot of operations can be finished in software. Such as setup control mode, inserting voice, compositing voice, calling voice, etc
Free to insert mute, mute time range 10ms~25min
Support online USB download/ offline USB download. Moreover, it also can download data to SPI-Flash even if WT588D-U are working
Operating Voltage: DC 2.8V - 5.5V
Dormant Current Less Than 10uA
Memory: 32M

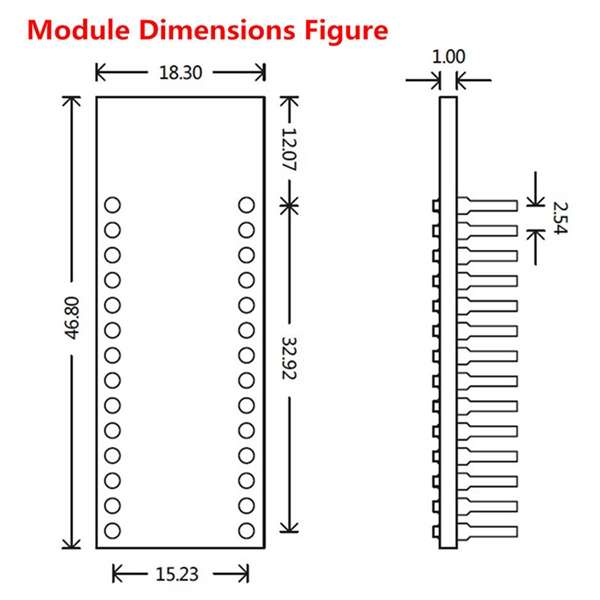

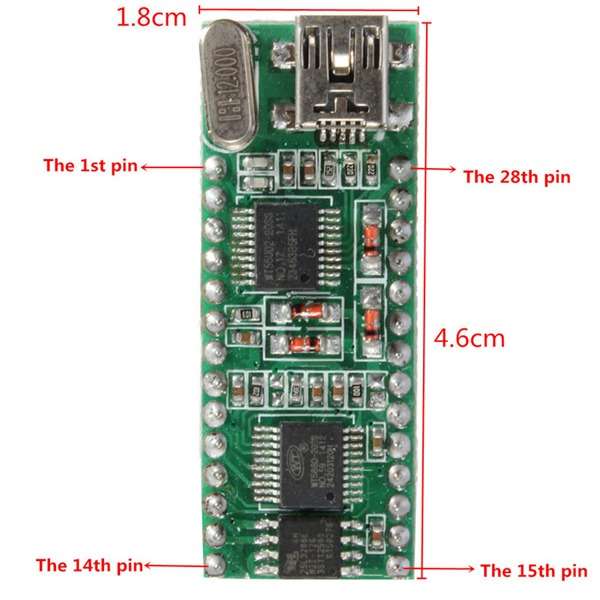

PCB Size: Approx. 4.6cm x 1.8cm x 1.5cm/ 1.81" x 0.71" x 0.59"
Package Included:
1 x WT588D-U 32M Voice Sound Module
