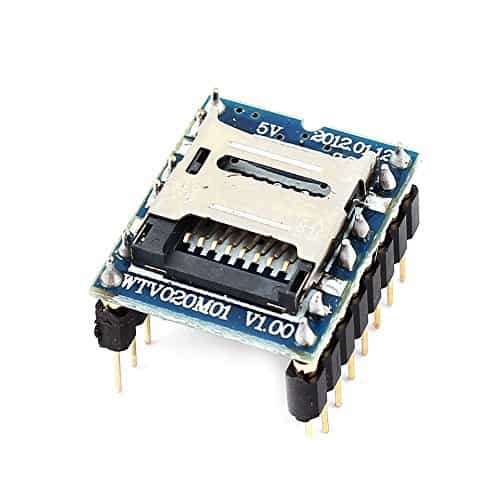

WTV020-SD Mini SD Card MP3 Sound Module

WTV020-SD module is a reusable mass storage voice module ,can plug a most capability of 1GB SD card memory and will load the WAV and AD4 audio .The voice module uses WTV020SD-20S because the core chip , with MP3 regulate mode, one to at least one key regulate mode, power on loop regulate mode and the 2-line serial regulate mode.

Features :

• Fortify plug-largest-capability of 1G SD card;
• Routinely establish audio files;
• Can load WAV audio at 6KHz ~ 16KHz sample rate;
• Can store as much as 512 Segment voice;
• Fortify for micro-processor and key regulate;
• With power-down save operation information serve as;
• Fortify aggregate of documents playback, together with the mute aggregate;
• Quiescent Current: 16uA (don't insert SD card)
• Fortify play 4 Bit ADPCM format file;
• Can load AD4 audio at 6KHz ~ 32KHz and 36KHz sampling rate ;
• 16bitDAC and PWM audio output;
• With WTV020-SD-20S, WTV020-SD-16P two module varieties;
• Can play any paragraph of the voice;
• May also be loaded voice with out software, simply want to place voice into the SD card right away;

Technical specifications

Operating voltage: DC2.5 ~ 3.6V;
Fortify plug-largest-capability of 1G SD card
Routinely establish audio files
Can load WAV audio at 6KHz ~ 16KHz sample rate
Operating voltage: DC2.5 ~ 3.6V
