• Made of high-quality Kevlar material, after 8000 wear tests

• Intelligent temperature control chip, three-speed adjustment

• Quick heat in 10 seconds, so that your hands are no longer cold in winter

• The heating sheet is fixed by sticking, which is convenient and fast

• IP67 waterproof level, the switch and handle cover can also work normally when soaked in water

• With glue, easy and fast installation

Specifications:

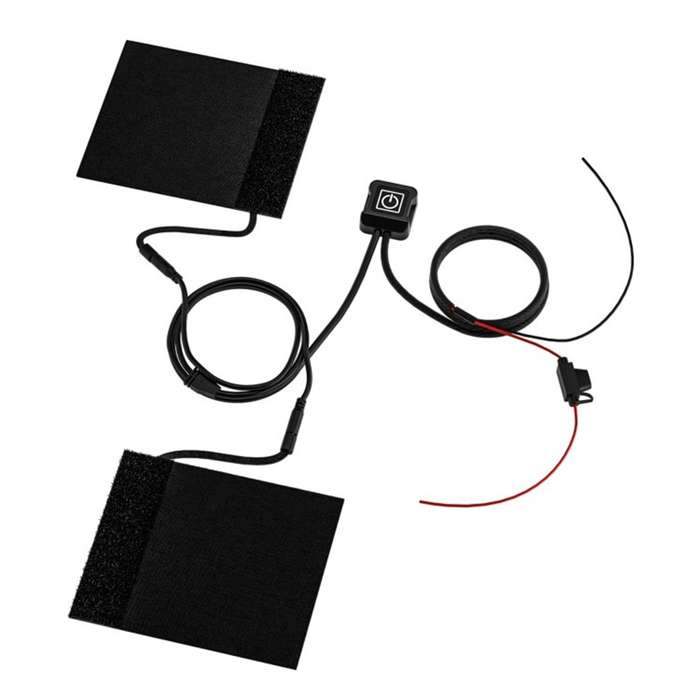

• Product: Heated Grips

• Model: CS-974A1

• Input voltage: DC 12V

• Material: composite fiber heating wire + Kevlar wear-resistant cloth, (L bracket) stainless steel

• Installation method: 3M glue paste fixed, L bracket mirror base fixed

• Cable length: 108cm (heating sheet to switch), 146cm (switch to electric door lock)

• Operating temperature: -30°C to +100°C

• Power/Temperature: High: 25W/60, Medium: 20W/50, Low: 15W/40

• Wiring method: red - positive, black - negative

• Power on: The red light, blue light and green light each flash once and then go out

• Standby: The red light is breathing and flashing, and the temperature reaches a certain temperature and automatically turns into a blue light

• Working status: the indicator light is always on (high-grade: red light, middle-grade: blue light, low-grade, green light)

• On/Off key: Click to switch the temperature

• Special attention: the positive and negative poles are reversed, the switch cannot be used, and the heating element directly heats up

Note:

• 1. Please select the appropriate gear according to the ambient temperature. Under low-temperature conditions, when the temperature of the electric heating handle cannot be sensed in time and accurately due to the stiffness and numbness of the hand, please use the low or medium gear first to prevent high-temperature burns.

• 2. This product is only suitable for motorcycles with 12V voltage. Please read the installation diagram carefully before installation. Wrong wiring will cause damage to the components.

• 3. This product can only be installed on the handlebars of the motorcycle and used with electricity. Before installation, you can use the battery to test whether the product is correctly energized.

• 4. It is strictly forbidden to work with electricity (empty burning) when not riding, in order to prevent the temperature of the electric handle grip from being too high and damage the original handlebar.

• 5. It is recommended to connect the motorcycle electric door lock wire for wiring, the red wire of the product is connected to the positive output wire of the electric door lock, and the black wire of the product is grounded or connected to any negative electrode.
