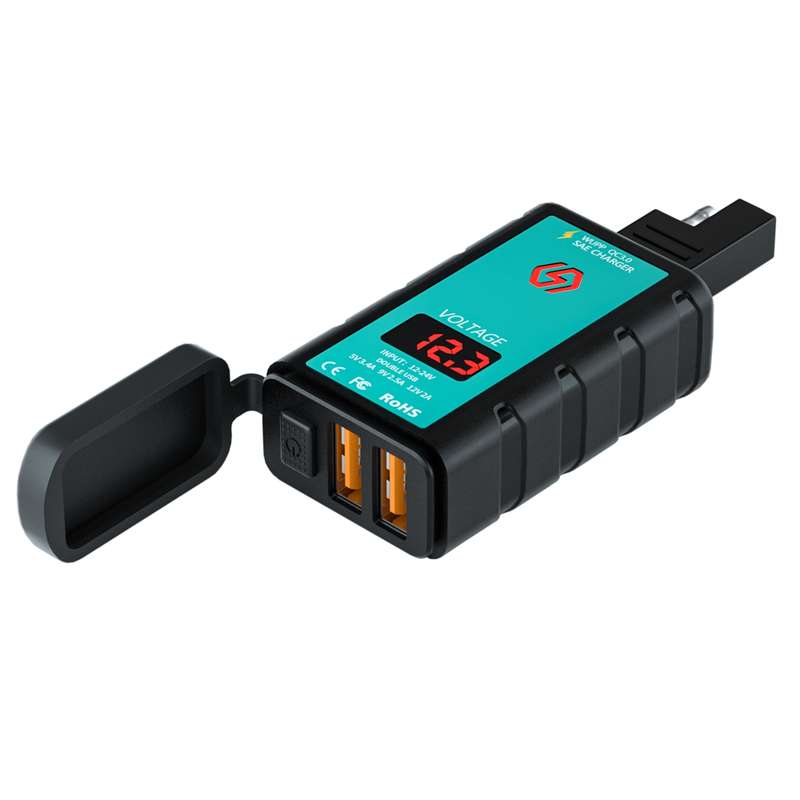

WUPP ZH-1422A1 DC12-24V Motorcycle Square Dual USB Fast Charging Charger with Switch + Voltmeter + Integrated SAE Socket
1. Product material: ABS, high and low temperature resistant flame retardant environmental protection material
2. Input voltage: DC12-24V
3. Output voltage: USB port output 5V3.4A / 9V2.5A / 12V2A
4. Monitorable voltage range: 6-30V
5. Installation method: handlebar installation, screw fixation (two installation methods)
6. Product use: It can be used to power most car-mounted products such as mobile phones, tablets, IPAD, navigation and GPS.
7. Scope of application: It can be installed on DC12-24V vehicles, motorcycles, ATVs, SUVs, boats and other transportation tools.

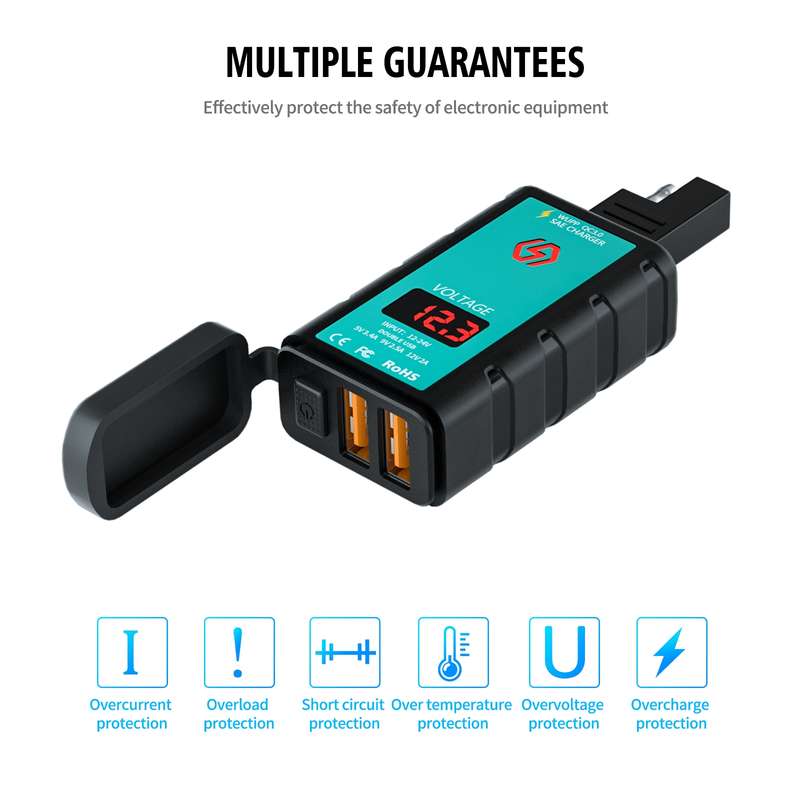

8. Multiple protection functions: input over-voltage and under-voltage protection; output over-current, over-voltage, under-voltage, and short-circuit protection; overload protection; reverse connection protection; chip internal high-temperature protection
9. Product size: length 66.6mm, width 38mm, height 21.3mm

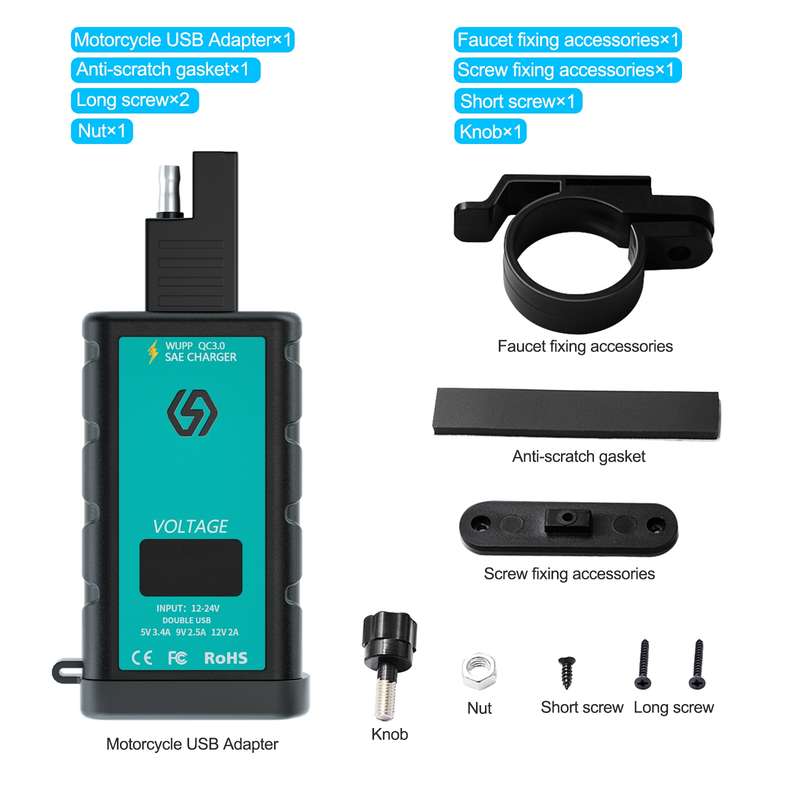

10. Product accessories: handlebar mounting bracket*1, screw mounting bracket*1, large screw*2, small screw*1, handlebar fixing screw*1, non-slip gasket*1
Performance advantages:

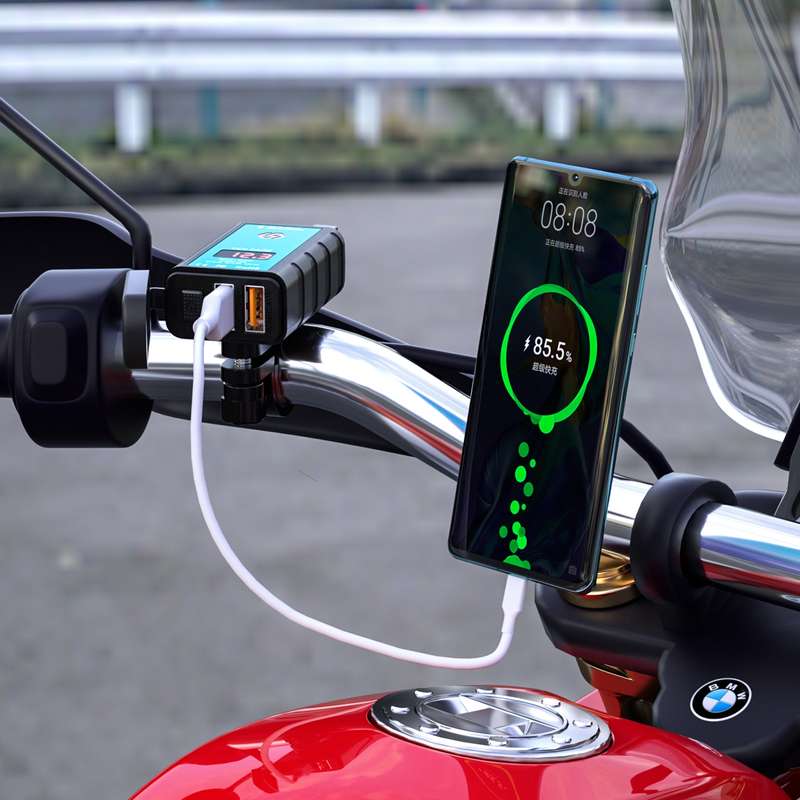

1. Two installation methods, handlebar installation and screw installation, can meet the installation and use of most models on the market
2. The product design adopts an integrated SAE interface, which can be directly plugged with the SAE interface of the original car, making the installation more convenient

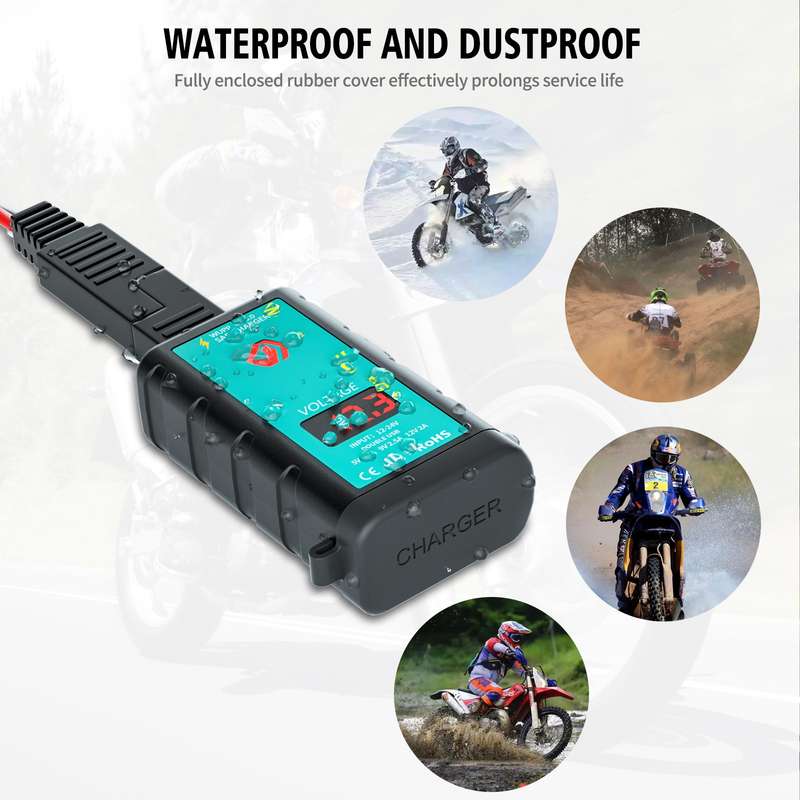

3. Comes with a waterproof and dustproof cover, IP66 waterproof rating, one waterproof cover, rain or shine

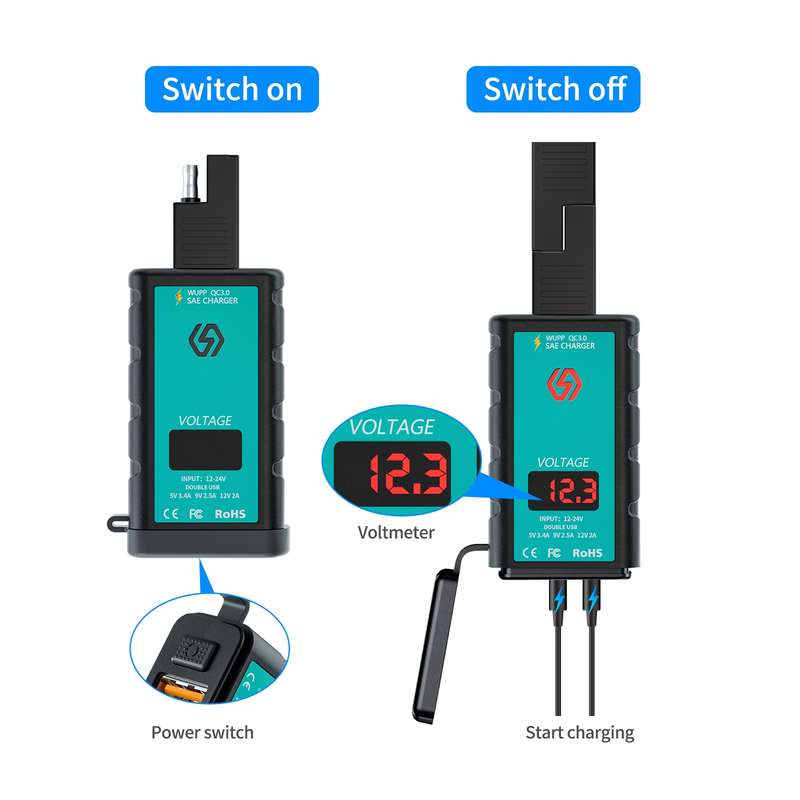

5. The product has a voltmeter display, which can monitor the voltage at any time. The body adopts high-end logo lighting, which looks beautiful and generous.
6. Can be installed on DC12-24V vehicles, motorcycles, ATVs, SUVs, boats and other transportation tools, with a wide installation range; built-in power MOS, can provide 20W output power, and can automatically adjust the output voltage according to the fast charging protocol And current to adapt to the charging power of each mobile phone
7. The product has dual USB super fast charging ports, supports 5V 3.4A/ 9V 2.5A / 12V 2A three output schemes, and supports fast charging protocols: DCP (for Apple and BC1.2), Qualcomm QC2. 0/QC3.0, for Huawei fast charge protocol FCP and high voltage SCP, for Samsung fast charge protocol AFC (MAX 12V), MTK PE+1.1 and MTK PE+2.0, it can automatically identify the output supported by the device Fast charge protocol (if the phone itself does not support fast charge, the charger does not support fast charge protocol)
