WUPP ZH-983F2 Motorcycle ATV Modified Intelligent Electric Heating Hand Cover Heated Grip with Th...

1. Material: nitrile
2. Suitable for handlebar diameter: 22mm
3. Input voltage: DC12V
4. Product power: red light 35W, blue light 25W, green light 17W
5. Handle temperature: low temperature 40 degrees Celsius, medium temperature 50 degrees Celsius, high temperature 60 degrees Celsius
6. Switch type: multi-stage adjustable temperature control switch
7. Applicable models: 12V ATV (ATV) with a handle diameter of 22mm

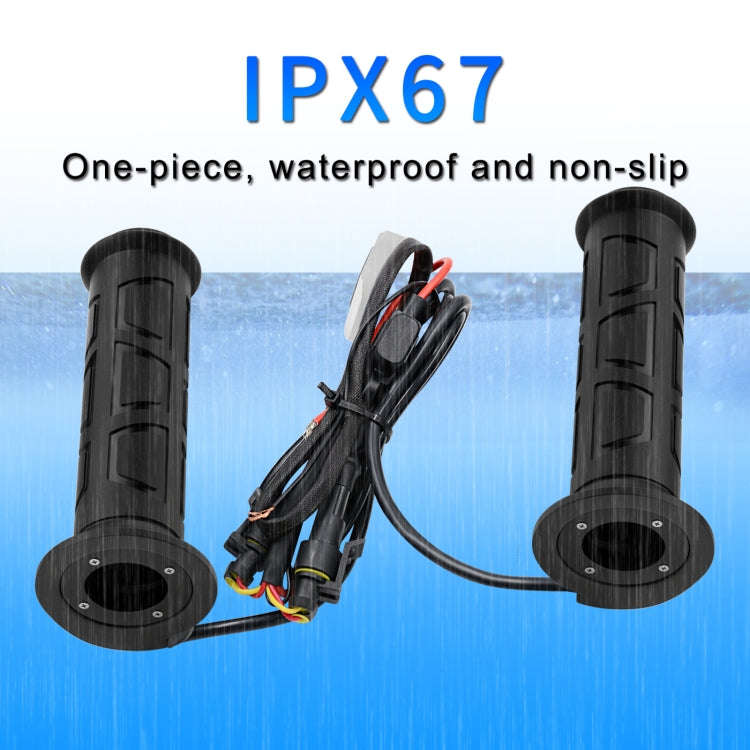

8. Adopt one-piece molding design to prevent rain and dust from entering the internal corrosion parts, longer service life and safer
9. The product switch has a built-in intelligent temperature control chip, three-speed adjustable temperature, intelligent temperature control is safer, aluminum alloy material, more durable, beautiful and generous in appearance
10. The handle adopts a sealable and openable design, which does not affect the installation of the handle outside the handle, the handle is blocked, the handlebar lamp and other decorative accessories, which are more beautiful and more convenient and quick to install.

Instructions:
1. Power on: red light, blue light and green light each flash once and then go out
2. Working status: indicator light is always on (high-end: red light is always on, mid-range: blue light is always on, low-end, green light is always on)
3. Long press the power button for 3 seconds: power off
4. Click the power button: switch gears

Installation notes:
1. Remove the original handlebar
2. Use the left hand to moisten the inner hole with soapy water, and the twist should not be too large during installation

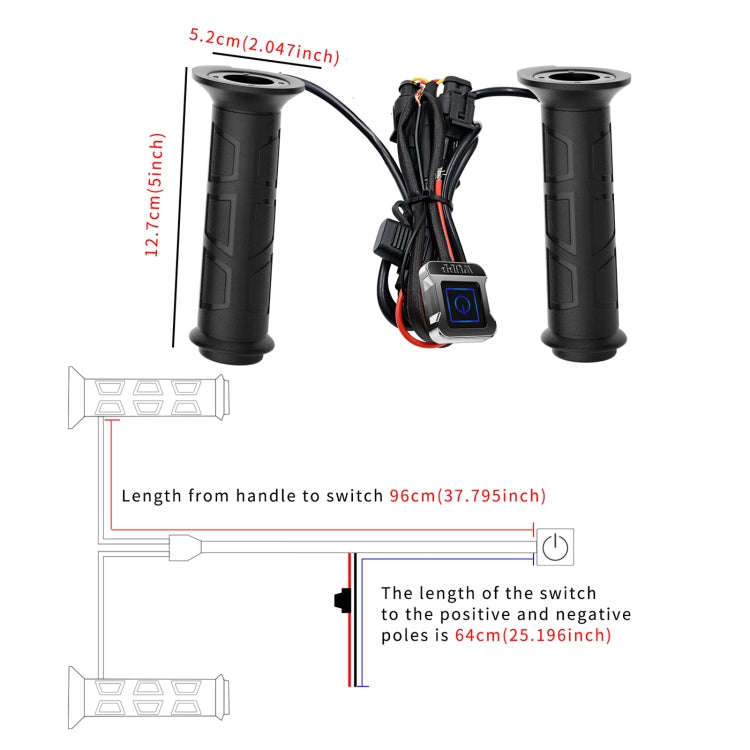

3. The power cord, the red wire is connected to the positive pole, and the black wire is connected to the negative pole, please confirm and then connect it, do not reverse the connection

Precautions:
1. When installing the left handle, do not twist the handle too much. Excessive twisting will cause the heating wire to shift.
2. When wiring, connect the red to the positive pole and the black to the negative pole. If it is connected reversely, the switch will burn out, but the handle will heat up, so when wiring, please make sure to connect the positive and negative terminals to prevent burning.
