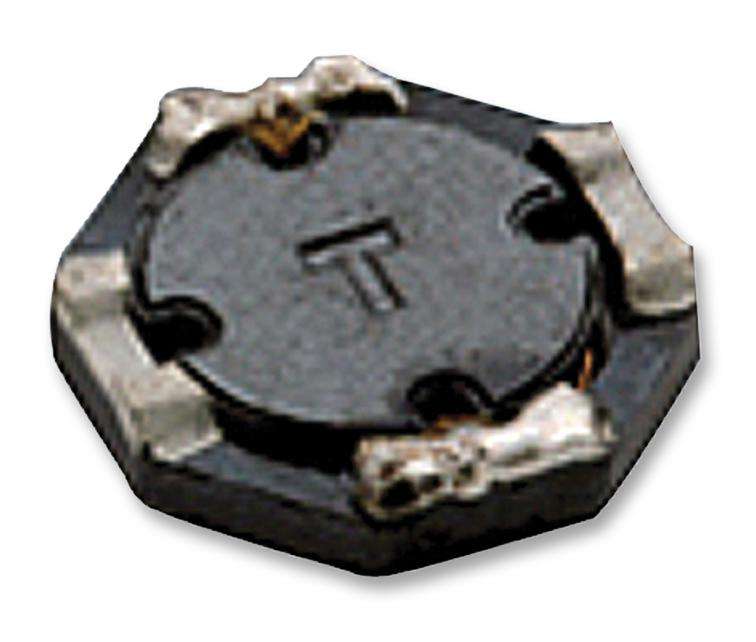

Wurth Elektronik (744029004) Power Inductor (SMD), 4.7 µH, 1 A, Shielded

Power Inductor (SMD), 4.7 µH, 1 A, Shielded, 800 mA, WE-TPC, 2.8mm x 2.8mm x1.35mmProduct InformationInductance: 4.7µHRMS Current (Irms): 1AInductor Construction: ShieldedSaturation Current (Isat): 800mAProduct Range: WE-TPCPower Inductor Case: 2.8mm x 2.8mm x 1.35mmDC Resistance Max: 0.2ohmInductance Tolerance: ± 30%Product OverviewWurth Electronics WE-TPC series are SMD shielded tiny power inductors with a 4pad design which provides great mechanical strength. Compared to the unshieldedtypes, the WE-TPC series reduces stray field due to the magnetic shielding.Extremely flat power inductorHigh current capabilityMagnetically shielded which results in a low leakage fieldRecommended solder profile: ReflowOperating temperature: -40°C to +125°C
