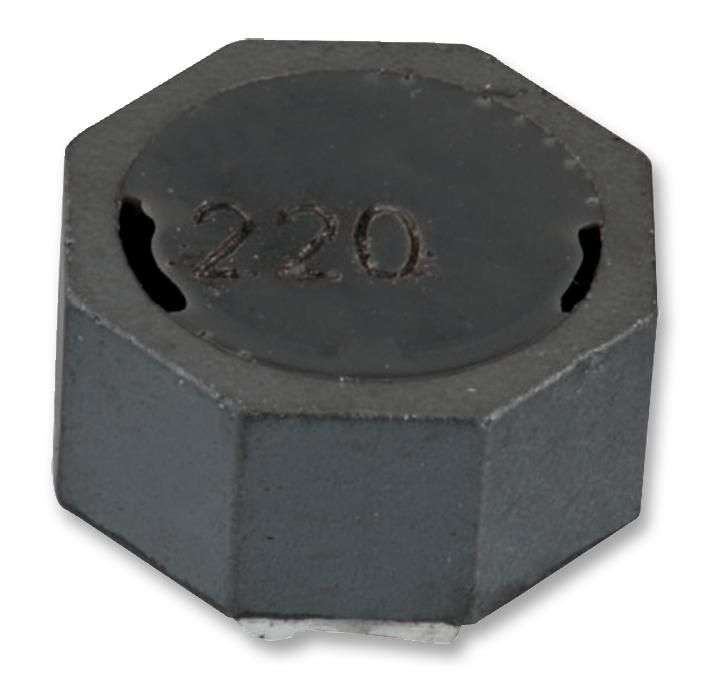

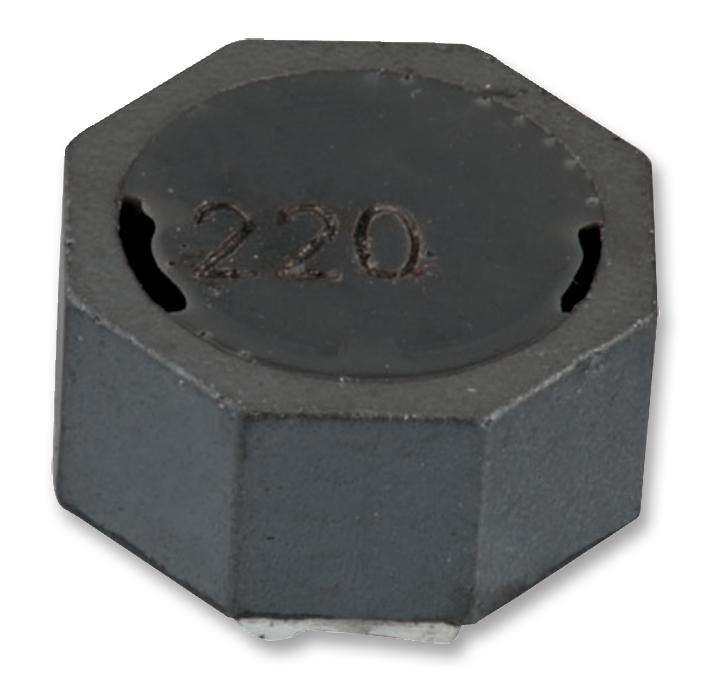

Wurth Elektronik (744071220) Power Inductor (SMD), 22 µH, 2.3 A, Shielded

Power Inductor (SMD), 22 µH, 2.3 A, Shielded, 1.9 A, WE-TPC, 8mm x 8mm x 4.3mmProduct InformationInductance: 22µHRMS Current (Irms): 2.3AInductor Construction: ShieldedSaturation Current (Isat): 1.9AProduct Range: WE-TPCPower Inductor Case: 8mm x 8mm x 4.3mmDC Resistance Max: 0.08ohmInductance Tolerance: ± 30%Product OverviewWurth Electronics WE-TPC series are SMD shielded tiny power inductors with a 4pad design which provides great mechanical strength. Compared to the unshieldedtypes, the WE-TPC series reduces stray field due to the magnetic shielding.Extremely flat power inductorHigh current capabilityMagnetically shielded which results in a low leakage fieldRecommended solder profile: ReflowOperating temperature: -40°C to +125°C
