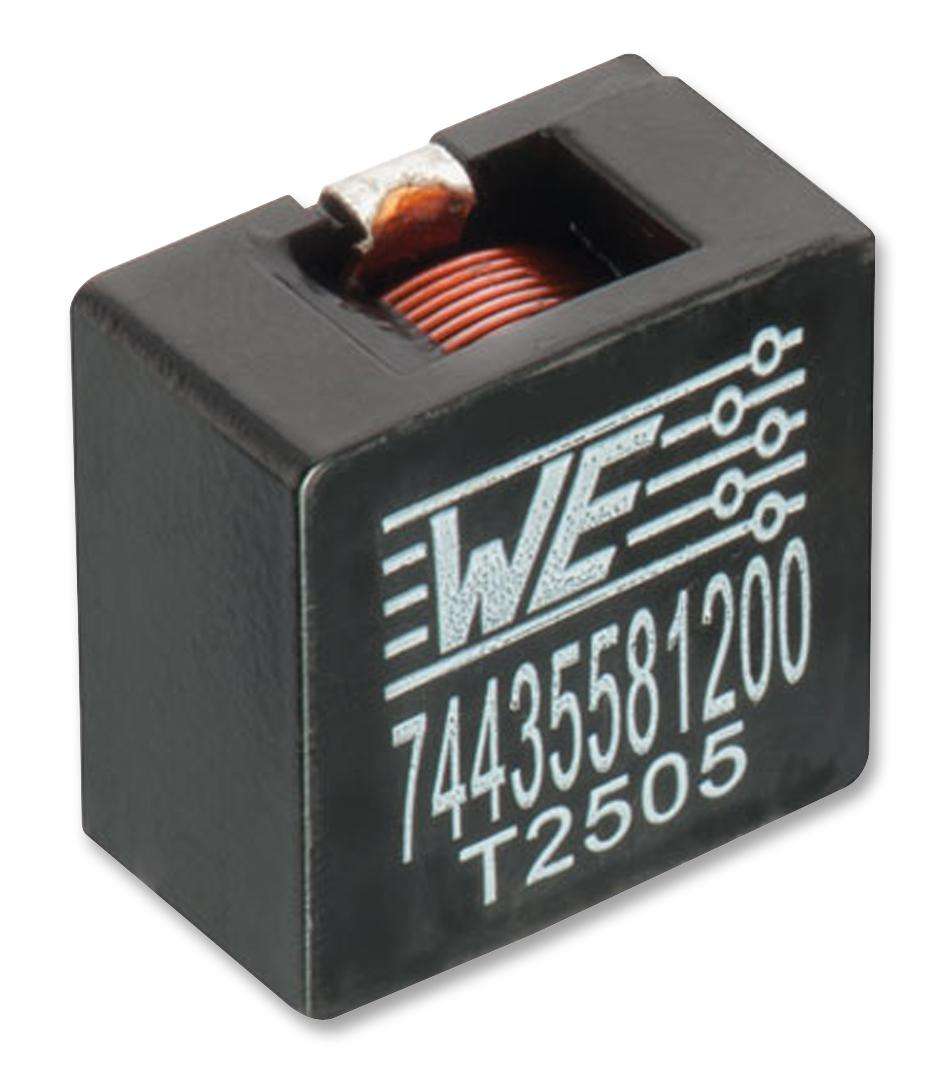

Wurth Elektronik (74435581000) Power Inductor (SMD), 10 µH, 21 A, Shielded

Power Inductor (SMD), 10 µH, 21 A, Shielded, 26 A, WE-HCI, 22.5mm x 22mm x 12mmProduct InformationInductance: 10µHRMS Current (Irms): 21AInductor Construction: ShieldedSaturation Current (Isat): 26AProduct Range: WE-HCIPower Inductor Case: 22.5mm x 22mm x 12mmDC Resistance Max: 0.0034ohmInductance Tolerance: ± 20%Product OverviewWurth Electronics WE-HCI series is known within the electronics market to be thetop of the line, high-current inductor family. Due to increased demand forsmaller packages in even higher currents, Wurth Electronics offers numeroussizes ranging from 5x5x4 mm up to 22x22x12 mm, thus allowing you to find theoptimum size for your circuit design. The high-current flat wire inductors offerthe industry's lowest DCRs for maximum performance in your DC/DC converter.Magnetically shieldedFlat wire coil for low losses at high frequencyLow stray fieldOperating temperature: -40°C to +125°C / +150°C / +155°CRecommended solder profile: Reflow
