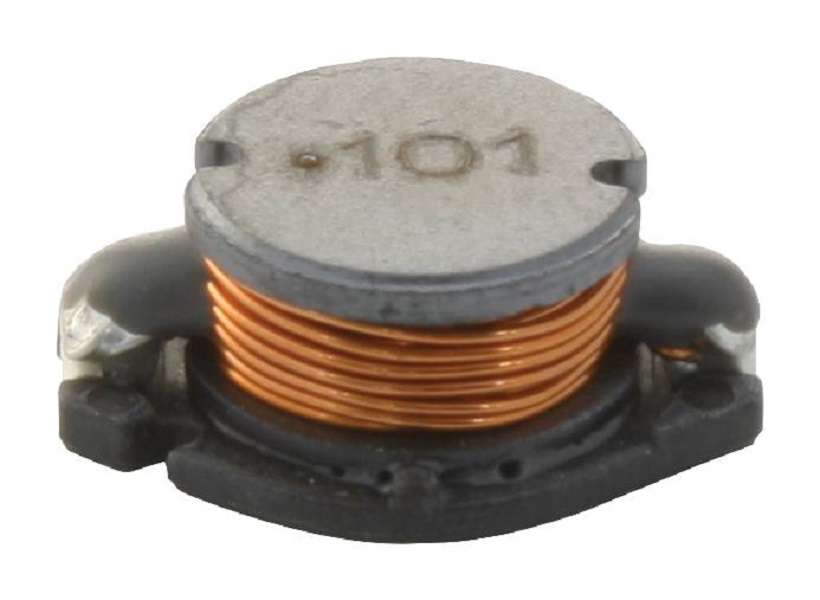

Wurth Elektronik (7445620) Power Inductor (SMD), 100 µH, 1.4 A, Unshielded

Power Inductor (SMD), 100 µH, 1.4 A, Unshielded, 1.5 A, WE-PD4, 12.7mm x 10mm x5mmProduct InformationInductance: 100µHRMS Current (Irms): 1.4AInductor Construction: UnshieldedSaturation Current (Isat): 1.5AProduct Range: WE-PD4Power Inductor Case: 12.7mm x 10mm x 5mmDC Resistance Max: 0.33ohmInductance Tolerance: ± 10%Product OverviewThe 7445620 is a surface mount unshielded Power Inductor with low-loss ferritecore. This compact size inductor supports 8MHz self-resonant frequency and it isrecommended that the temperature of the part does not exceed 125°C under worstcase operating conditions.3°C/s Maximum ramp-up rate6°C/s Maximum ramp-down rateReflow solder profile (recommended)
