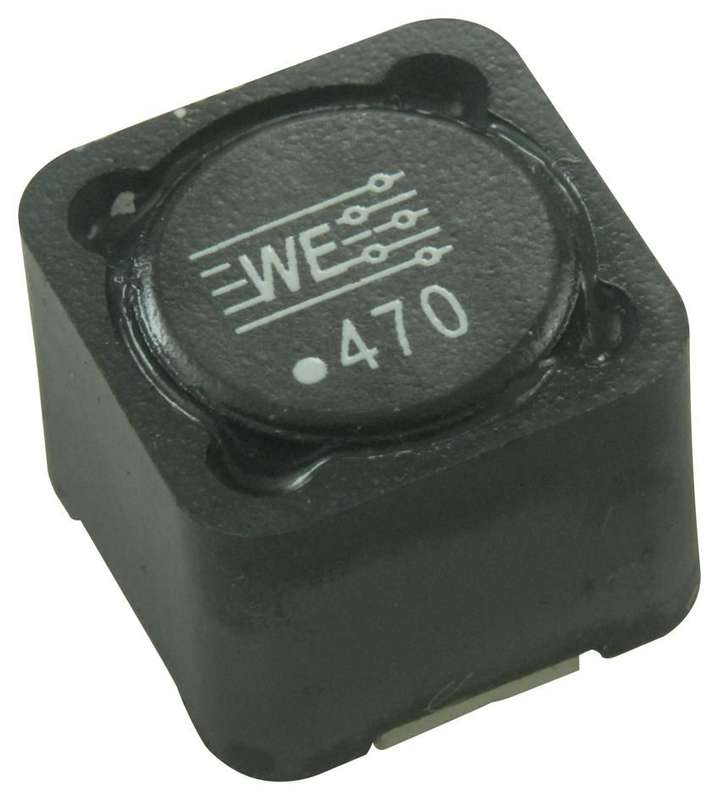

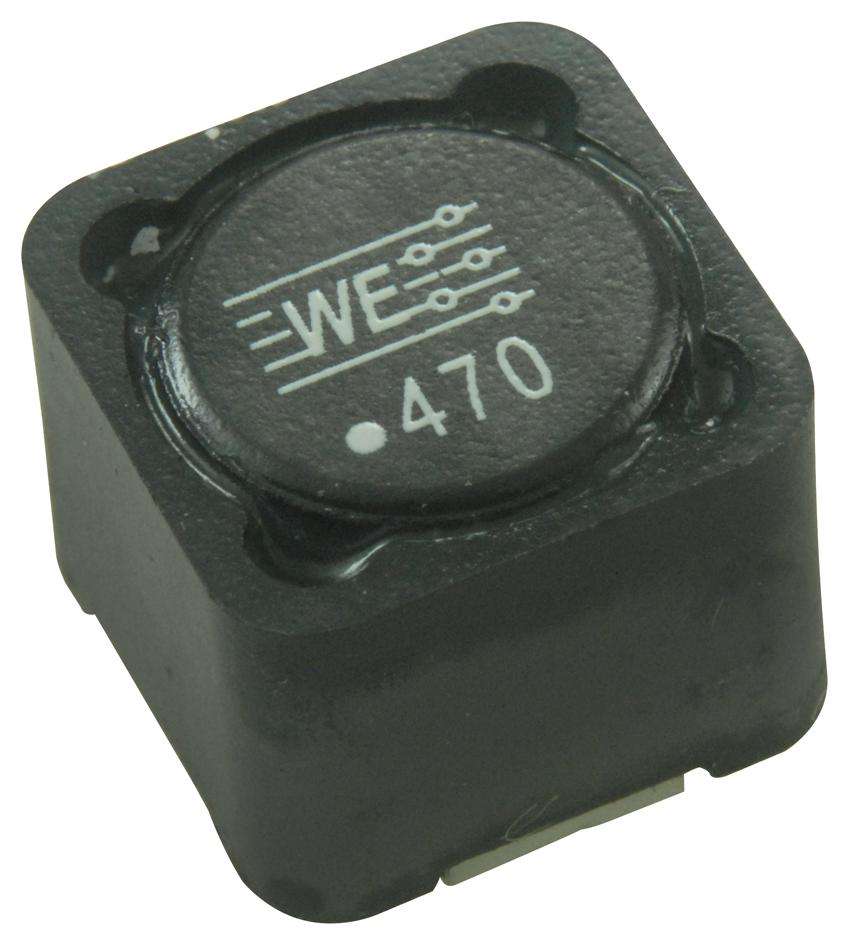

Wurth Elektronik (7447709470) Power Inductor (SMD), 47 µH, 3.8 A, Shielded

Power Inductor (SMD), 47 µH, 3.8 A, Shielded, 4.5 A, WE-PD, 12mm x 12mm x 10mmProduct InformationInductance: 47µHRMS Current (Irms): 3.8AInductor Construction: ShieldedSaturation Current (Isat): 4.5AProduct Range: WE-PDPower Inductor Case: 12mm x 12mm x 10mmDC Resistance Max: 0.06ohmInductance Tolerance: ± 20%Product OverviewThe 7447709470 is a SMD Shielded Power Inductor with 1210 case. The WE-PD powerinductor with white coating for a higher light efficiency used in LEDapplications. Hence a pleasant optical design, where beside the circuit board aswell the mounted components could now be manufactured in white colour, ispossible. Magnetically shielded version which results in a low leakage field.Highest possible current loading for SMD inductors.High storage capacityLow self-losses-40 to 125°C Operating temperatureLow self lossesHighest possible current loadingOperating temperature range -40°C to 125°CSuitable for reflow soldering processAvailable in metal and plastic base
