Wyze Sprinkler Controller

Please note:  This unit is not weatherproof, so it should only be mounted indoors or in an enclosure

We include a SA 24v AC adapter with the unit for correct working

PRODUCT DESCRIPTION

Water from anywhere

Manually start and stop watering from anywhere with the Wyze app.

Fixed Schedules

Easily create schedules to water plants on specific days and times. Great for situations where you need precise amounts of water or just want more predictable control of your irrigation system.

Smart Schedules*

With Sprinkler Plus, you can create Smart Schedules that automatically calculate when to water each zone based on its specific needs and weather conditions. It's the easiest way to ensure your lawn is taken care of.

Customizable Zone Parameters

Basic zone information (crop & spray head type) is gathered during set up, but you can go into the weeds by tweaking the parameters of each zone to drive the best Smart Schedule results.

Offline Schedules

If you lose connection to the Internet, Wyze Sprinkler will continue to operate on the saved schedule for the next 14 days. After that, the device falls back to your offline schedule.

Sunrise/Sunset

Enter your location to have your irrigation system water your lawn based on local sunrise or sunset times.

Weather Skips

Avoid wasting water or hurting your plants with Sprinkler Plus by skipping a watering if it's too cold, too windy when sufficient rainfall is expected, or if the zone is wet enough.

Cycle/Soak

If you water a zone for too long, some of the water may run off and be wasted. Cycle/Soak breaks your watering down into multiple cycles to give the soil time to soak the water in for efficiency.

Advanced Zone Details

With Sprinkler Plus, you can see the exact moisture level of each zone so you can be sure your plants are happy.

Easy Installation

Replaces your existing controller in under 20 minutes.

PRODUCT SPECIFICATIONS

• Color: Black
• Dimensions: 231 mm x 84 mm x 38 mm
• Weight: 215 g

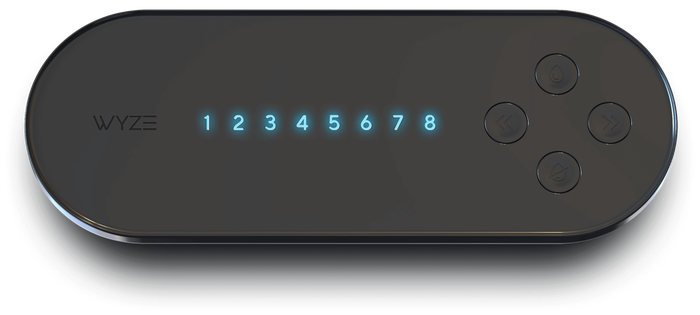

• Zones: Up to 8
• Operating Temperature: -4ºF - 122ºF (-20°C - 50°C)
• Weather Resistance: Indoor use only
• Power Source: 24V AC, 60Hz, 850mA
• Power Cable Length: 183cm
• Valve Output: 24V AC, 60Hz

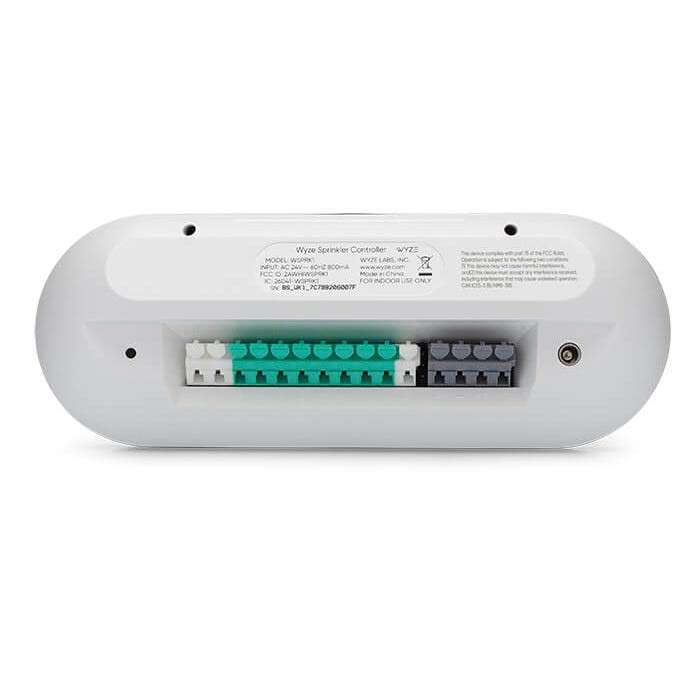

• Compatible Wire Sizes: 12 - 28 AWG

Certifications:

• FCC part 15B
• RoHS
• CEC

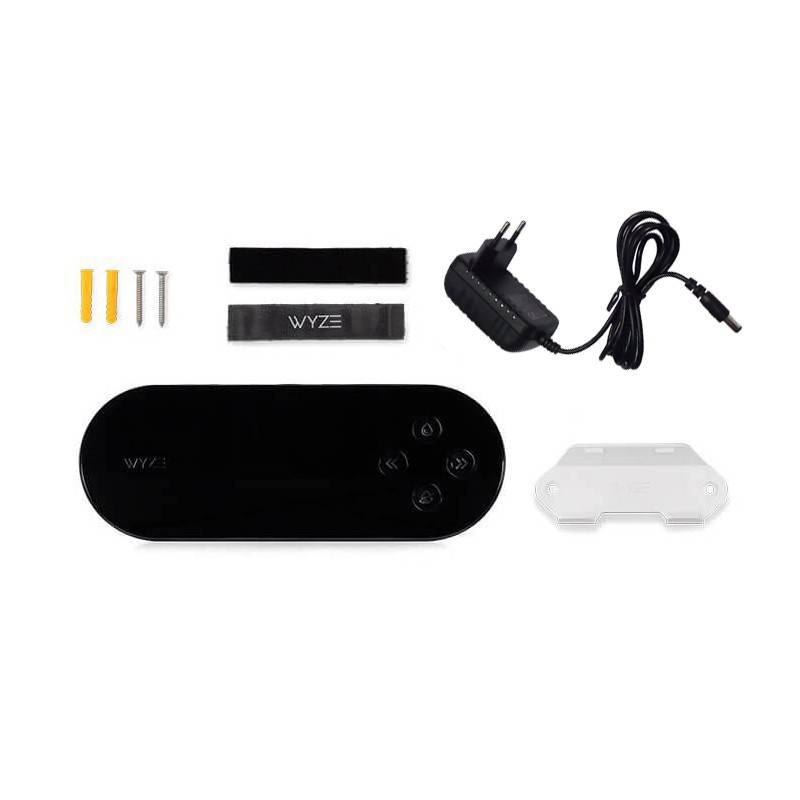

In The Box

• Wyze Sprinkler Controller x1
• Power Adapter x1
• Mounting Plate x1
• Screw x2
• Wall Anchor x2
• Cord Wrap x2
• Quick Start Guide x1
• Wire Label Sheet x1
