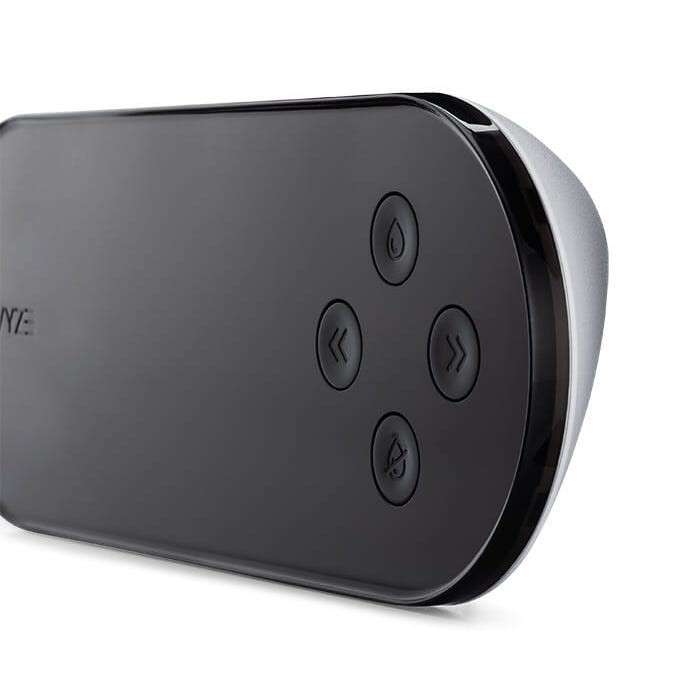

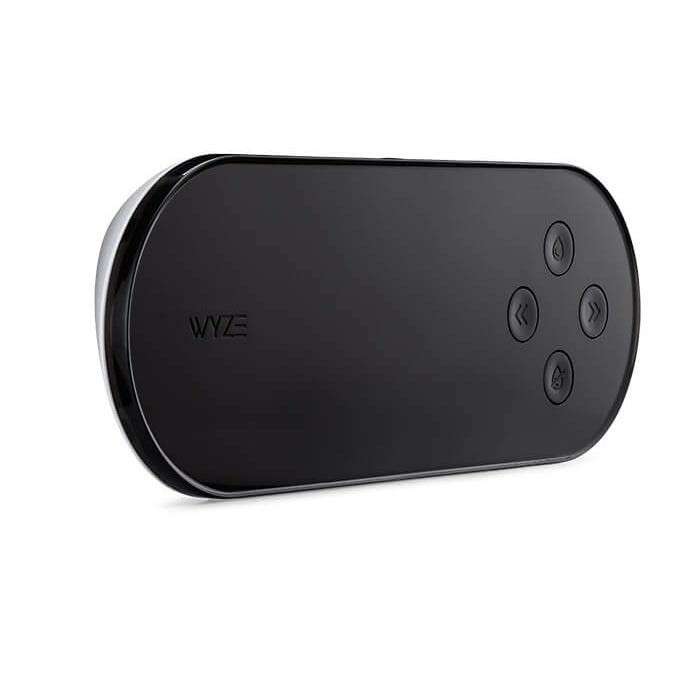

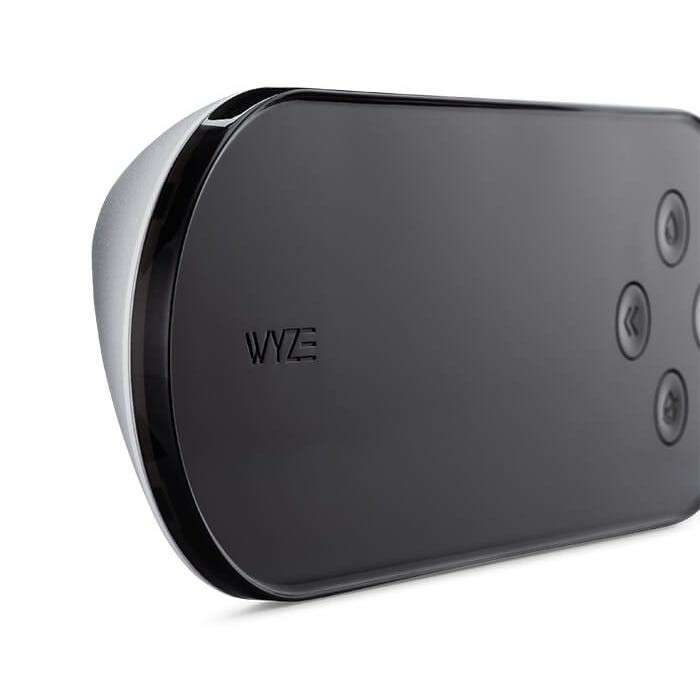

Wyze Sprinkler Controller

Please Note:

Unit not weatherproof; suitable for indoor use or enclosure.
Includes SA 24V AC adapter.

Features:

Watering Control

Manually start/stop watering via Wyze app.
Fixed schedules for specific days and times.
Smart Schedules with Sprinkler Plus for automated watering based on zone needs and weather conditions.

Customization

Customizable zone parameters, including crop and spray head type.
Advanced zone details display moisture levels.

Offline Functionality

Operates on saved schedule for 14 days without internet.
Falls back to an offline schedule after 14 days.

Environmental Considerations

Sunrise/sunset-based watering.
Weather skips to avoid watering in adverse conditions.
Cycle/soak feature for efficient water absorption.

Installation

Easy replacement of existing controller in under 20 minutes.

Specifications

Physical Characteristics

Color: Black
Dimensions: 231 mm x 84 mm x 38 mm
Weight: 215 g

Operational Details

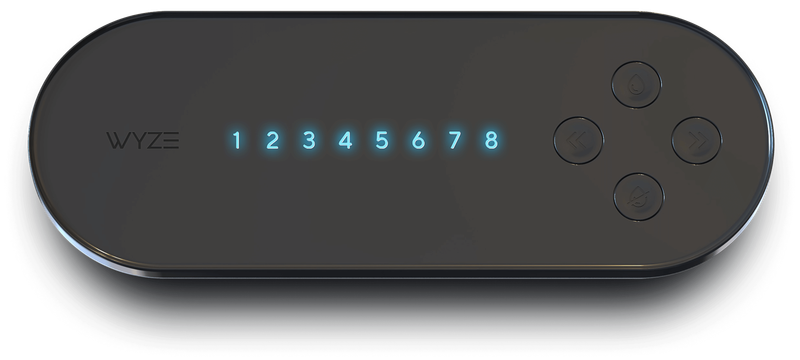

Zones: Up to 8
Operating Temperature: -20°C to 50°C
Weather Resistance: Indoor use only

Power Requirements

Power Source: 24V AC, 60Hz, 850mA
Power Cable Length: 183cm

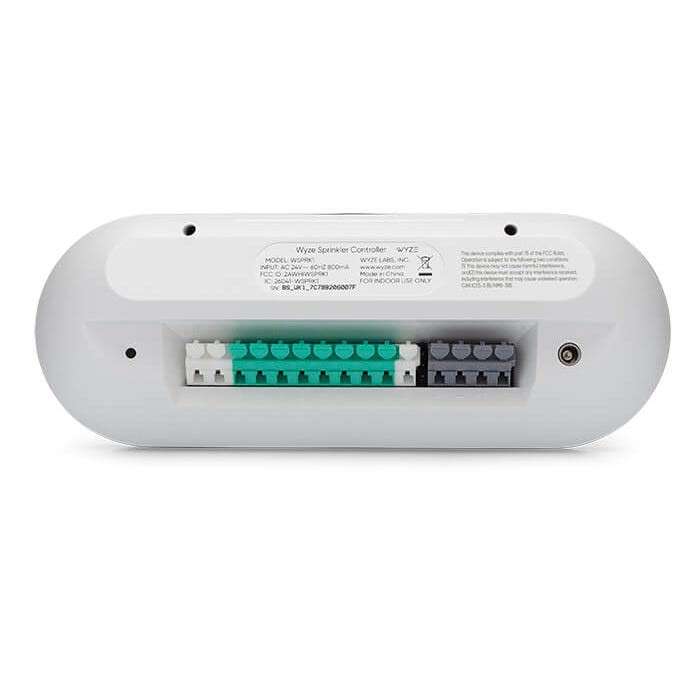

Valve Output: 24V AC, 60Hz
Compatible Wire Sizes: 12 - 28 AWG
Certifications: FCC part 15B, RoHS, CEC

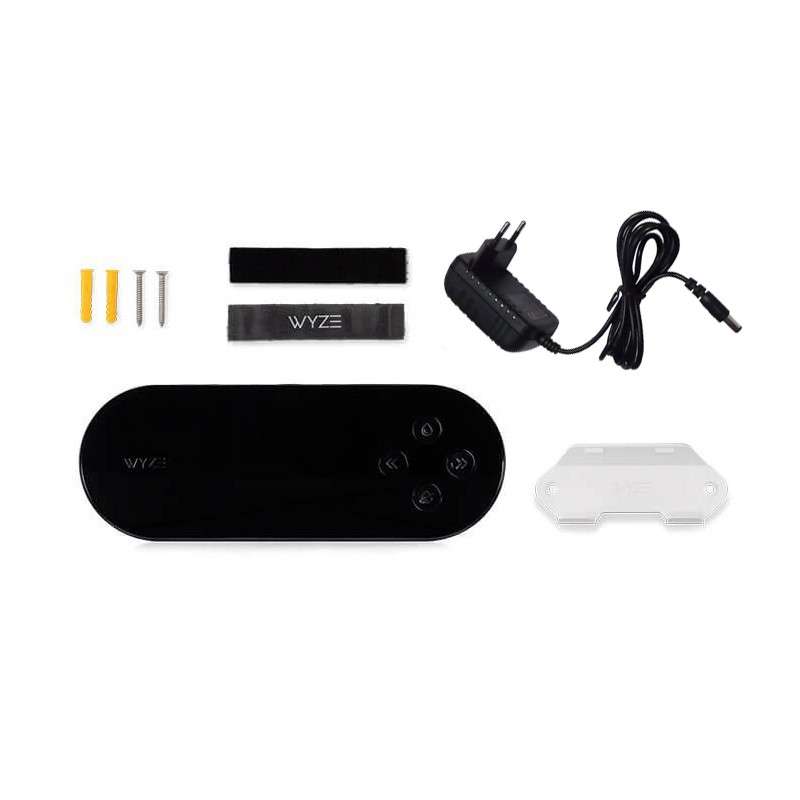

What's in the Box

1 x Wyze Sprinkler Controller
1 x Power Adapter
1 x Mounting Plate
2 x Screw
2 x Wall Anchor
2 x Cord Wrap
1 x Quick Start Guide
1 x Wire Label Sheet
