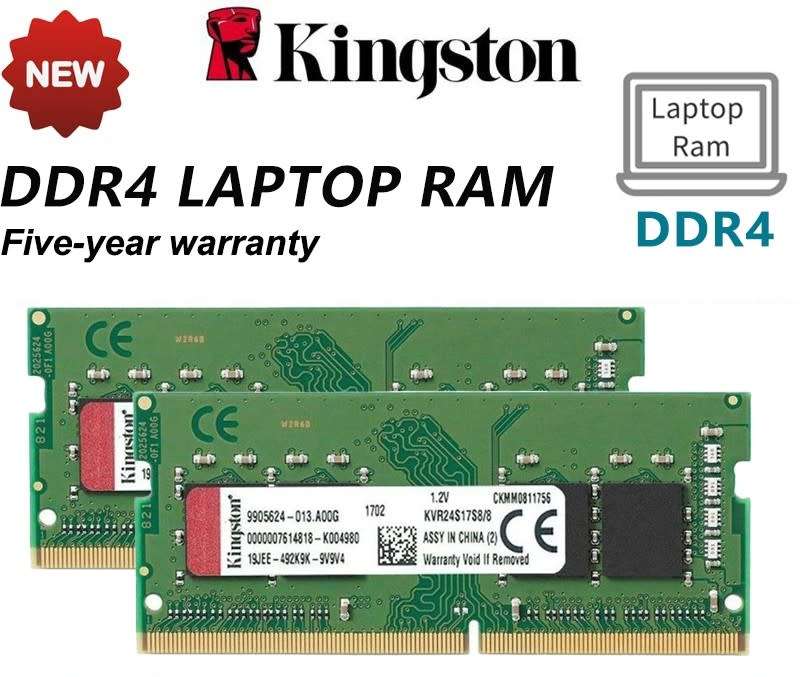

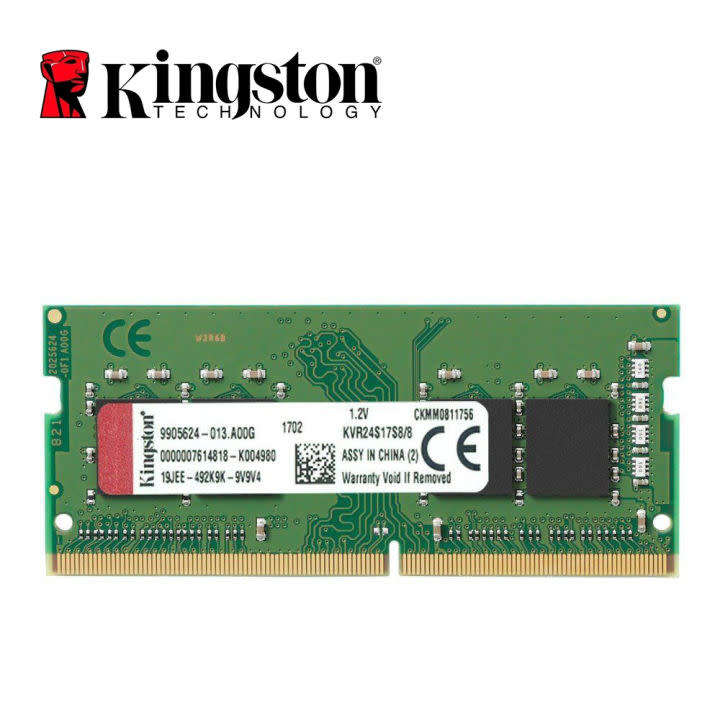

x2 8GB DDR4 RAM

Tech Specs
Laptop RAM
DDR DDR4
Dimm Type:: SODIMM
Density 8 GB
Rank x Org. 1R x 8
Speed 2400 Mbps
Voltage 1.2 V
No. of Pin 260
Component Composition (1G x 8) x 8

DESCRIPTION This document describes ValueRAM's KVR32S22S6/8 as a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

   Power Supply: VDD = 1.2V Typical

   VDDQ = 1.2V Typical

   VPP = 2.5V Typical

   VDDSPD = 2.2V to 3.6V

   Nominal and dynamic on-die termination (ODT) for    data, strobe, and mask signals

   Low-power auto self refresh (LPASR)

   Data bus inversion (DBI) for data bus

   On-die VREFDQ generation and calibration

Single-rank;

   On-board I2 serial presence-detect (SPD) EEPROM

   8 internal banks; 2 groups of 4 banks each

   Fixed burst chop (BC) of 4 and burst length (BL) of 8    via the mode register set (MRS)

   Selectable BC4 or BL8 on-the-fly (OTF)    Fly-by topology

   Terminated control command and address bus

   PCB:  Height 1.18 (30.00mm)

   RoHS Compliant and Halogen-Free
