CPU
AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors
* Refer to www.asus.com for CPU support list
Chipset
AMD X470
Memory
AMD Ryzen™ 2nd Generation Processors

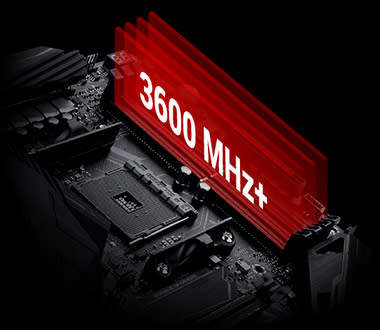

4 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
4 x DIMM, Max. 64GB, DDR4 3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
AMD 7th Generation A-Series/Athlon X4 Processors
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
Multi-GPU Support
AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors
Supports NVIDIA® 2-Way SLI™ Technology *1
Supports AMD 3-Way CrossFireX™ Technology
AMD Ryzen™ with Radeon™ Vega Graphics/AMD 7th Generation A-Series/Athlon X4 Processors
Supports AMD CrossFireX™ Technology
Expansion Slots
AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
2 x PCIe 3.0/2.0 x16 (x16 or dual x8) *2
AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (max at x4 mode)
AMD X470 chipset
1 x PCIe 2.0 x16 (max at x4 mode)
2 x PCIe 2.0 x1
Storage
AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
AMD 7th Generation A-Series/Athlon X4 Processors : *3
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
AMD X470 chipset :
6 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
AMD Athlon™ with Radeon™ Vega Graphics Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
LAN
Intel® I211-AT, 1 x Gigabit LAN Controller(s)
Anti-surge LANGuard
ROG GameFirst IV
Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- ESS® ES9023P
- Supports up to 32-Bit/192kHz playback *4
Audio Feature :
- Gold-plated jacks
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III
USB Ports
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/ 7th Generation A-Series/ Athlon™ X4 Processors :
4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
AMD X470 chipset :
1 x USB 3.1 Gen 2 front panel connector port(s)
AMD X470 chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
AMD X470 chipset :
5 x USB 2.0 port(s) (2 at back panel, , 3 at mid-board)
ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 port(s) (2 at back panel, black+red, Type-A + USB Type-CTM)
ROG Exclusive Features
Clear CMOS button
ROG RAMCache II
ROG CPU-Z
MemOK! Button
Slow Mode
Overwolf
ReTry Button
Safe Boot Button
Start Button
Reset Button
LN2 Mode
GameFirst IV
Extreme Engine Digi+ :
- MicroFine Alloy Chokes
- NexFET™ Power Block MOSFET
- 10K Black Metallic Capacitors
Mem TweakIt
