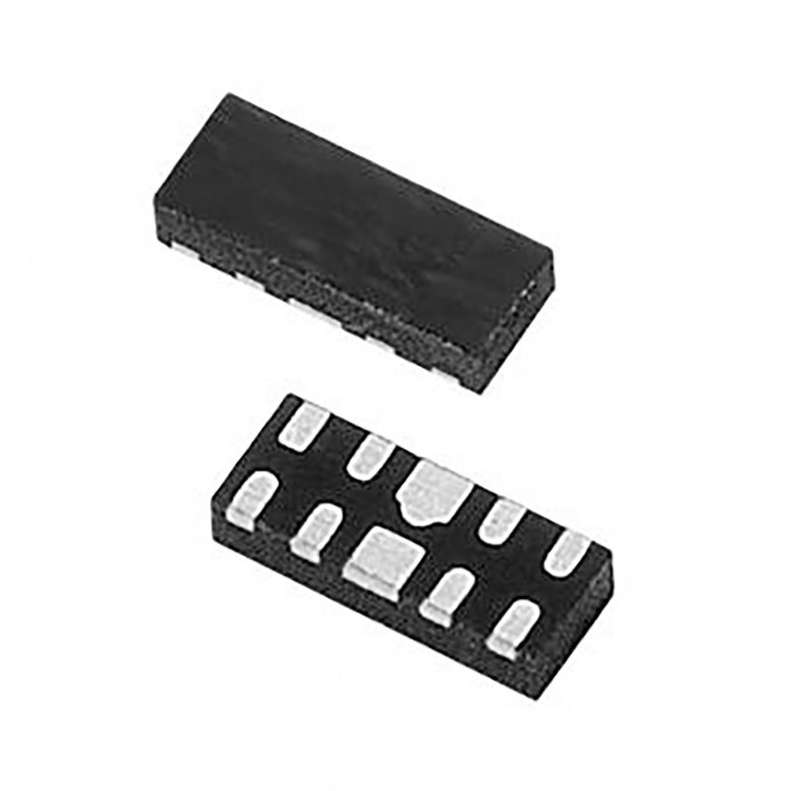

Xbox One X HDMI Filters ESD TVS Diodes

Faulty or damaged HDMI filters and ESD TVS protection diodes can interfere with HDMI signal lines and cause display problems, signal loss or no HDMI output from an Xbox One X console.

SOLUTION:

These replacement HDMI filters and ESD TVS diodes are designed for component-level repair of the Xbox One X HDMI circuit, allowing damaged HDMI protection and filtering components to be replaced.

FEATURES:

• HDMI filter and ESD TVS diode components
• Designed for Xbox One X HDMI circuit repair
• Suitable for component-level motherboard repairs
• Replacement for damaged HDMI signal protection components
• SMD components for motherboard installation

BENEFITS:

• Helps repair HDMI signal faults
• Allows damaged HDMI circuit components to be replaced
• Helps restore reliable HDMI operation
• Supports component-level repair instead of motherboard replacement

COMPATIBILITY:

Compatible with Xbox One X motherboards. Verify the component location and motherboard revision before installation.

INSTALLATION NOTE:

Professional microsoldering equipment and experience are required. Diagnose the HDMI circuit and confirm the faulty component before replacement.

Suitable for xbox one x console HDMI

xbox one x hdmi filters

Working Voltage: 5 V

Number of Channels: 4 Channel

Termination Style: SMD/SMT

Package / Case: uDFN-10

Clamping Voltage: 8.4 V

Vesd Voltage ESD Contact: 12 kV

Vesd Voltage ESD Air Gap: 25 kV

Cd Diode Capacitance: 0.5 pF

Ipp Peak Pulse Current: 4 A
