Demo Unit
Xbox Series S Specs
All Digital Console, use with digital games only; console does not play physical discs.
PROCESSOR
CPU : 8X Cores @ 3.6 GHz (3.4 GHz w/SMT) Custom Zen 2 CPU
GPU : 4 TFLOPS, 20 CUs @1.565 GHz Custom RDNA 2 GPU
SOC Die Size : 197.05 mm2
MEMORY & STORAGE
Memory : 10GB GDDR6 128 bit-wide bus
Memory Bandwidth : 8GB @ 224 GB/s, 2GB @ 56 GB/s.
Internal Storage : 512GB Custom NVME SSD
I/O Throughput : 2.4 GB/s (Raw), 4.8 GB/s (Compressed, with custom hardware decompression block)
Expandable Storage : Support for 1TB Seagate Expansion Card for Xbox Series X|S (sold separately). Support for USB 3.1 external HDD (sold separately).
VIDEO CAPABILITIES
Gaming Resolution : 1440p
Performance Target : Up to 120 FPS
HDMI Features : Auto Low Latency Mode. HDMI Variable Refresh Rate. AMD FreeSync.
SOUND CAPABILITIES
L-PCM, up to 7.1
Dolby Digital 5.1
DTS 5.1x
Dolby TrueHD with Atmosx
PORTS & CONNECTIVITY
HDMI : 1x HDMI 2.1 port
USB : 3x USB 3.1 Gen 1 ports
Wireless : 802.11ac dual band
Ethernet : 802.3 10/100/1000
Accessories radio : Dedicated dual band Xbox Wireless radio
CONSOLE DESIGN
Dimensions : 6.5cm x 15.1cm x 27.5cm
x IMPORTANT INFORMATION
- Game Pass Ultimate subscription sold separately
- 120 FPS: Requires supported content and display; use on Xbox Series S as content becomes available.
- 4K streaming with select apps, see xbox.com. Some apps require app provider-specific subscriptions and/or other requirements.
- Dolby Atmos and DTS:X: may require additional purchases, app downloads, and supported hardware.
- Dolby Vision & Atmos usage: Requires supported content, display, and sound device. Use on Xbox Series S as content becomes available.
- The console includes a 12-Month Manufacturer Warranty. Visit https://support.microsoft.com/ for additional support.
What's in the box

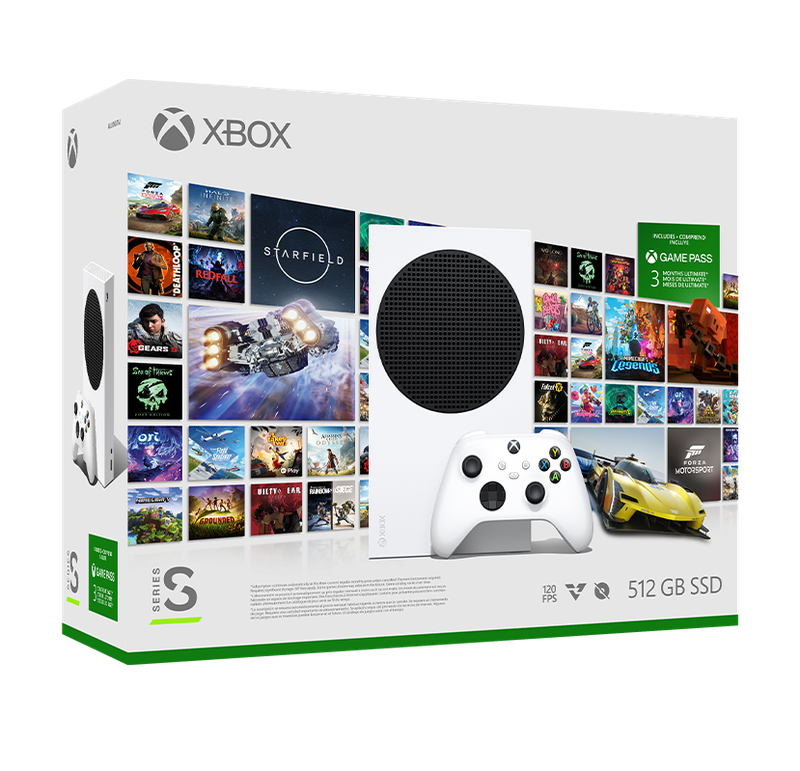

1 x Xbox Series S Console
1 x Xbox Wireless Controller
1 x High Speed HDMI Cable
