Description

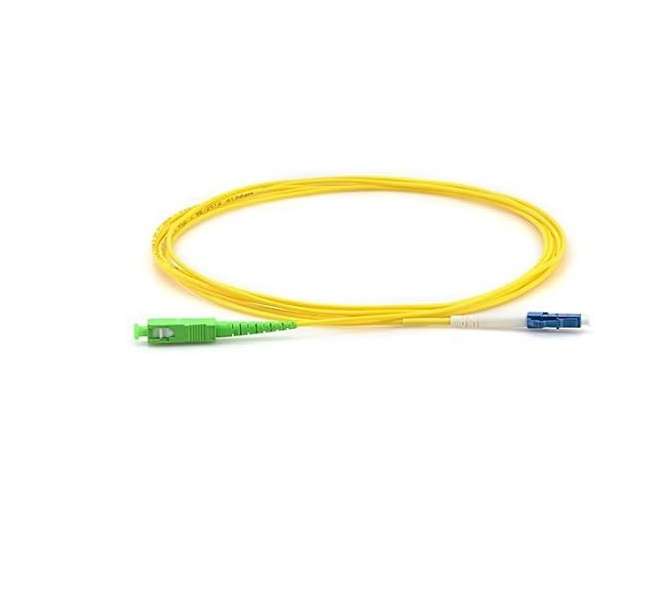

'- 2.0 mm diameter patch cord cables are manufactured with ITU-T G657.A2 bend sensitive fibers, then assembled at one end with SC type; other ends with LC type connectors
Insertion Loss (IEC 61300-3-4-Method-B): ? 0.30 dB
Return Loss (IEC 61300-3-6-Method-B): ? 50 dB (UPC), ? 60 dB (APC)
Durability: 500 matings
Flammability: UL94 V-0
Operating Temperature: -40?C to +85?C
Connector End Face Geometry: IEC 61755-3
LC Connector Compliance: IEC 61754-20, TIA 604-10-A, RoHS
SC Connector Compliance: IEC 61754-4, TIA 604-3, RoHS
FC Connector Compliance: IEC 61754-13, TIA 604-4-A, RoHS
ST Connector Compliance: IEC 61754-2, TIA 604-2, RoHS
LSH Connector Compliance: IEC 61754 15, TIA 604 16, RoHS
Package Weight: 24g
Package Dimensions: 18cm x 18cm x 2cm
Package Includes:
1 x Simplex Single Mode Fiber Optic Patch Cord 6m
