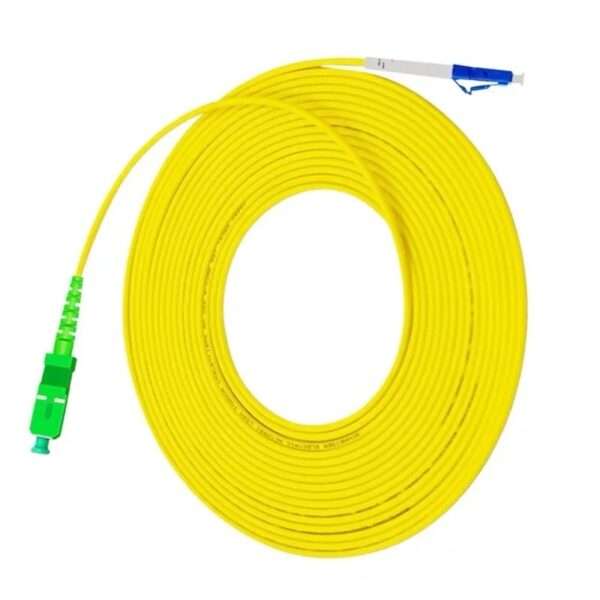

XF0165-5 SC/APC LC/UPC Simplex Single Mode Fiber Optic Patch Cord 2.0mm 30M

-2.0 mm diameter patch cord cables are manufactured with ITU-T G657.A2 bend sensitive fibers, then assembled at one end with SC type; other ends with LC type connectors

-Insertion Loss (IEC 61300-3-4-Method-B): 0.30 dB

-Return Loss (IEC 61300-3-6-Method-B): 50 dB (UPC), 60 dB (APC)

-Durability: <0,1 dB typical change for >500 matings

-Flammability: UL94 V-0

-Operating Temperature: -40C to +85C

-Connector End Face Geometry: IEC 61755-3

-LC Connector Compliance: IEC 61754-20, TIA 604-10-A, RoHS

-SC Connector Compliance: IEC 61754-4, TIA 604-3, RoHS

-FC Connector Compliance: IEC 61754-13, TIA 604-4-A, RoHS

-ST Connector Compliance: IEC 61754-2, TIA 604-2, RoHS

-LSH Connector Compliance: IEC 61754 — 15, TIA 604 — 16, RoHS

Package Weight: 110g

Package Dimensions: 18cm x 18cm x 2cm

Package Includes:

1 x Simplex Single Mode Fiber Optic Patch Cord 30M
