XF0535 Wireless PIR Motion Sensor Infrared Detector Induction Doorbell

'-Receiver Size (approx.) : 76*80*33mm
-PIR sensor size (approx.) : 80*59*45mm)
-Weight (approx.) : 0.17kg
-Working range: up to 70 meters
-Infrared detection distance: 3-7 meters
-Receiver working voltage : 110V-240V
-PIR sensor operating voltage : 4.5V ( 3 AAA batteries )
-38 different songs to optionally use the external "music" button to finish

-The volume adjustment function: there are three kinds of volume (high, medium, low) for choice
adjust sound and silence

-Place the correct batteries in the detector

-Make sure the batteries have been placed in the correct positions.

-Mount the detector properly by the front door, window frame, driveway, walkway, backyard or anywhere.

-Then turn on the receiver and adjust the volume to hi or lo position.

-Now the remote sensing system works with infrared sensing technology

-Place the receiver in an easy to reach location

-When the detector detects motion, the receiver will emit an audible sound and the LED light will flash

-Please wait 30 seconds after activating the detective and receiver

-Please install both units 3 feet above floor level for best performance

-Do not place the detector in areas where the wind will move it, also try to keep the detector in a clear path to the receiver, so you can get the best performance.

-Please keep the detector and receiver in sheltered places to avoid contact of the two units in the form of water and direct sunlight

-When the LED does not light up, the battery power is low or dead. At this time you should change the batteries.

-Clean the detective regularly with a damp cloth to prevent the sensor from being blocked by dirt or small particles.

-Try to keep it in areas where it won't get wet. Also, during heavy storms and snowfall, it is recommended that the unit be moved indoors or to a safe location.

-Never attempt to disassemble the units.

-When the unit is not in use, remove all batteries; Clean both units and store the units in a cool, dry place

Package Weight: 146g

Package Dimensions: 10cm x 8cm x 9cm

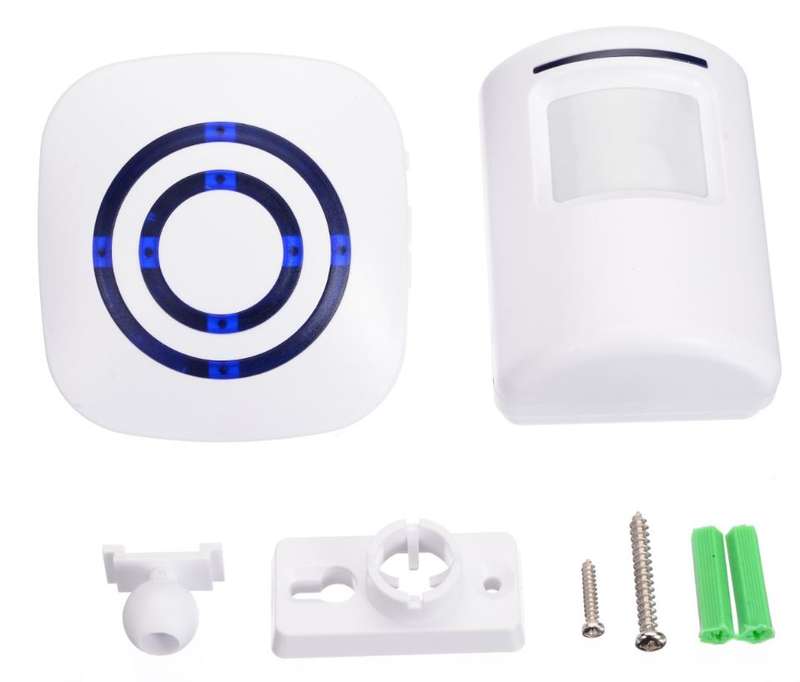

Package Includes:

1 x Receiver
1 x PIR Sensor
1 x Manual
1 x Pack Of Screws
