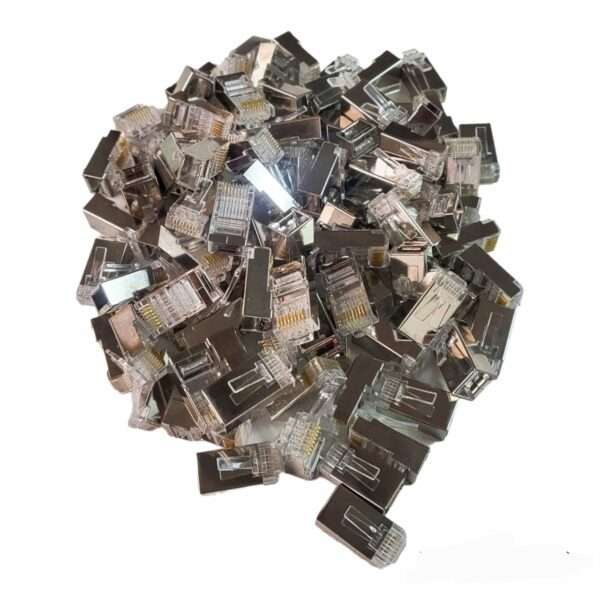

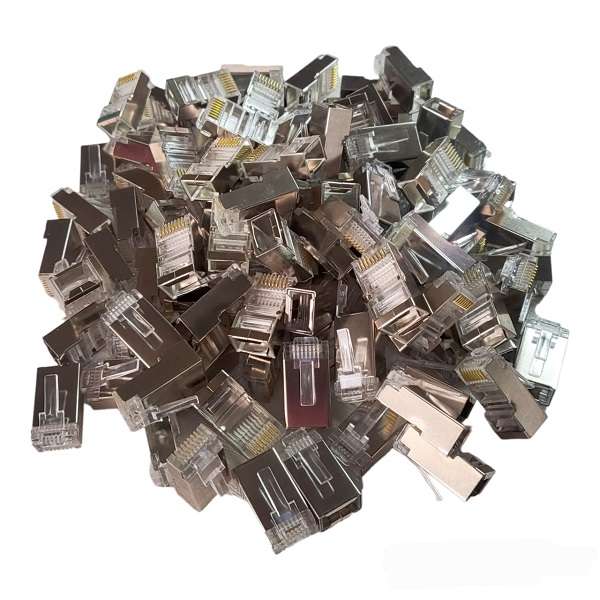

XF0568 RJ45 Type 6 Copper Case CAT6 Network Cable Connector Crystal Head Shielded 100pc

-The rj45 connector supports category 6 Gigabit Ethernet, 23-24AWG, wire OD: 1.0-1.1mm, shielded twisted pair solid or stranded cable, round or flat network cable.
-Please ensure AWG and OD must both meet the requirements. CAT6 23awg is supported for solid cable only.
-The aperture adopts the industry international standard wire hole to ensure the insertion loss, return loss and margin meet the FLUKE test standard.
-The cat 6 ends use pure copper nickel-plated gold plated 8p8c blade. Enlarge, thicken 3-pronged structure, the wiring is firmer, the conductivity is stronger, and it is not easy to fall off.
-The thickness of gold plating is 50U. The thicker the gold plating, the more times of plugging and unplugging, more than 750 times . -The thicker the gold plating, the stronger the anti-oxidation ability, and it is not easy to blacken, so as to ensure stable and reliable network speed and data.
-The cat6 connector adopts pure copper nickel-plated shell, shielding interference, signal transmission is more stable and faster.
-The inner shell is made of environmentally friendly PC material, which has strong toughness and is resistant to extrusion and bending.High toughness shrapnel, bend back about 180 degrees without breaking.

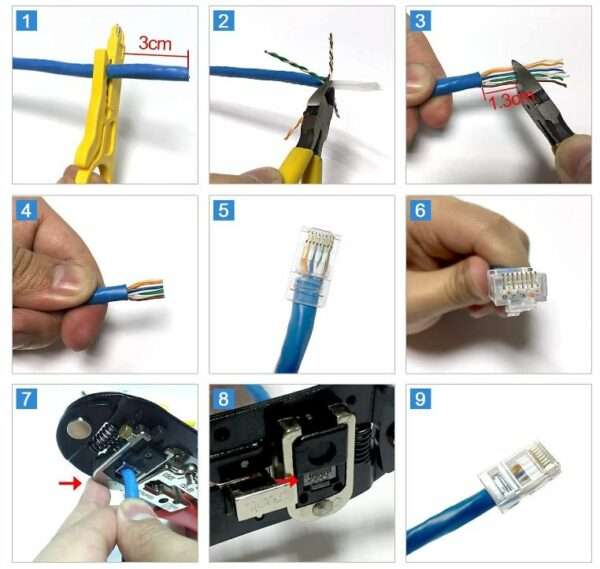

-The two-piece type makes it easier to lock the position of the network cable core when crimping the crystal head.
-Compared with the traditional connector, it is inconvenient to insert the wire into the interior when inserting the wire, but the two-piece design only needs to insert the wire on the load bar, which is very simple and not easy to make mistakes

Package Weight:240g

Package Dimensions: 8cm x 4.5cm x 13cm

Package Includes:

1 x RJ45 Type 6 Copper Case CAT6 Network Cable Connector Crystal Head Shielded 100pc
