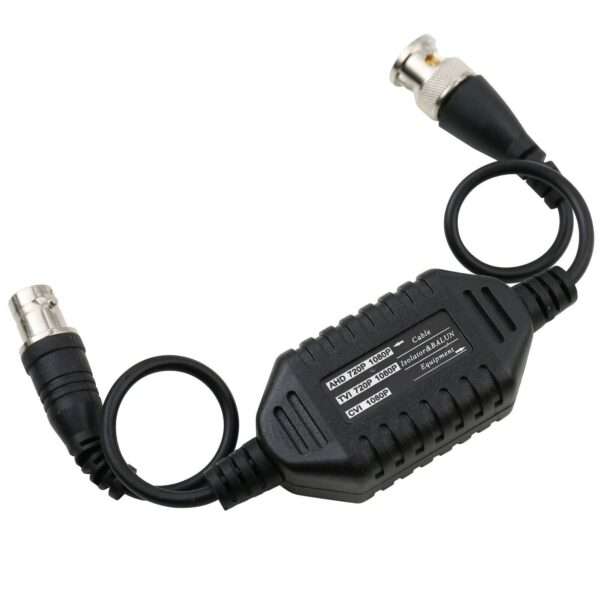

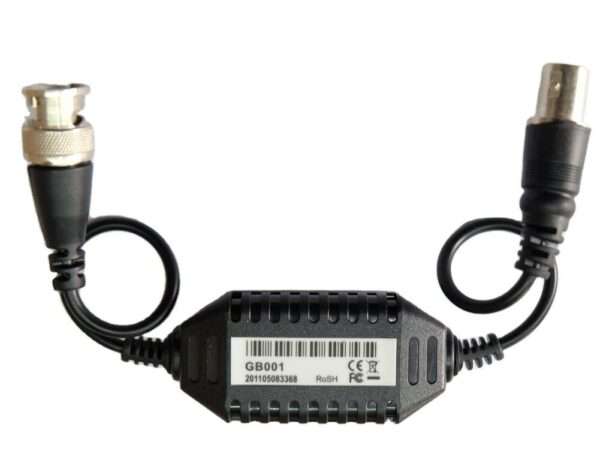

XF0587 Coaxial Video Ground Loop Isolator Balun BNC Male to Female

Compact size and easy installation.

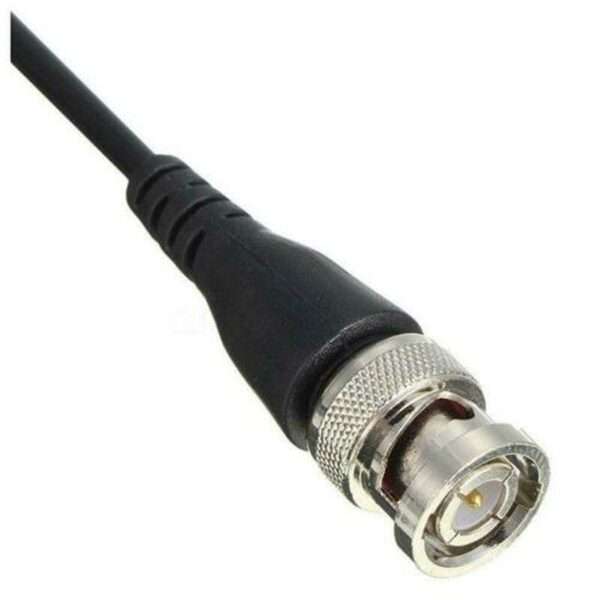

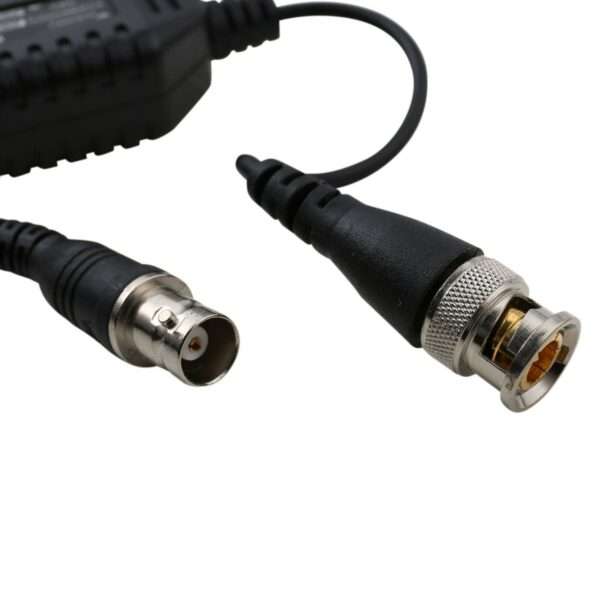

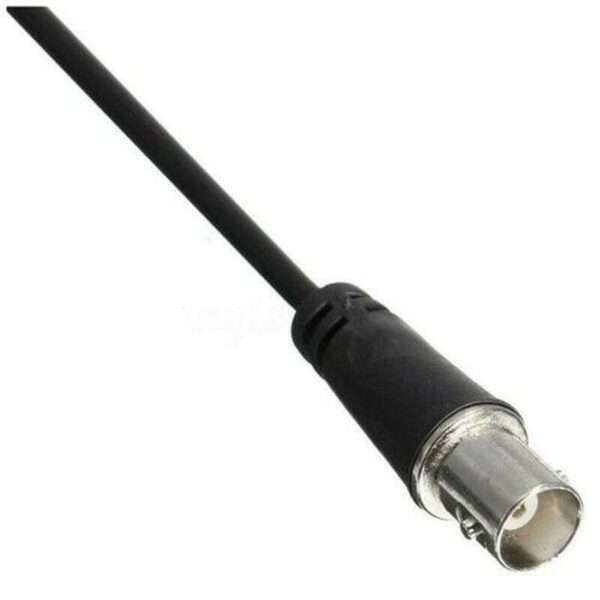

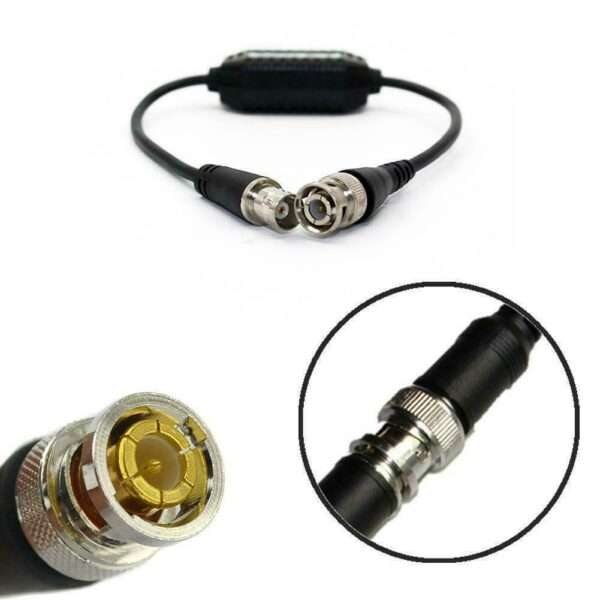

BNC male to BNC female with mini cable on both sides.

Passive, no power required.

Prevents video-signal distortion caused by video ground loops.

Eliminates picture tearing , cross talk and rolling

Built in video BALUN, perfect to work with DVR to immunity DVR interference , for extra interference rejection

Built in TVS for surge protection.

No filter ground isolator, suitable for coaxial grounding isolation.

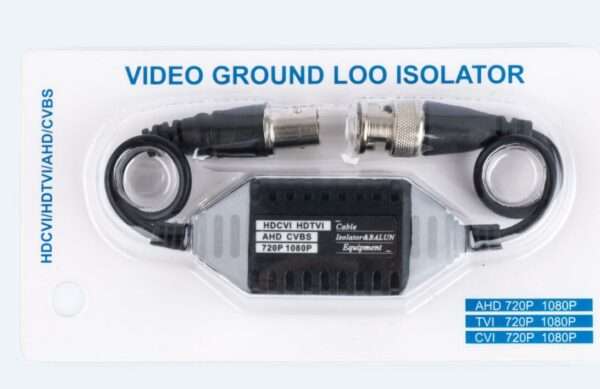

HD-TVI/CVI/AHD/CVBS 4 in 1 ground loop lsolated videa balun.

Up to 230m(754ft)for HD-TVI Hikvision 720p camera

Up to 250m(820ft)for HD-TVI Hikvision 1080p camera

Up to 440m( 1443f) for HD-CVI Dahua 720p camera.

Up to 240m(787f) for HD-CVI Dahua 1080p camera.

Up to 320m( 1053t)for AHD 1080p camera.

Up to 330m(1082ft) for AHD 1080p camera.

Wave Filter Design, Anti- Static Design

Lightning protection design Grade: III

60 dB crosstalk and noise immunity

Exceptional interference rejection.

Video signal strength is stronger than filtered.

Item Type: Ground Loop Isolator

Shell Material: Plastic

Color: Black

Insertion loss 0.5db

Frequency response 0-3db at 10 MHZ

Input Resistance 75ohm

Output Resistance 75ohm

Isolation Voltage 600VDC(Min)

Insulation resistance 100m Ohm

Transient Voltage suppressors 12 Vrms

Design: ABS plastic injection-wide, compact

Package Weight: 36g

Package Dimensions: 14cm x 8 (L x H)

Package Includes:

1 x Coaxial Video Ground Loop Isolator
