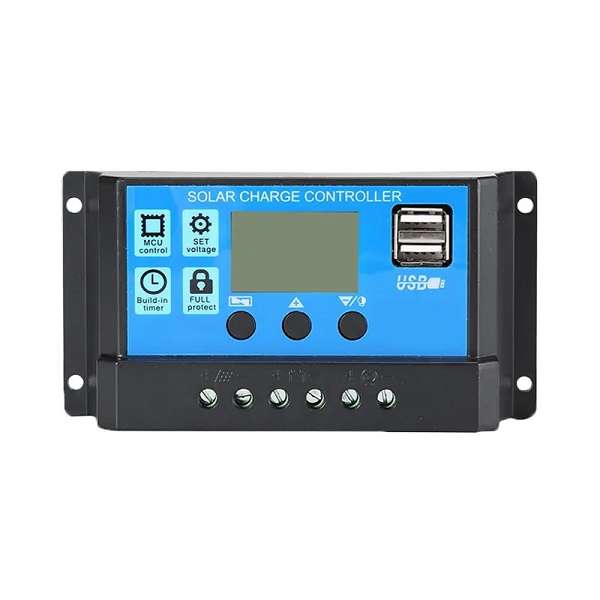

XF0838 Solar Charge Controller 30A Dual USB Output With LCD Display, PWM Battery Charging

-Solar Charge Controller Dual USB Output with LCD Display, PwM Battery Charging. Adjustable Controlling Parameters of System
-Solar controller 30A-12V/24V Automatic identification of general purpose household power generation home system controller
-Charging Current: ,30A Depending on model
-Discharging Current: 30A
-Max PV Voltage: 50V
-Max PV Input Power: 390W(12V)780W(24V)
-Max Solar input 12V System Equalization 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)
-Float charge 13.7V(defaul,adjustable)
-Discharge stop 10.7V(defaul,adjustable)
-Discharge reconnect 12.6V(defaul,adjustable)
-USB output 5V/2A
-Mounting holes pacing 147mm60mm
-Temperature -35 C~+60 C
-Storage temperature -40 C-70 C
-Industrial level main control chip is adopted
-Large LCD display, adjustable charging and discharging parameters
-Complete 3 phase PWM charging management
-Built-in overcurrent/short circuit protection, open circuit protection and reverse connection protection, all of which are self-restoring and will not damage the controller
-Double MOS anti-backflow circuit, ultra-low heating value

Package Weight: 142g

Package Dimensions: 13.5cm x 3.8cm x 7.4cm

Package Includes:

1 x Solar Charge Controller
1 x Manual
