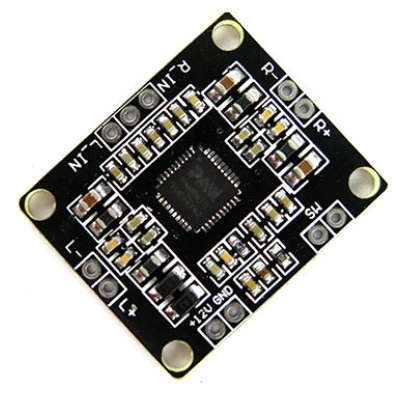

XH-M181 PAM8610 Dual Audio Mini Digital Amplifier 15w x 2 High Power
Specifications:
Model: PAM8610-GF1510
Work: Class D (PWM modulation type)
Chip selection¿ PAM8610
Power Range: DC6V-15V (self-protection)
Recommended voltage¿ DC 12V2A
Thermal volume: (no heat)
Dimensions¿ 28 x 22 x 2.5mm
Output Power: 10W x 2(8Ω) 15Wx2(4Ω)
Frequency Response: 20HZ-15KHZ
Channel type: two-channel
Quiescent Current: 20MA (DC12V time)
SNR: 90% Recommended
Speakers: 10-100W
Input impedance: 15K
Output impedance: 4-8Ω
Harmonic distortion: <0.1%
Net weight: 3g
This item is available in stock and is not drop shipped. This avoids delays, customs charges and extra VAT.
