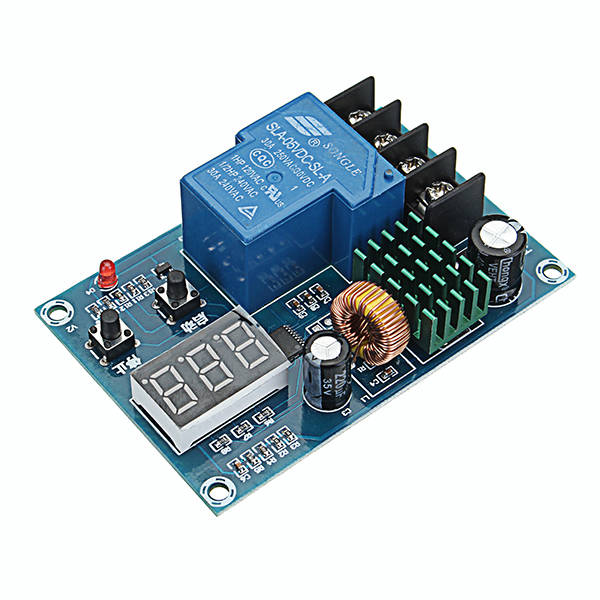

XH-M604 DC 6-60V Charging Control Module Storage Lithium Battery Control Switch
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information
Description:

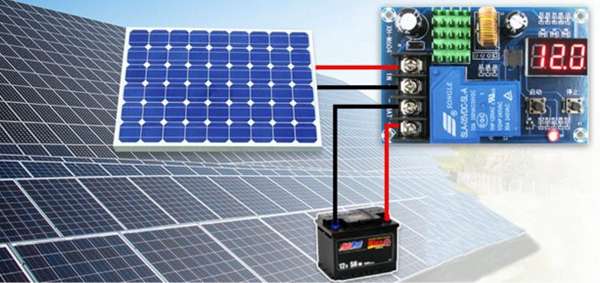

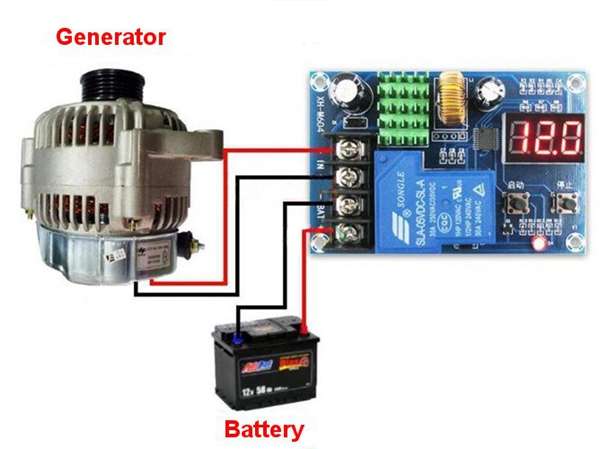

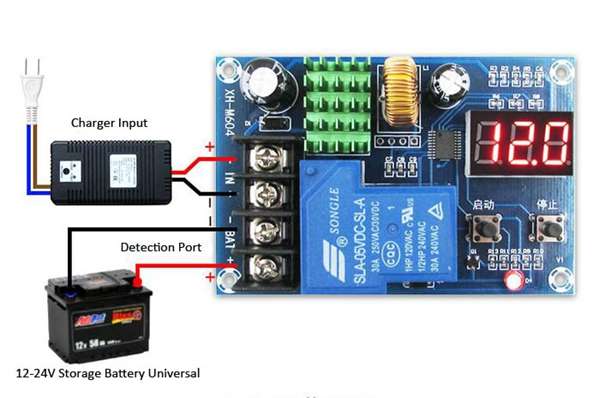

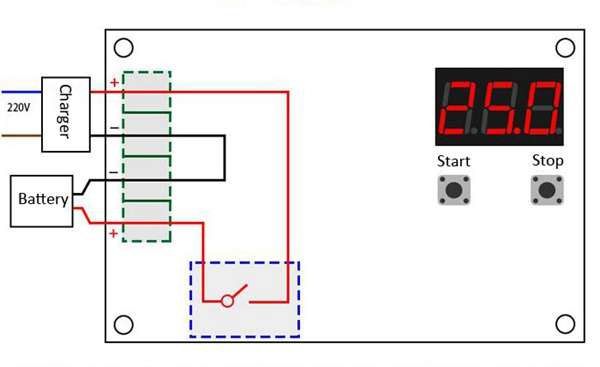

This product is suitable for 6-60V battery charging control, can be set free to start charging voltage and stop charging voltage! In the IN input charger 660V voltage, in the OUT terminal battery, for example, set 12V start 15V stop when the voltage is below 12V when the relay is closed to the charger charging voltage to the battery, when the charge voltage is greater than 15V Relay off to stop charging, can be used in household chargers, solar, wind turbines.
Specification:
1. Name: numerical control battery charging control module
2. Model: XH-M604
3. Input Voltage: DC 6-60V (max 80V)
4. Display Precision: 0.1V
5. Control Precision: 0.1V
6. Output Type: direct output
7. Voltage Tolerance: ±0.1V
8. Application Fields: 6-60V storage battery (Applicable to solar cells, new energy batteries, Lead-acid batteries, nickel-cadmium batteries, nickel-metal hydride batteries, lithium-ion batteries, polymer batteries, Car battery, electric car battery)
9. Need connected to battery, or it won't be displayed
10. Size: 81 x 54 x 18mm, hole diameter: 3.2mm

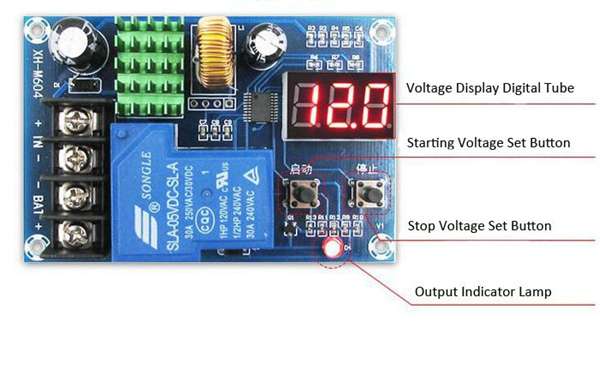

Using method:
1. Set Starting Voltage: in normal display voltage state,press the button will display start charging voltage;long press for 3s the digital tube will flash;you can start or stop button to set starting up charge voltage value.
2. Set Stop Voltage: in normal display voltage state,press the button will display stoping charge voltage;long press the button for 3s the digital tube will flash;you can start or stop button to set stoping charge voltage value.
3. Factory Reset: in power on state press the start/stop button at the same time,digital tube will display 888;that represents factory reset settings.
Package included:
1 x XH-M604 charging control module
