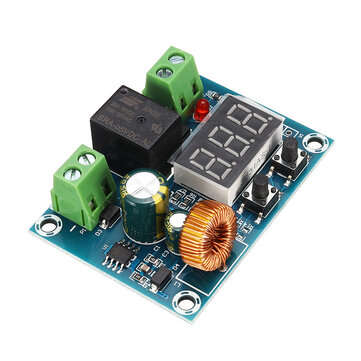

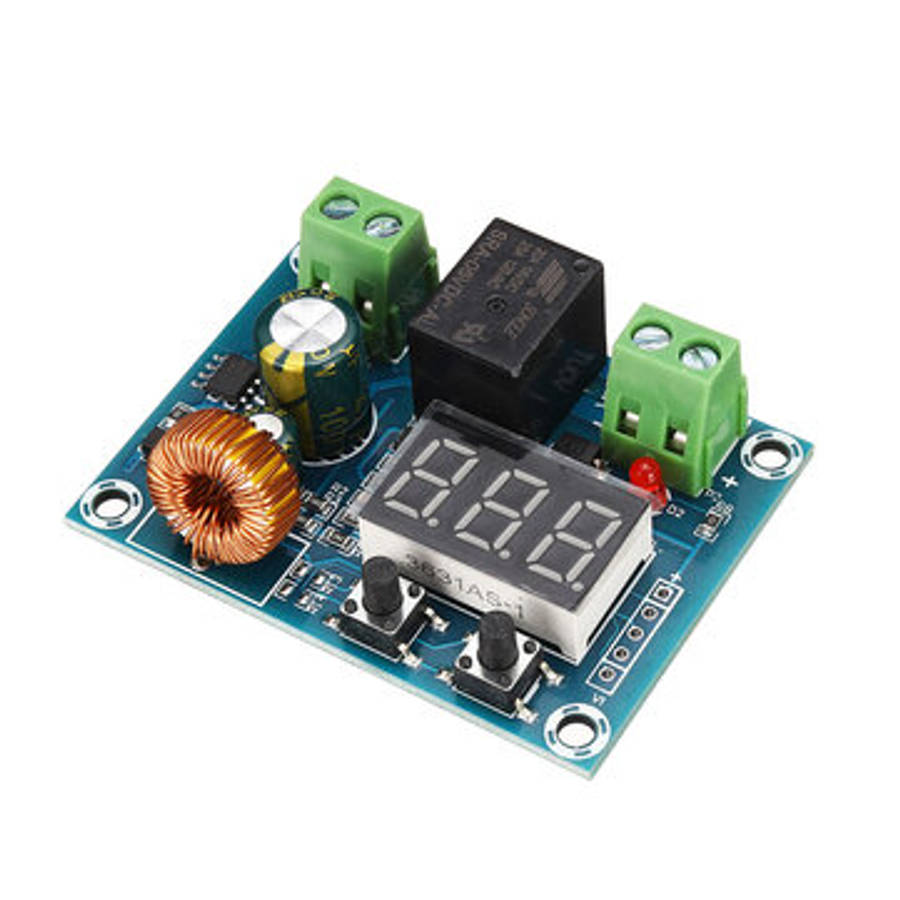

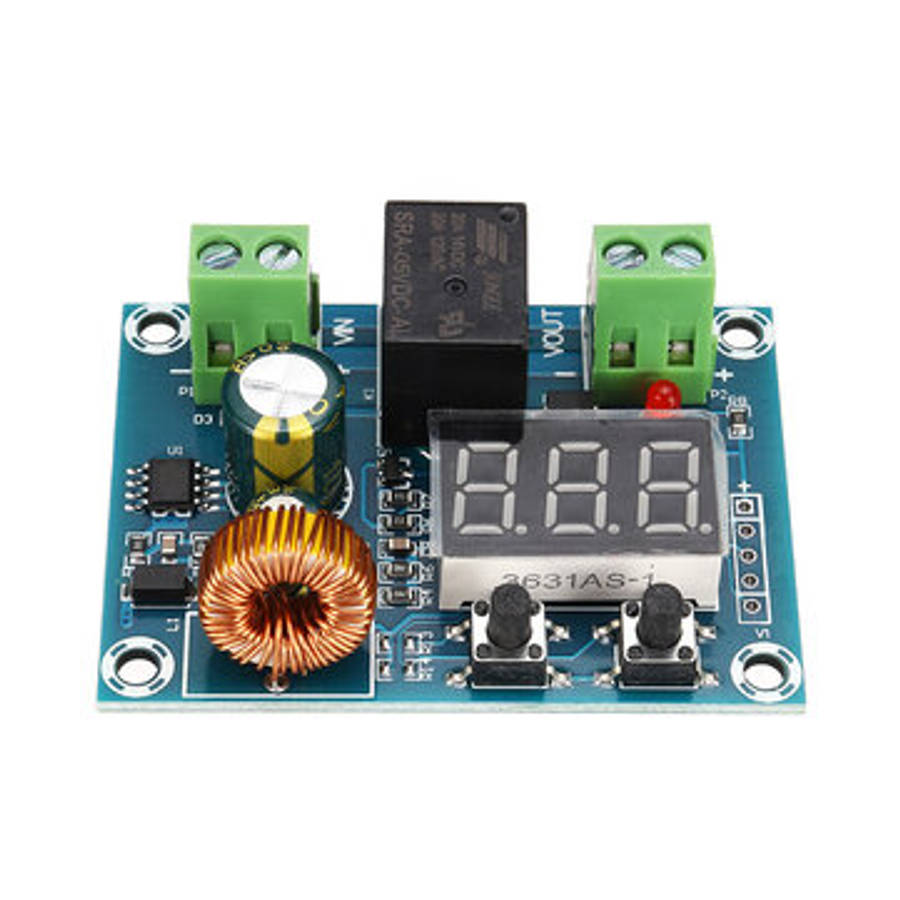

XH-M609 DC 12V-36V Charger Module Voltage OverDischarge Battery Protection Precise Undervoltage Prot

10 were available / new

R246.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3505

93.41 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Customer ratings:

1 ratings

Bob Shop ID

568252027

Features:
1. Automatic power off. 2. Discharge protection. 3. Prolong battery life.
Specification:

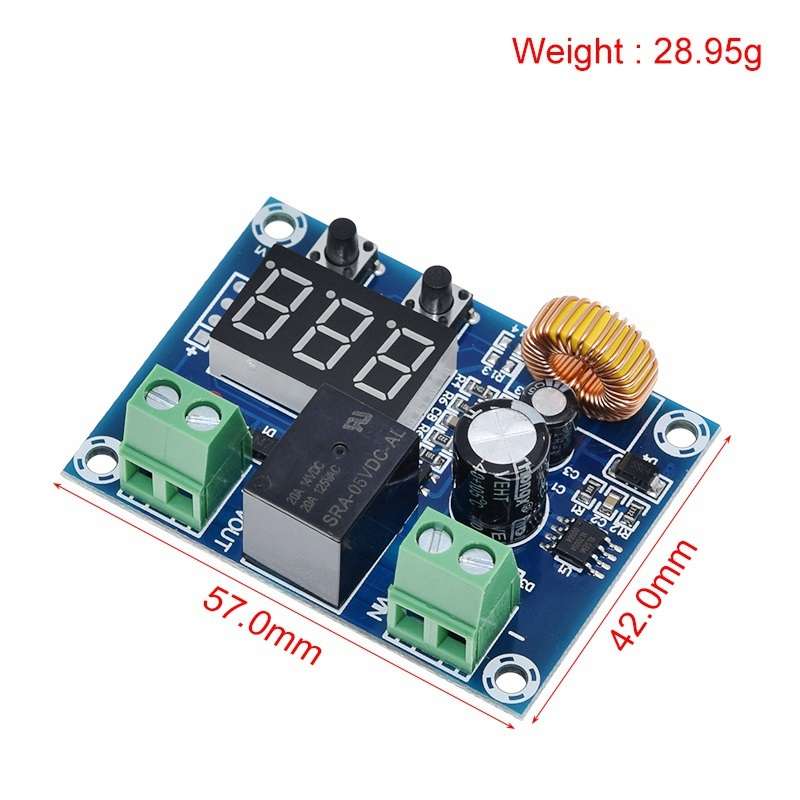

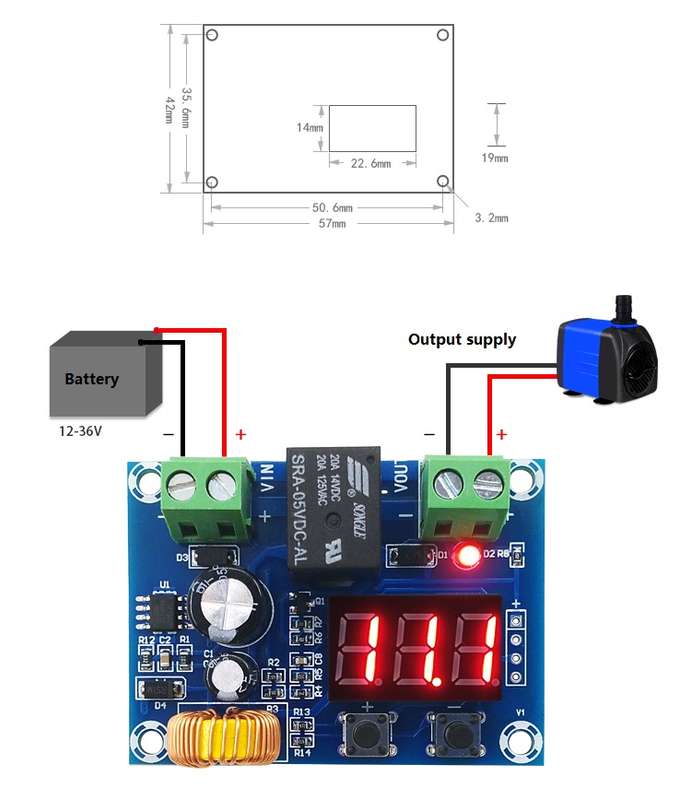

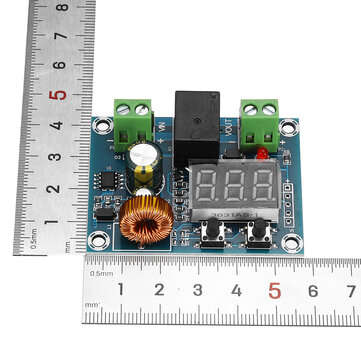

Product name: Battery overdischarge protection module Model: XH - M609 Power supply voltage: DC12 V- 36 V battery Output voltage: Equal to power supply voltage Control precision: 0.1 V Power consumption: Less than 1.5 W Scope of application: Various storage batteries, lithium batteries Net weight: 28 g Size: 57 * 42 * 19 mm
Instructions for use: + Key: Press once to display the protection value, long press to set the protection value - Key: Press once to display the return difference value, long press to set the return difference value
Setting example: When the stop voltage is lower than 11V and the voltage is higher than 11.6V, it starts? Method: long press + screen flicker set to 11, then long press-screen flicker set to 0.6 to OK Is the voltage lower than 12.5V disconnected, and the voltage higher than 14.8V starts? Method: long press + screen flicker to set the stop value to 12.5, wait until the screen does not flicker, then long press-screen flicker, set the hysteresis voltage to 2.3V
Package included:
1 x Battery overdischarge protection module
