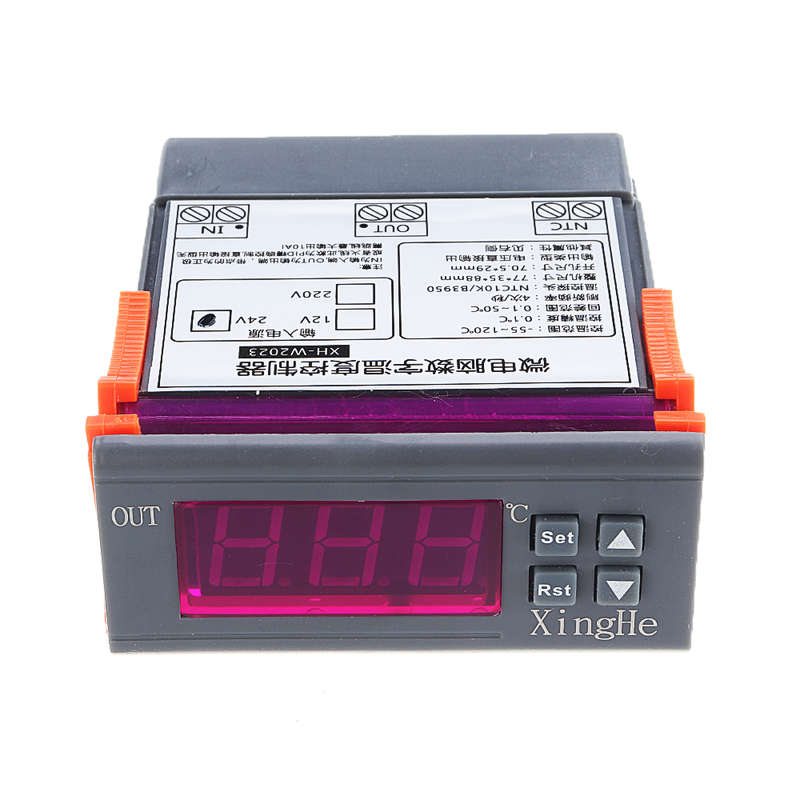

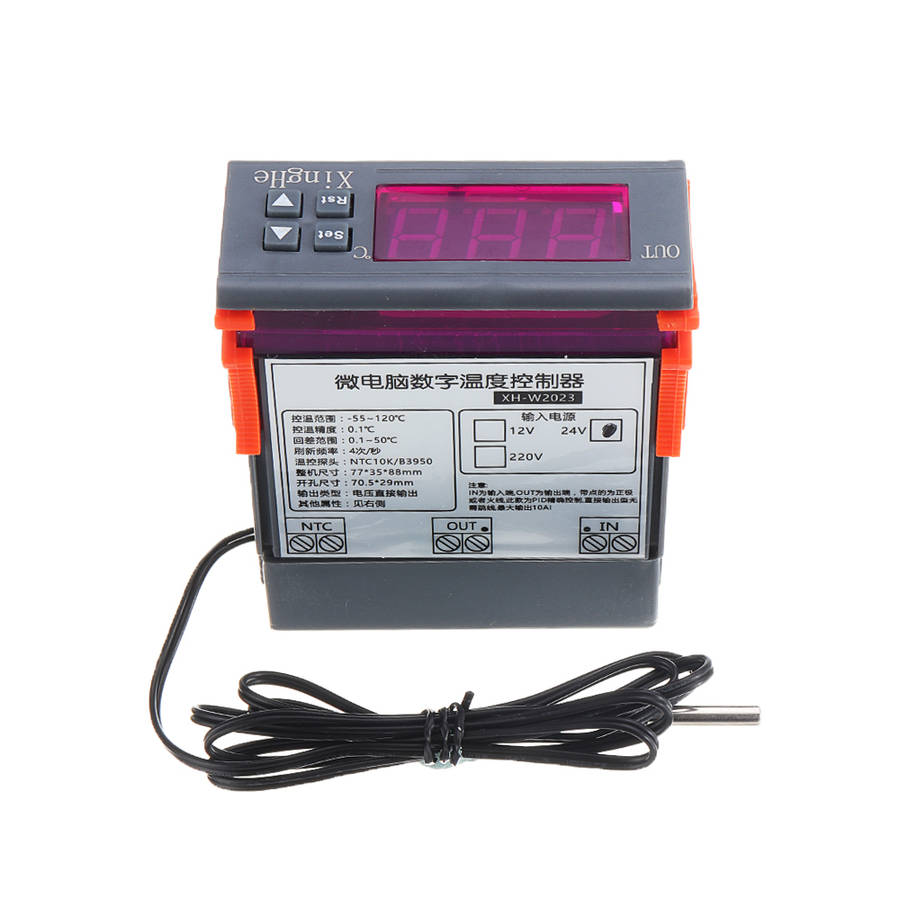

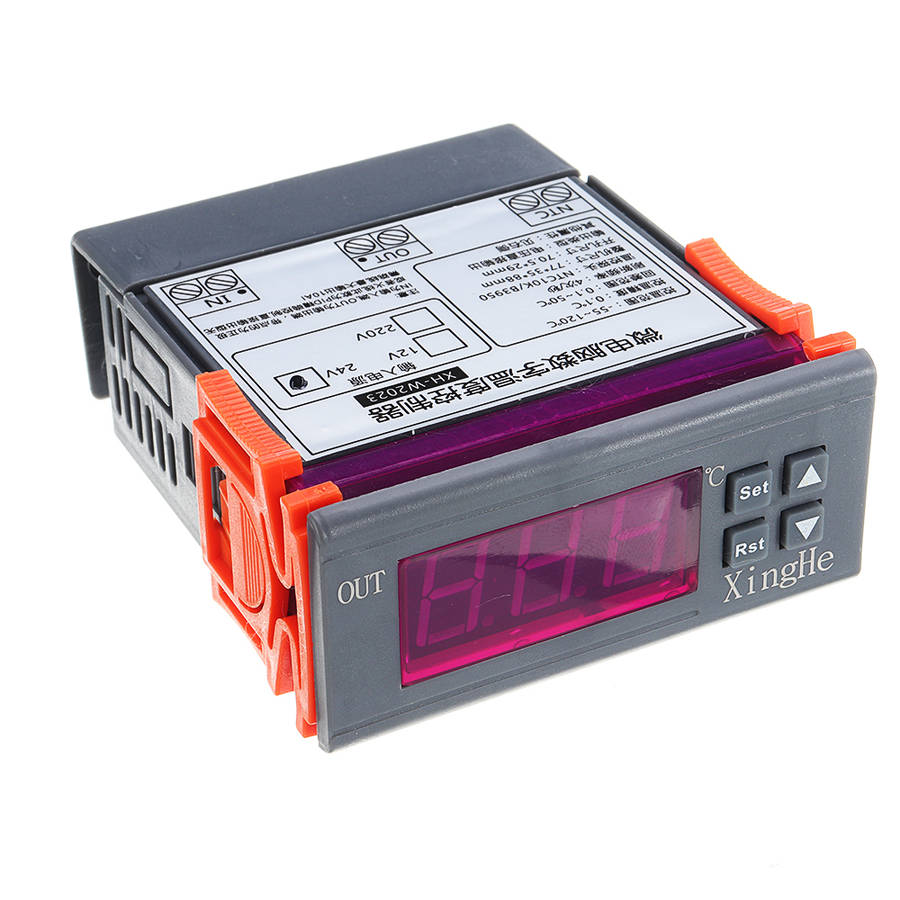

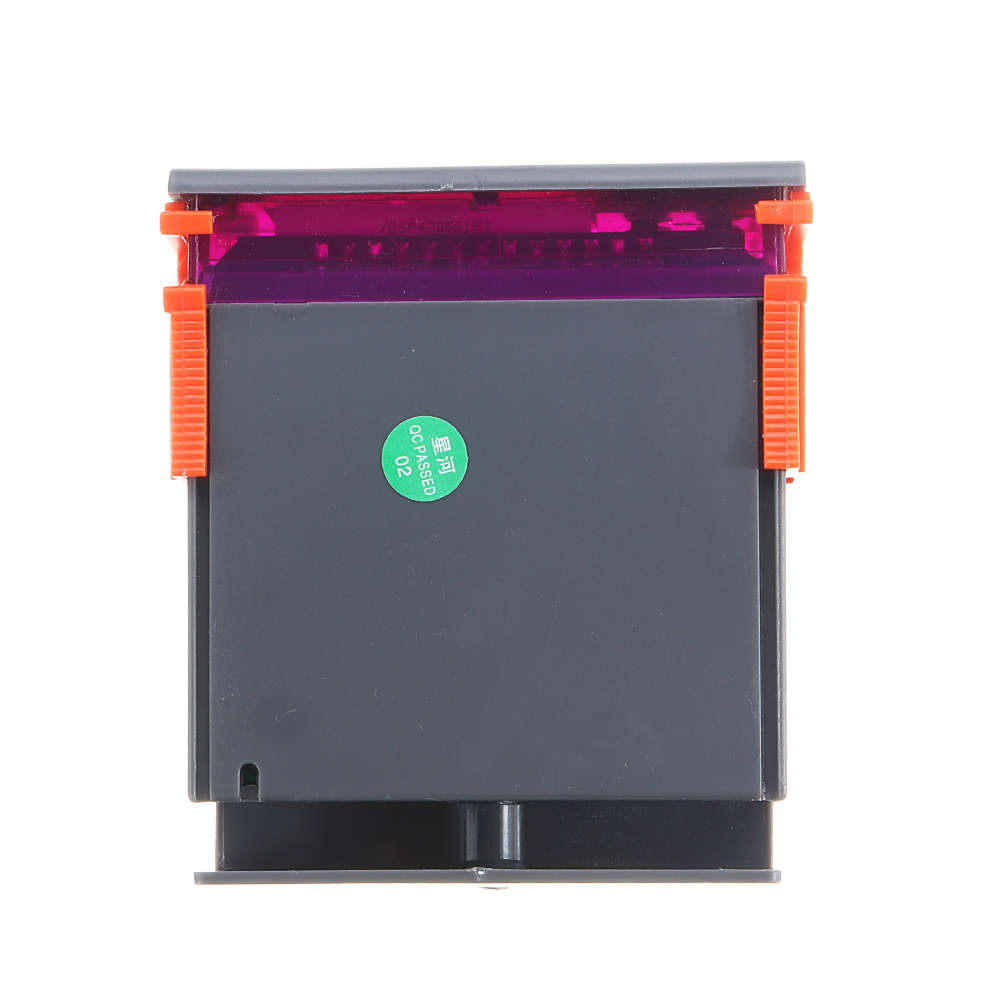

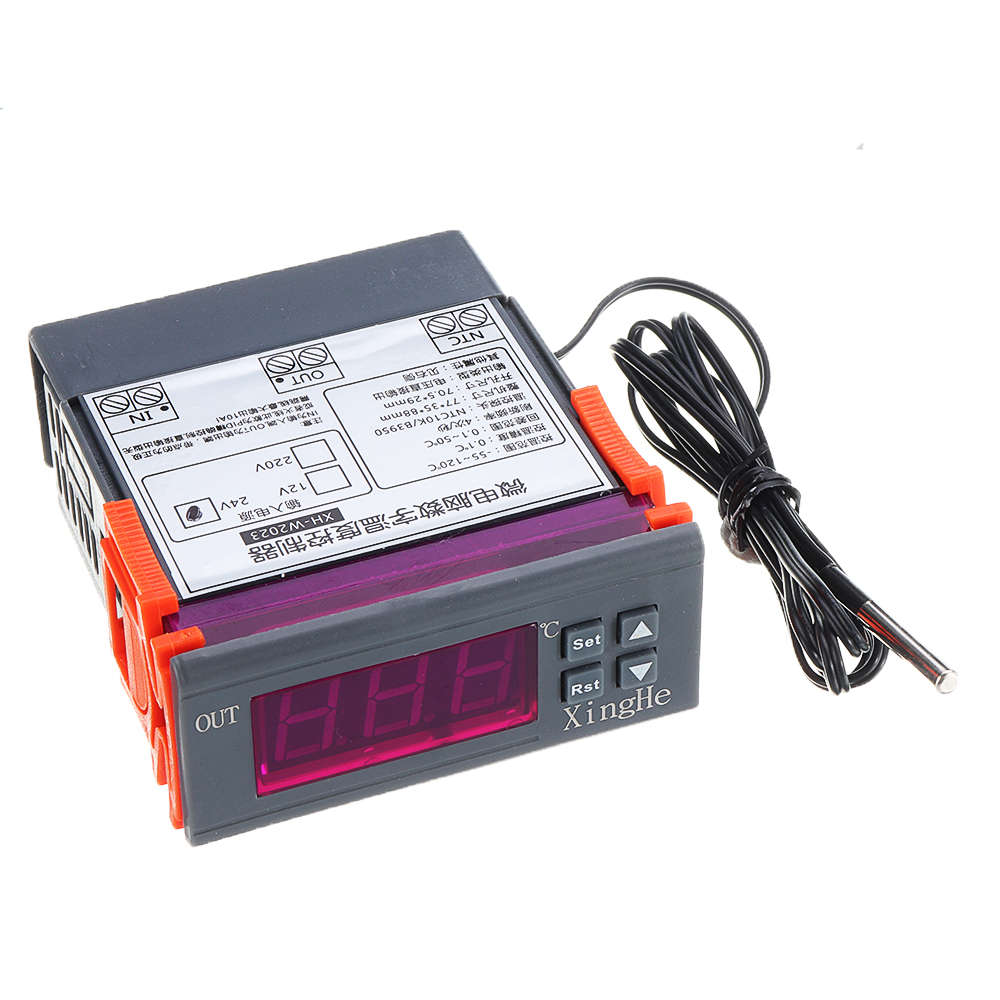

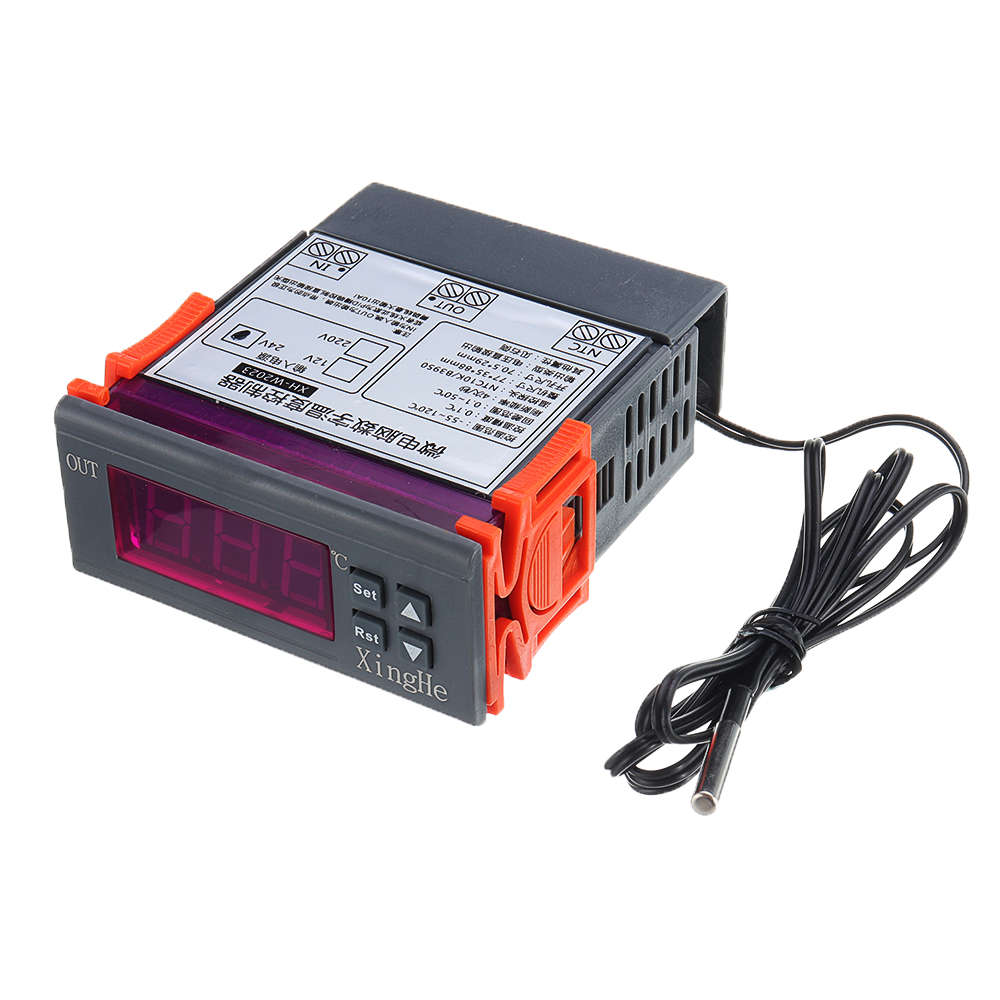

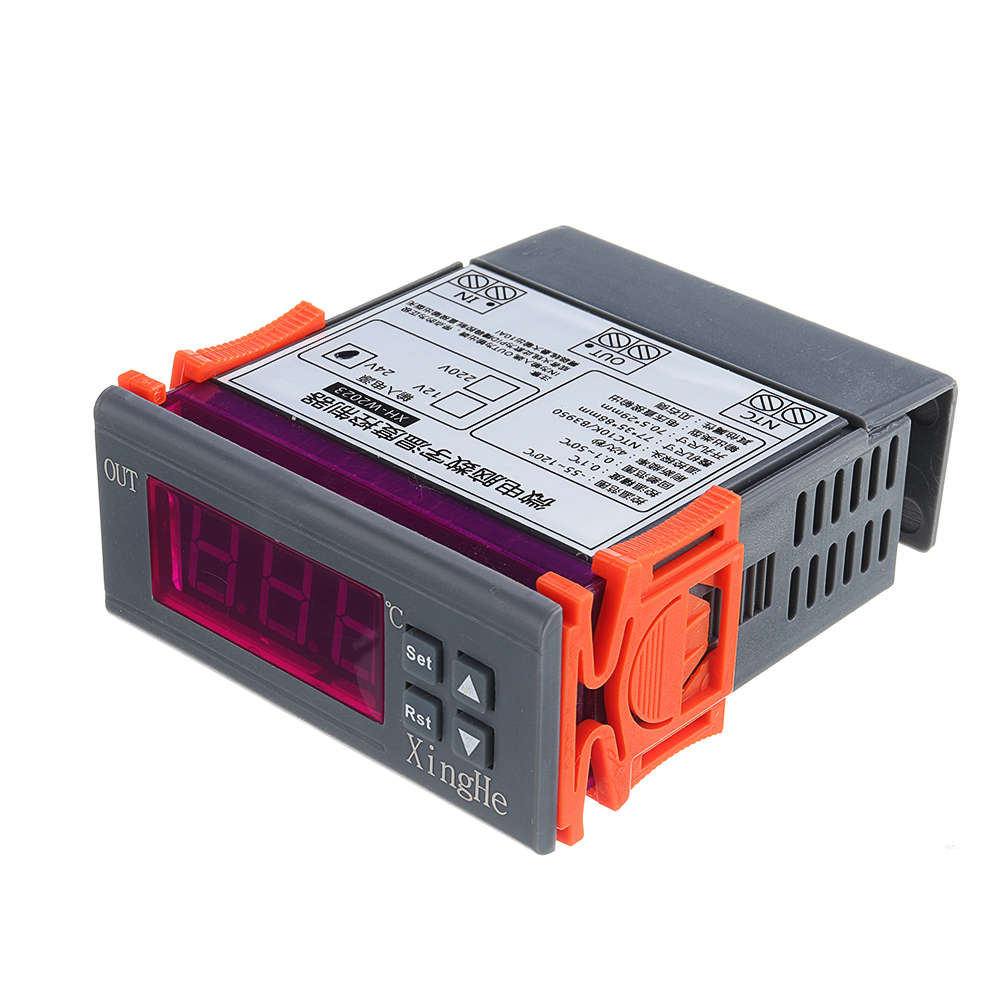

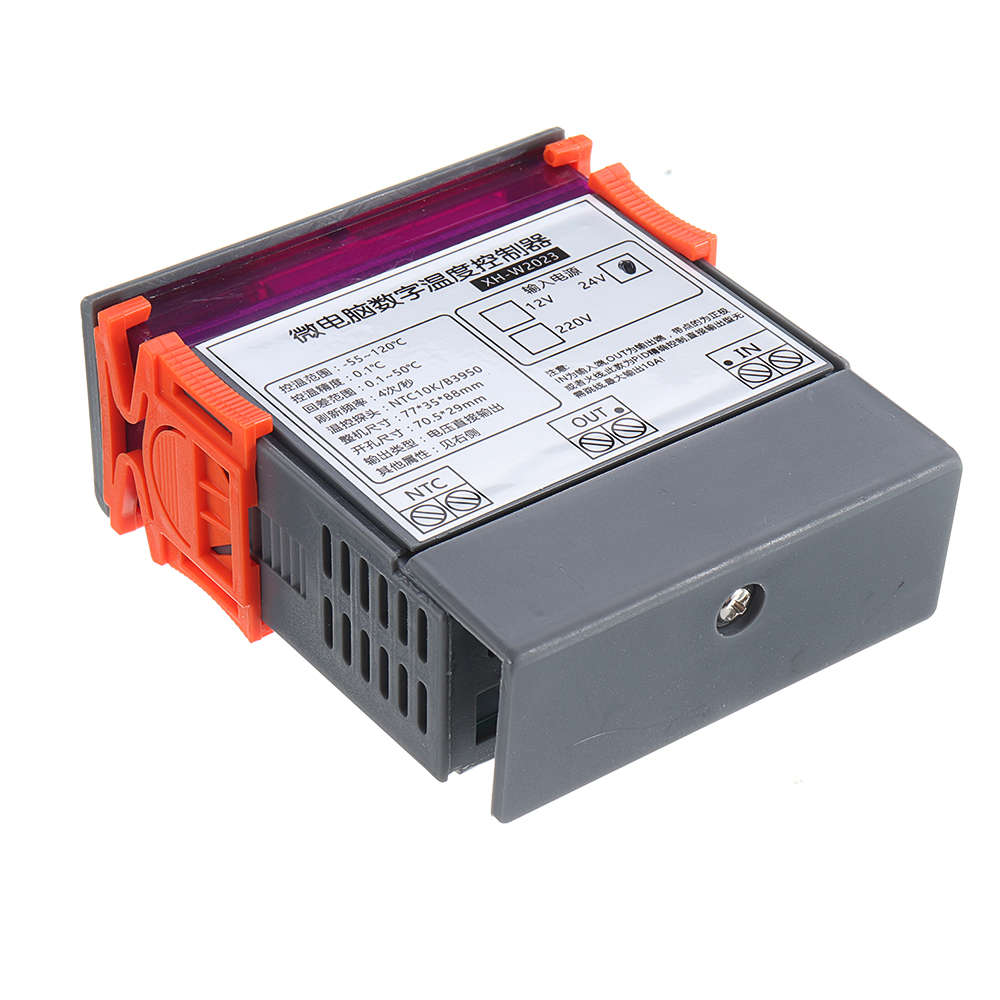

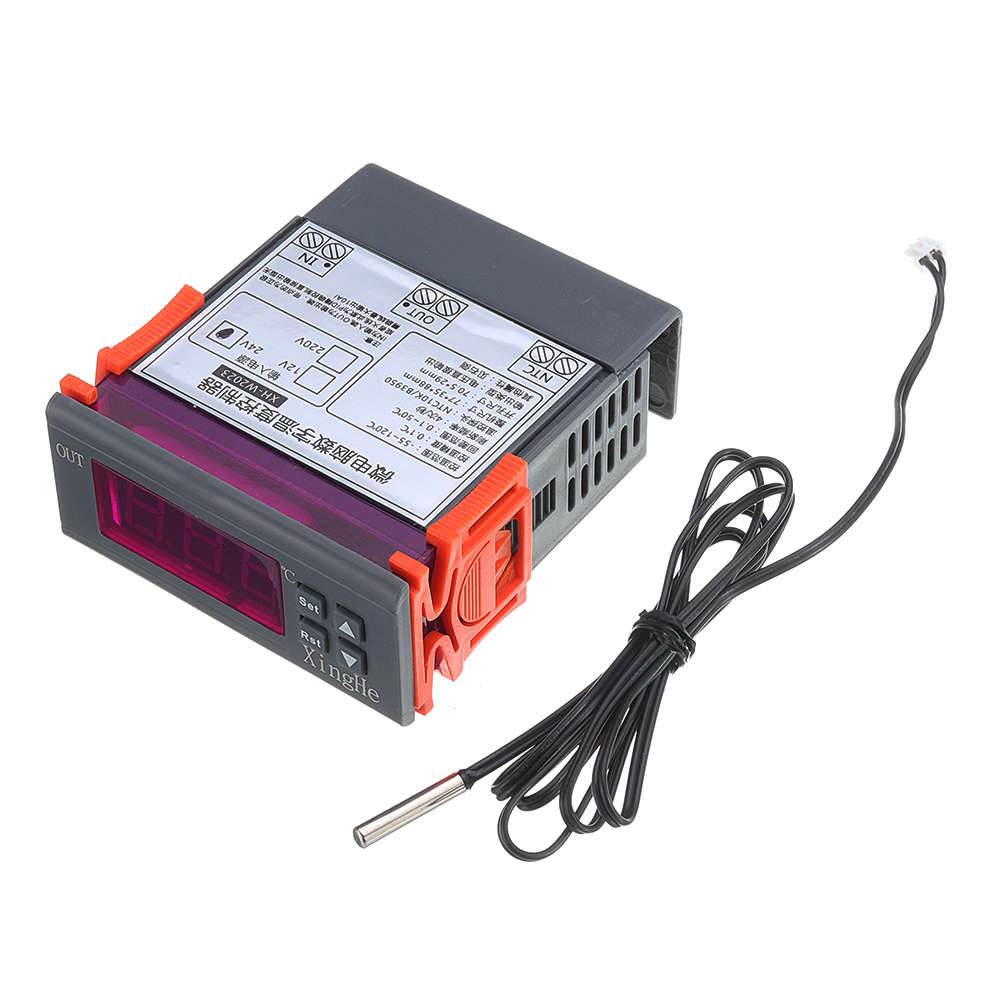

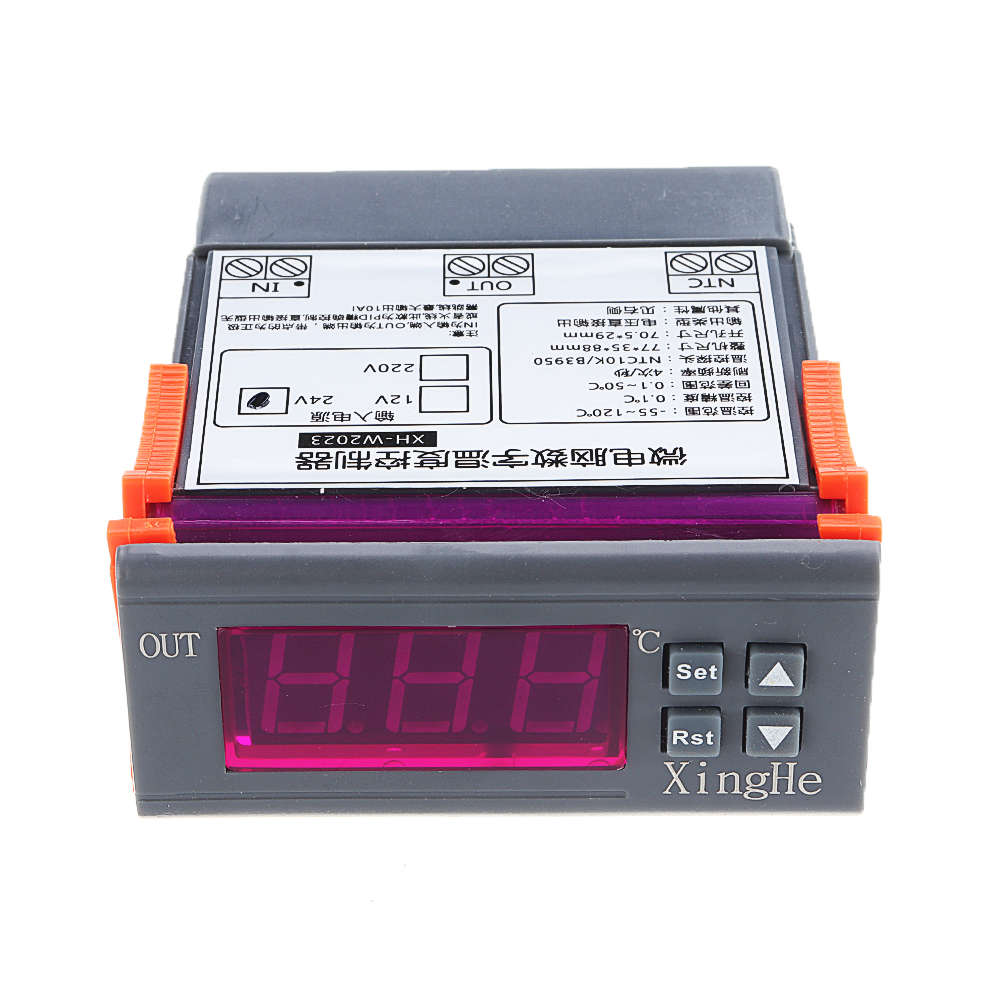

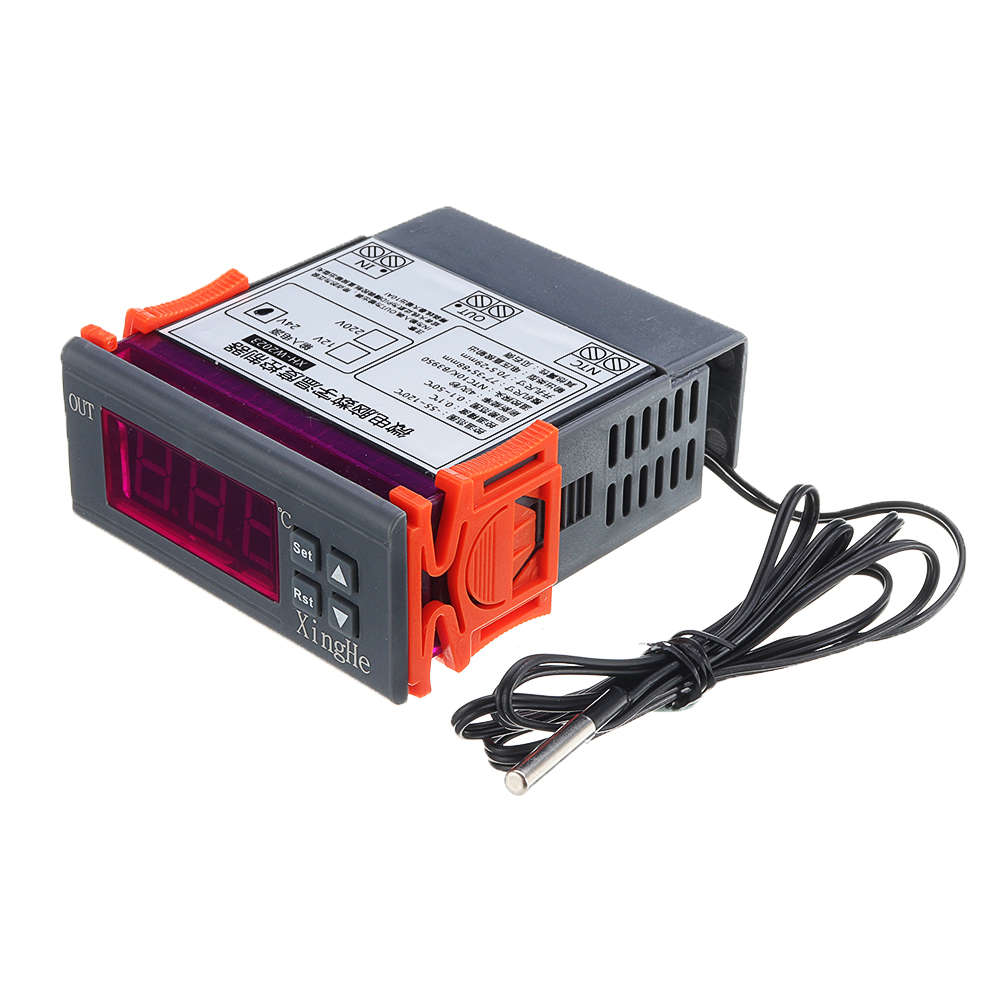

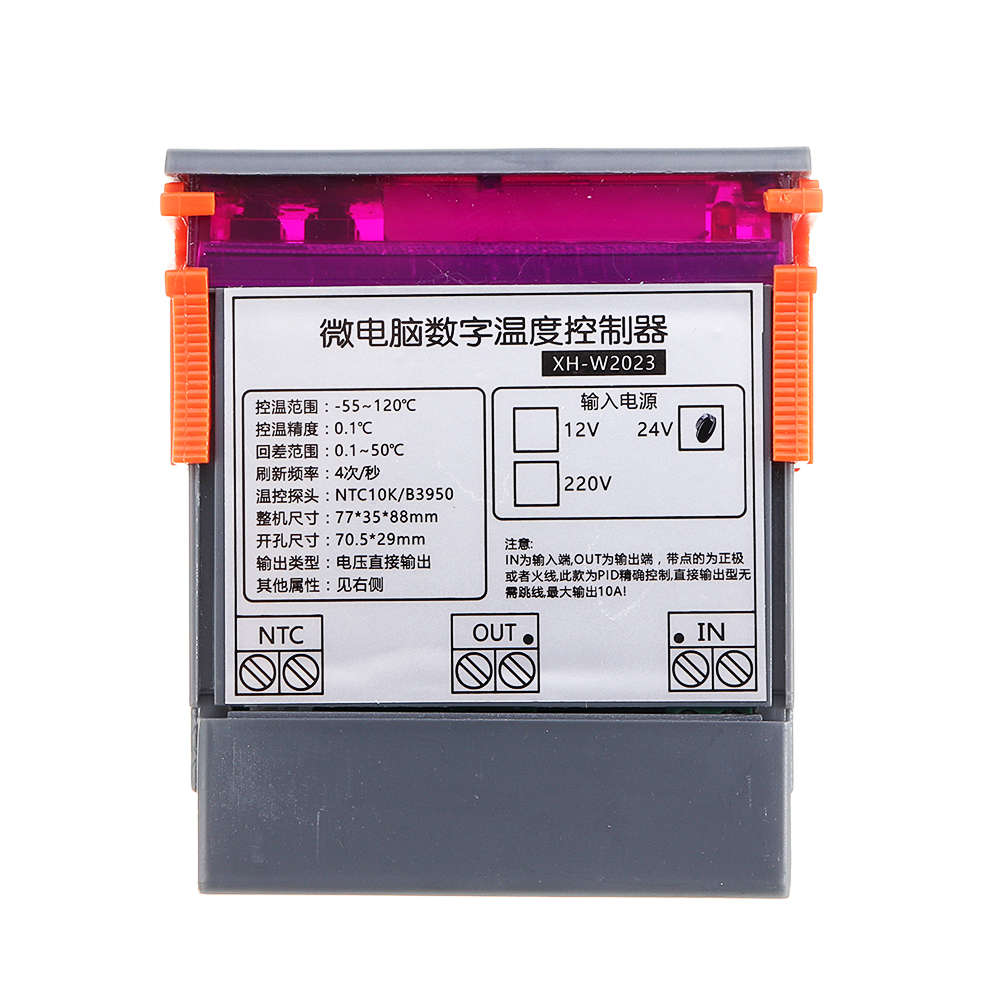

Name: XH-W2023 PID Temperature Controller Solid State Output 0.1 Precision Temperature Contr (Voltage 12V)
SKU: 1587035-voltage-12v
Price: 565.00 ZAR
Availability: SoldOut
Rating: 5 (1 reviews)

XH-W2023 PID Temperature Controller Solid State Output 0.1 Precision Temperature Contr (Voltage 12V)

5 were available / new

R565.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Gearify(Blacklisted)

96.19 % Positive ratings

Buyer protection

How you're covered

Returns

Warranty Type: Dealer Standard Dealer Warranty

Money-Back Guarantee: 7 Days: 7 Days Money Back Guarantee

Get it now, pay later

Condition

New

Location

International

Customer ratings:

1 ratings

Product code

1587035-voltage-12v

Bob Shop ID

467159223

Product	XH-W2023 PID Temperature Controller Solid State Output 0.1 Precision Temperature Control Switch Automatic Thermostat Controller (Voltage 12V)
Important Information	If you have any pre-sale questions or require more information, please feel free to ask. Please confirm stock availability before purchasing. Order processing and delivery will only commence after the lockdown. Any delays will be communicated to you. Please see the Shipping Options for information regarding shipping and delivery lead times and other important related information.

Feature:

Product Name: Intelligent PID Temperature Controller

Product model: XH-W2023

Supply voltage: DC12V/24V/220V (Optional)

Output voltage: equal to the supply voltage

Output current: up to 10A

Maximum power: 120W/240W/2200W

Temperature control range: 0-110 °C

Control accuracy: 0.1 °C

Refresh rate: 4 times / sec

Video size: 0.26 inch red three digital tube

Use environment: 0~50°C <=85%RH

Appearance size: 75 x 35 x 85mm

Product net weight: 90g

Code	Code description	Set range	Factory setting
P0	Auto-tuning switch	ON/OFF	OFF
P1	PID response speed	1-3	1
P2	Proportional gain	0.1-9.99	0.2
P3	Integration time	1-999	200
P4	Differential time	1-999	20
P5	Working period	2-60S	5
P6	Temperature alarm	-50~120°C	OFF

Steps for usage:

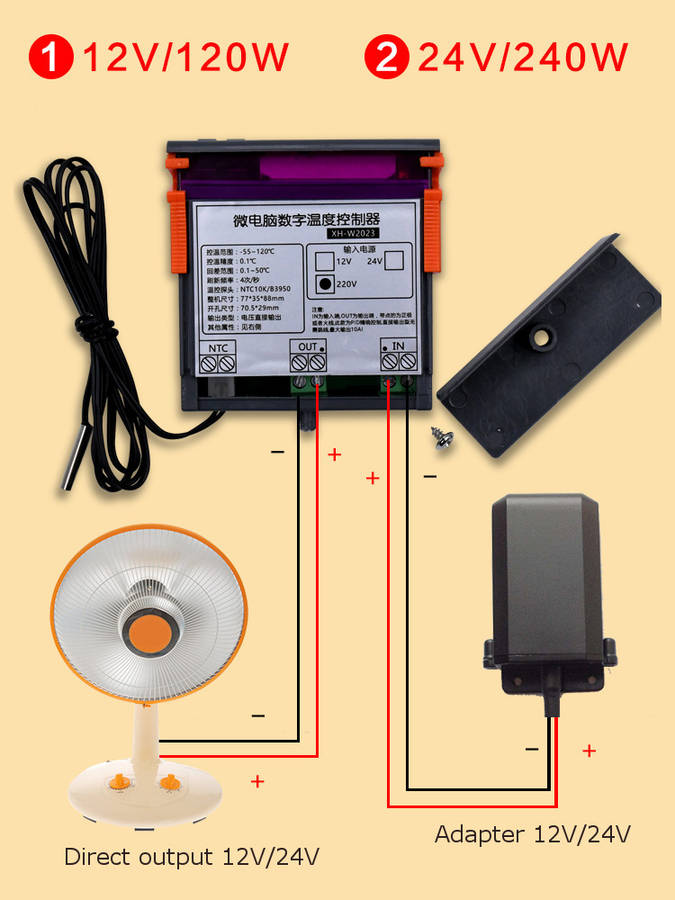

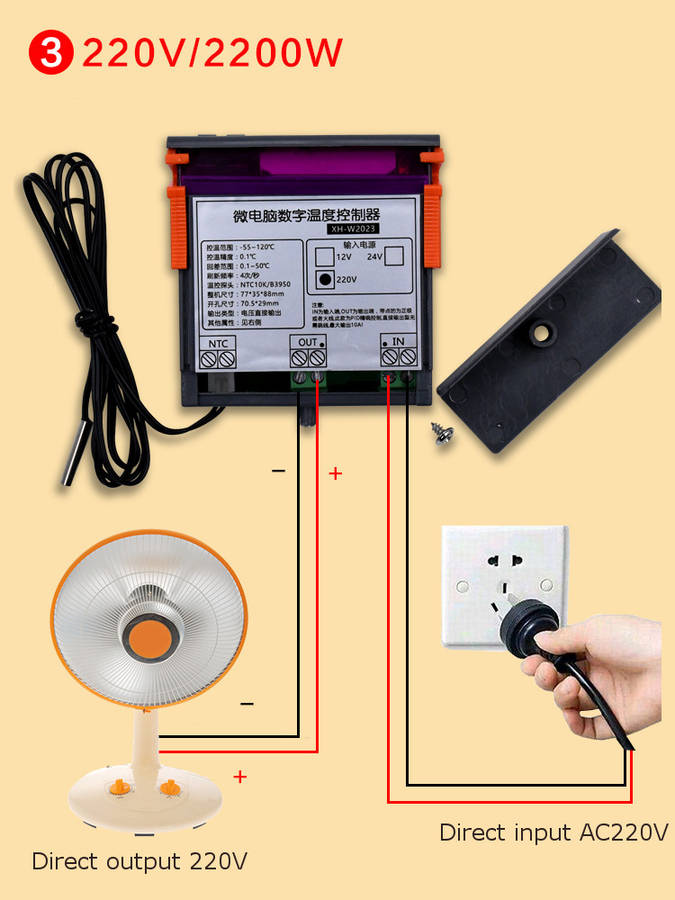

1. Connect the 12V/24V/220V power supply to the input terminal and connect the load with the voltage equal to the input terminal at the output.

2. After power-on, the screen displays the real-time temperature. Press the Set button to start the flashing of the constant temperature value. Press the up and down keys to adjust the constant temperature value you want. After the setting is completed, press the Enter key.

3. Press and hold the Rst button to turn off the power. The power-off switch state machine and the device are automatically saved.

4. Press and hold Set for 5 seconds to enter the internal function settings (P0~P6), press and hold the up and down keys, and then turn on the machine to restore the factory settings.

5. Fault code: Sensor failure---, temperature alarm, screen temperature will flash.

Package includes:

1 x XH-W2023 PID Temperature Controller
