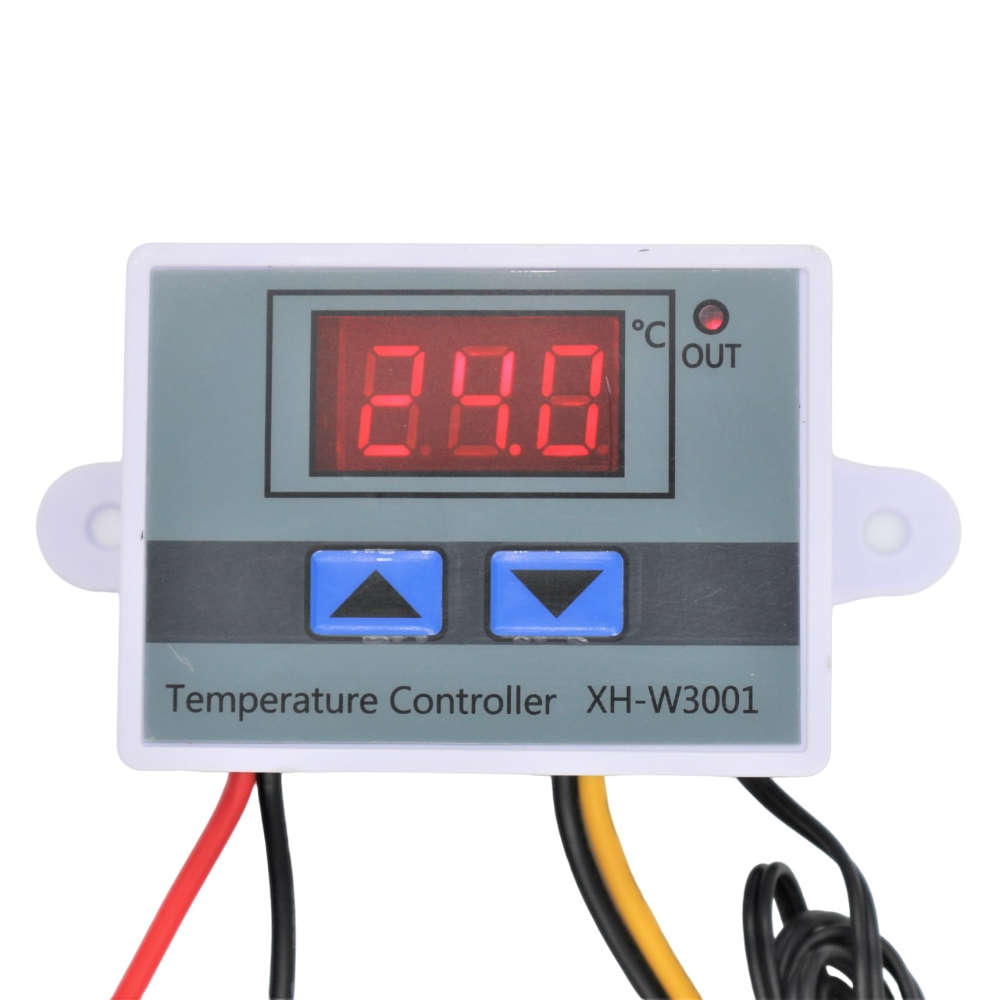

XH-W3001 220V Digital Temperature Controller (220V AC, 1500W)

The XH-W3001 220V Temperature Controller uses a high precision temperature probe to manage two working modes, heating and cooling. It is used to control temperature in eggs incubators, terrariums, when growing plants or vegetables indoor, or brewing beverages.

• Automatic switch between heating and cooling
• Wide operating temperature range(-50 to +110) with 0.1 control accuracy
• NTC10K temperature probe is made of stainless steel works in gas and fluids

Specifications

• Type: XH-W3001
• Input and Max Output voltage: 220V AC / 1500W ( max current 10A)
• Control accuracy: 0.1
• Measurement input: NTC 10K
• Operating temperature range: -50 to +110

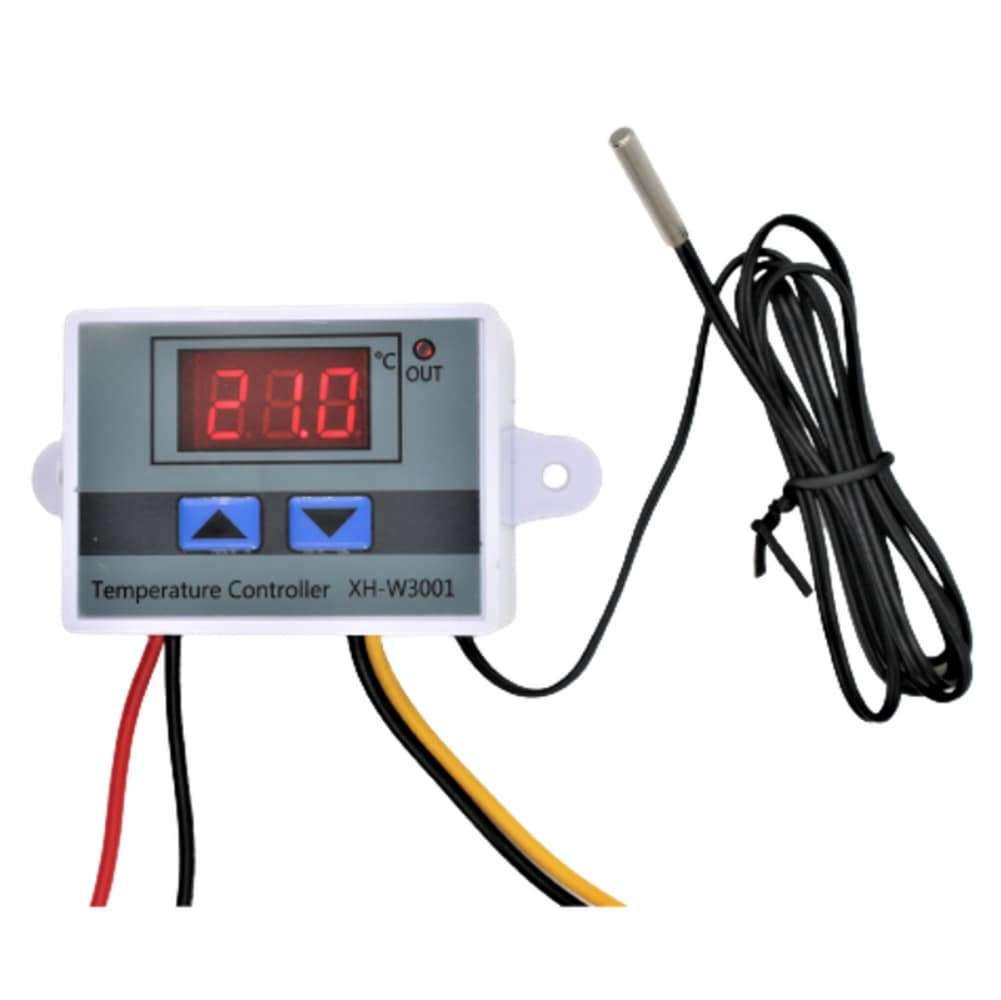

• Measurement probe: NTC10K (stainless steel, 1m waterproof cable)
• Dimensions: 60 x 45 x 31mm
• Output type: direct output

XH-WH3001 Operating Manual

Calibrate the XH-WH3001 temperature sensor

This step is necessary if the unit is showing a temperature reading that is inaccurate:

• Press the "up" and "down" buttons simultaneously once to display the temperature offset ("0.0"  initially) - it should be blinking
• Adjust the temperature offset by using the "up"/"down" buttons while it is blinking
• Don't touch anything for about 3 seconds: the blinking temperature offset disappears and the unit shows the adjusted, post calibration temperature reading of the sensor

Set the startup temperature

• Press the "up" button once to display the startup temperature
• Press and hold the "up" button for about 3 seconds: the startup temperature will start flashing and you can adjust it by using the "up"/"down" buttons

Set the target temperature

• Press the "down" button once to display the target temperature
• Press and hold the "down" button for about 3 seconds: the target temperature will start flashing and you can adjust it by using the "up"/"down" buttons

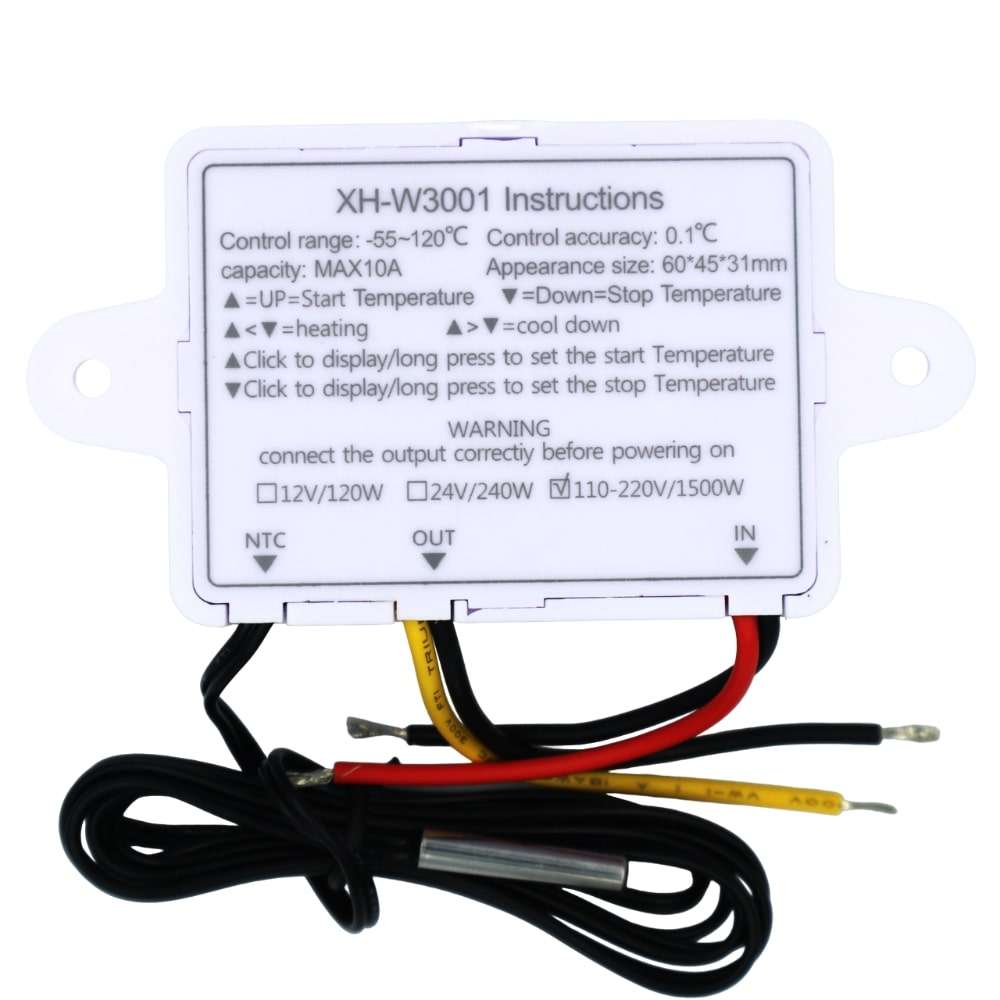

Heating mode example: keep temperature between 34 and 38

• Startup temperature: 34
• Target temperature: 38

Cooling mode example: keep temperature between 22 and 25

• Startup temperature: 25
• Target temperature: 22

Restore factory settings

• Press and hold both the "up" and "down" buttons at the same time: the display will show "888" and then measure the current temperature => the temperature controller has now been reset to its factory settings.
