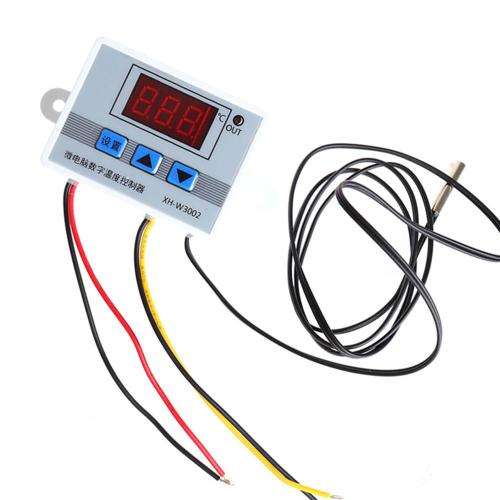

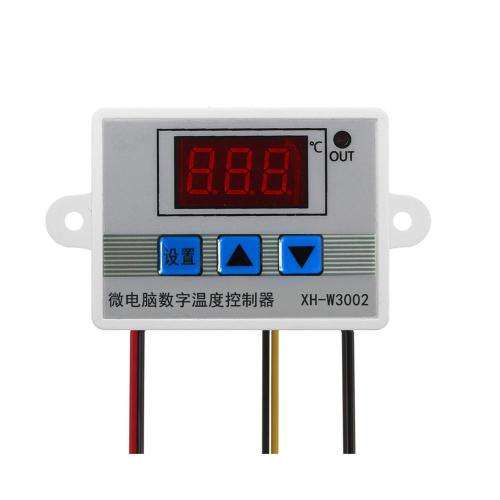

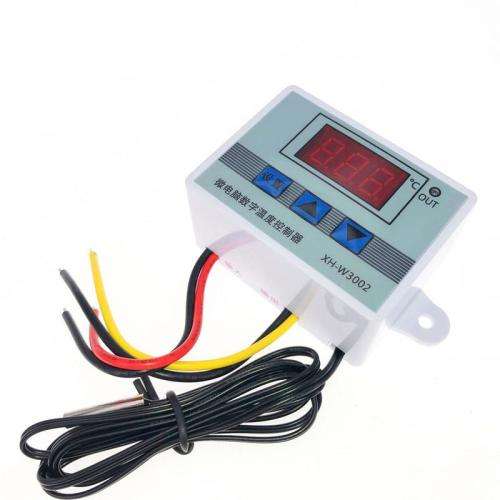

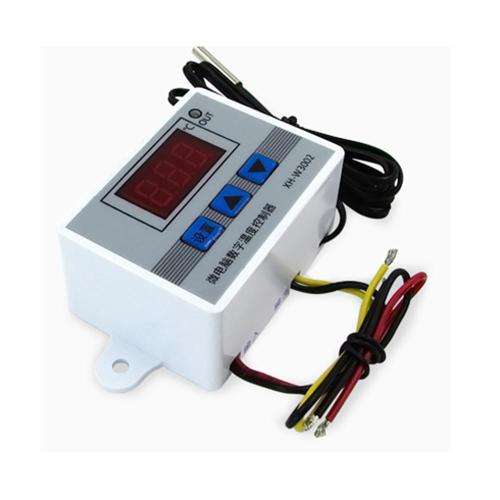

XH-W3002 Digital LED Temperature Controller

Name: Microcomputer Temperature Controller
Model: XH-W3002
Temperature Measurement Range: -50 to 110 degree centigrade
Temperature Control Range: -50 to 110 degree centigrade
Measurement Accuracy: +/- 0.2 degree centigrade
Control Accuracy: +/- 0.1 degree centigrade
Measuring input: NTC 10K L = 1M waterproof probe
Input Power: 220V
Output Power: 1500W (MAX)
Output Type: Direct output (input/output synchronization)
Output Current: 10A (MAX)
Installation Pitch: 73mm (aperture 4mm)
Size: 61x45x31mm
Applied to incubation, equipment case, air conditioning system, temperature control protection, cabinet cooling system, computer temperature control etc. area.

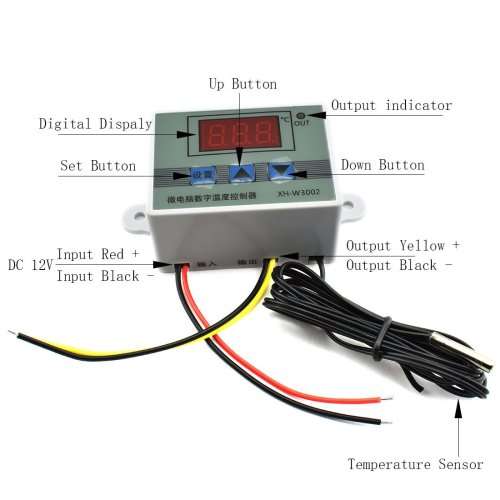

How to set
888: Power on, press the UP and DOWN buttons at the same time more than 3 seconds, restore factory setting.
LLL: In use, means sensor is fault.
HHH: In use, means the temperature is above the range.

Instruction:
Press the setting button, enter the internal menu. Press the up and down to switch setting parameter. P0: Set Start temperature
P1: set stop temperature
P2: Set temperature calibration
detect temperature + corrected temperature = actual temperature
P3: Set delay start
Press the setting button, use the up or down button to set delay time( Minutes )
