Description:
XKC-C350-3P high and low level controller and XKC-Y25-V three liquid level detection heads realize liquid level high and low control and motor idling protection function: when the container liquid level is too low, it will trigger the low liquid level alarm signal sent by the low liquid level sensor Trigger the C350 controller to close the relay to start the water pump to add liquid level. When the liquid level reaches a certain height, the high liquid level sensor sends a signal to trigger the C350 controller to open the relay and automatically stop the water pump. Thereby, the function of automatic control of the container liquid level is realized, and the container liquid level is kept stable. The idling protection function of the water pump is also added. When there is no water at the water inlet, the water pump will be automatically disconnected for 3-5 minutes to protect the water pump.
Function introduction:
1. Automatic water level control: when the water level is lower than the sensing probe, the water pump will be started automatically, when the water level rises high, the water pump will be shut down automatically 2. Pumping overtime protection: when the continuous automatic pumping exceeds 5 hours, the pump will stop automatically. The working indicator light flashes quickly, and it can be stopped by pressing the K2 key, or it can automatically delay to resume standby. 3. Manual and automatic switching: the controller will enter the automatic working mode by default when it is turned on. Press K1 swordsman to switch the working mode. The red light will be on for automatic mode and the red light will be off for manual mode. 4. Non contact induction probe: it adopts non-contact capacitance induction technology and special induction control chip design. The probe is durable, anti-interference, strong, sensitive, non-contact with liquid, anti-corrosion, safety and environmental protection pollution .
Features:
1. AC95~265V wide voltage power supply 2. Relay dry node output, suitable for multiple load control 3. The control is diversified, and the pump can be controlled in manual or automatic mode 4. Strong protection ability, with water pump idling protection function 5. The installation is simple and convenient. It can be installed with screws or electric box tracks.
Technical parameter:
Name: C350 high and low liquid level automatic controller Model: XKC-C350-3P Material: polymer Output model category: switch sensor Applicable scenario: liquid level controller Sensor category: liquid level sensor Working voltage: 220V Input voltage: AC100V-220V, 50 / 60Hz Working voltage: DC12V Working current: working current <110mA, static power consumption <20mA Load power: less than 1.6kw (overload or three-phase water pump needs to be equipped with AC contactor) Alarm output: 800W (resistive load) normally open and normally closed output Output mode: relay normally open, normally closed or AC 110V / 220V, one out of two Input signal: Low level induction signal input High level induction signal input Sensor interface voltage: DC12V Operating temperature:-10a???~ 75 a?? Measurement accuracy: 0.5MM
Package included:

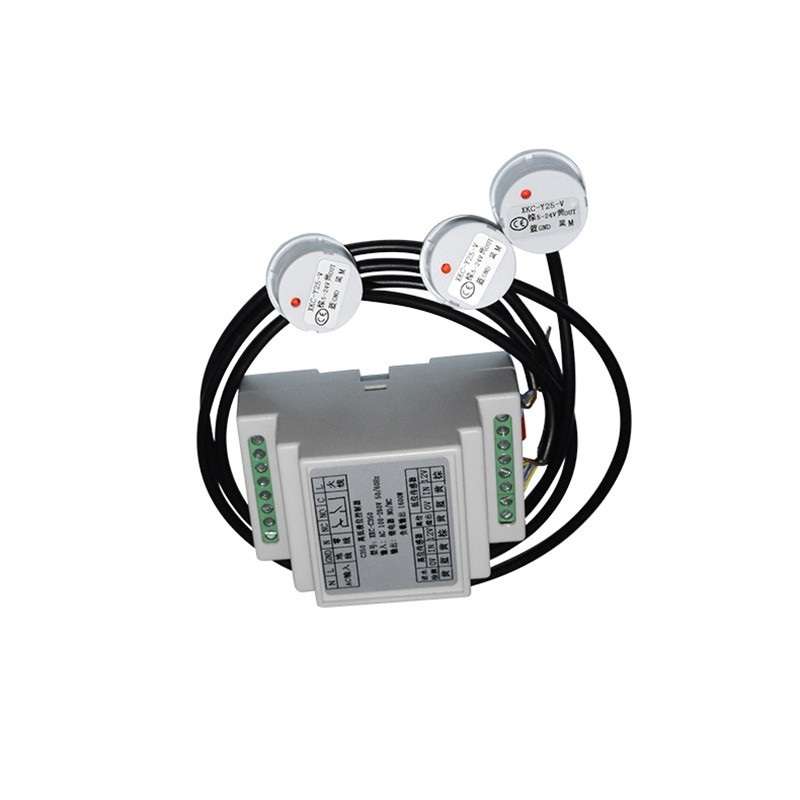

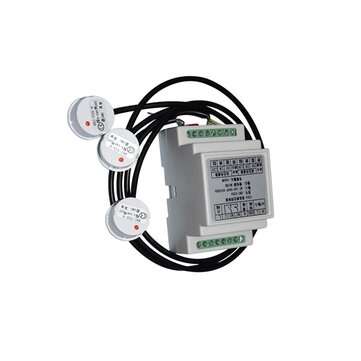

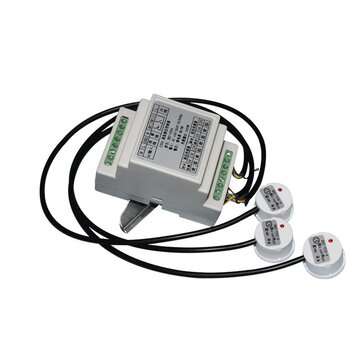

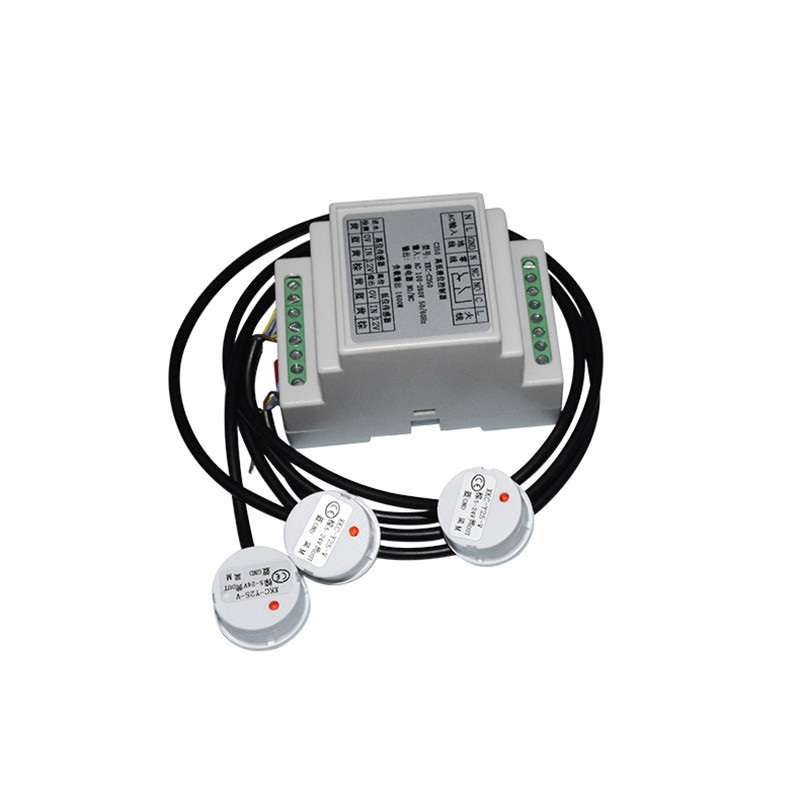

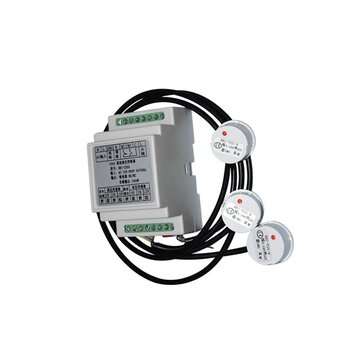

1 x water level controller?with 3 Non Contact Sensor Module?
