Package weight: 0.36 kgDescription:

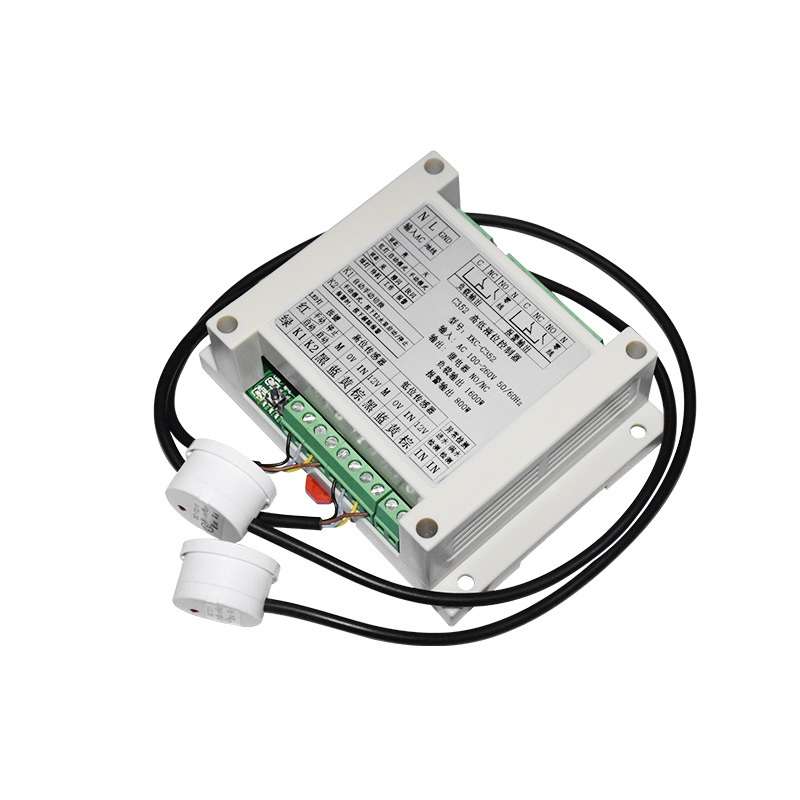

XKC-C352 high and low level controller can be used in conjunction with the non-contact liquid level sensor, and can also be used with other liquid level sensors, such as float ball.
When the liquid level is too low, the liquid level sensor sends out the low level alarm signal, and the pump starts automatically and adds liquid level. On the contrary, the pump stops automatically when the liquid level is too high. In this way, the function of automatic control of liquid level of container is realized.
Features:
1. Strong compatibility, can be used in conjunction with a variety of liquid level sensor
2. Strong protection, with waterproof pump idling protection and water level overflow detection output, with 4 hours overtime pumping alarm
3. Relay dry node output, can be applied to a variety of load control
4. Control of diversification, manual or automatic mode control of water pump
5. The installation is simple and convenient, the screw can be positioned and installed, and the electric box track can also be installed
Application: Suitable for controlling radiotube, water pumps, etc, as it can achieve the automatic control of high and low water level as well as keep level stable.
Specification:
Material: ABS
Type: Liquid Level Controller
Package Size: 19 x 11 x 5cm(7.48 x 4.33 x 21.65in)
Quantity: 1Pcs
Electricity Parameters:
Input Voltage: AV100V-220V,50/60Hz
Operating Voltage: DC12V
Operating Current:
Working current<=110mA,
Static consumption current<=20mA
Load Power: <1.6KW(Installation of AC contactor is needed for overloading or 3-phase pumps)
Alarm Output: 800W (Resistive Load) Frequent On/Off Output
Interface Voltage: DC 12V
Working Temperature: -10 - 75
Package includes:
1 x Liquid Level Controller
Basic function introduction:
Function:
1. Automatic water level control: the water level is lower than the low level sensor probe, the water pump is automatically started, the water level rises to the high level, and the water pump is automatically turned off. (Automatic water supply)
1. Automatic water level control: the water level rises to a high level, the water pump is automatically started, and the water level is lower than the low level sensor probe, and the water pump is automatically turned off. (Automatic drainage)

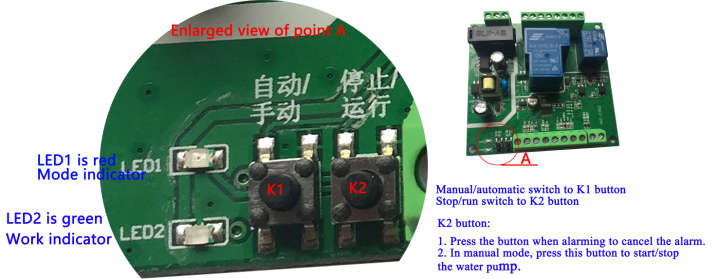

3. Manual automatic switching: The controller enters the automatic working mode by default when it is turned on. Press the K1 key to switch the working mode. The red light is on for automatic mode, and the red light is off for manual mode.
4. Water inlet pipe abnormal alarm: When the controller starts to pump water automatically, and the water inlet pipe probe cannot detect water within a certain period of time (within 10 to 30 seconds), the load output relay is disconnected to stop pumping, and the alarm output relay is closed.
5. Abnormal water overflow alarm: the controller starts to pump water automatically, and when the water surface rises to the position of the overflow alarm probe, the load output relay is disconnected to stop pumping, and the alarm output relay is closed.
6. Abnormal low probe alarm: the controller starts to pump water automatically. If the low probe fails or falls off, and the water surface rises to the high probe position, the load output relay is disconnected to sto
