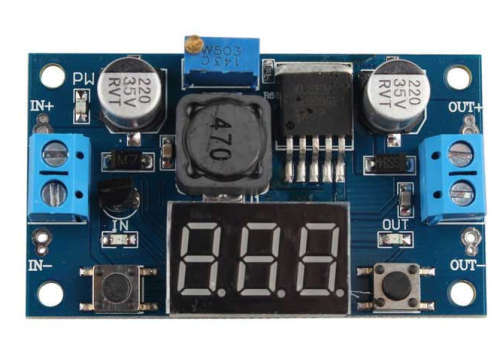

XL6009 DC-DC 4.5-32V 5-52V Boost Step-up Module Power Supply with Voltmeter ***LOCAL STOCK***

Technical parameters:
Module properties: non isolated boost (BOOST)
Rectification mode: non synchronous rectification
Input current: 4A (maximum), no-load 18mA (5V input, 8V output, no load is less than 18mA. The higher the voltage, the higher the no-load current.
Conversion efficiency: <94% (the greater the pressure difference, the lower the efficiency).
Switching frequency: 400KHz
Output ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
Load adjustment rate: 0.5%
Voltage adjustment rate: 0.5%
Working temperature: -40 ~ +85
Dimensions: 21mm * 43mm * 14mm (length * width * height)
IN+: input positive
IN-: input negative
OUT+: output positive
OUT-: output negative
Test comparison sample reference:
5V output 0.8A 9.6W 12V
7.4V output 1.5A 18W 12V
12V output 2A 30W 15V
12V output 2A 32W 16V
12V output 1.6A 28.8W 18V
12V output 1.5A 28.5W 19V
12V output 24V 1 24W A
3V output 0.4A 4.8W 12V

This item is available in stock and is not drop shipped. This avoids delays, customs charges and extra VAT.
