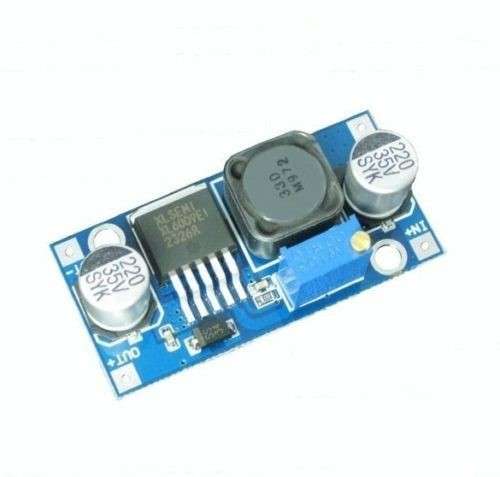

XL6009 DC-DC ADJUSTABLE STEP-UP BOOST POWER CONVERTER MODULE
.
Product information
DSN6009 4A is a high-performance step-up switching current (BOOST) module. The module uses the second generation of high-frequency switching technology XL6009E1 core chip. XL6009 boost module has superior performance at a lower cost than the LM2577 module.
Specifications
Wide input voltage 5V - 32V
Wide Output voltage 5V - 35V
Built-in 4A efficient MOSFET enables efficiency up to 94%; (LM2577 current is 3A max)
High switching frequency of 400 kHz permits use of small filter capacitors that achieve very good results. Ripple is smaller than 50 KHz operated LM2577 modules
Load Regulation: ± 0.5%
Voltage Regulation: ± 0.5%
Output Ripple: 50mV (Average ripple)
Operating Temperature: -40deg C ~ +85deg C
Dimensions: 43(L) x 21(W) x 14(H) mm
Package includes
1 x XL6009 DC-DC Adjustable Step-up boost Power Converter Module
