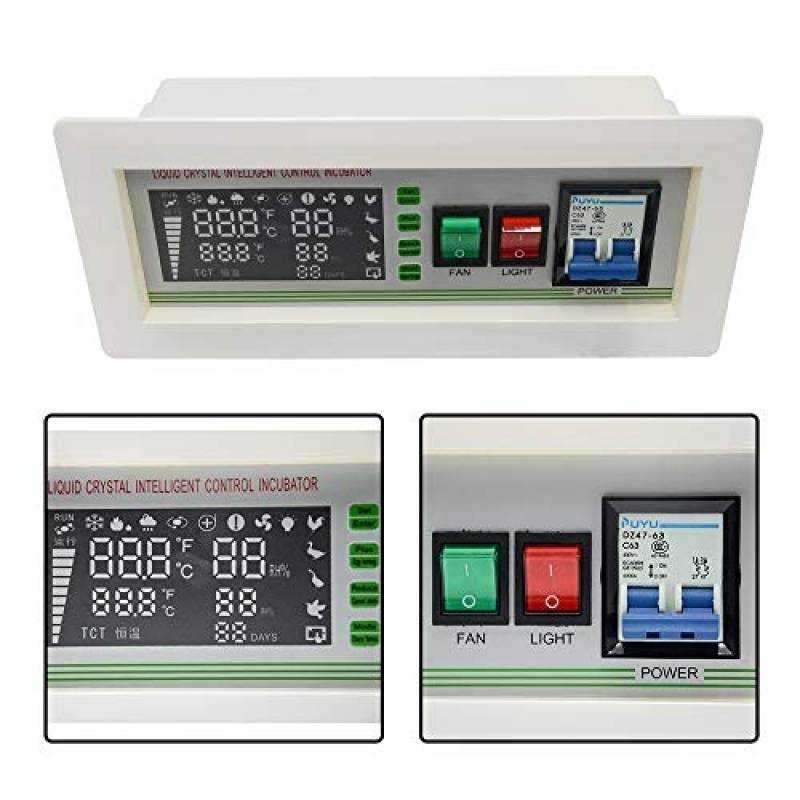

XM-18SD 220V Incubation or Hatchery Controller

The XM-18SD is an automatic multi-function incubator controller using top-quality microelectronic components with an easy-to-use interface. The XM-18SD makes use of a high-quality French manufactured capacitance humidity sensor and an NTC-based temperature sensor, both of which offer high measurement accuracy. This controller is a time-saving, labor-saving, and easy-to-use solution for almost any incubation application. It is the ideal controller for the propagation or breeding of poultry and rare birds for small to medium-sized hatcheries and can even be used for terrariums and vivariums. It has four user-friendly display screen designs, including two screens showing the temperature and humidity of the incubator. The other two screens show the egg rotation time and hatching date. Press the button and press the button to display the preset temperature and humidity. User-defined five hatching modes for chicken, duck, goose, pigeon, and Custom Mode.

Specification:

Model: XM-18D
Size: approx. 20 X 14 X 12cm / 7.87 X 5.51 X 4.72 in
Applicable models: 24-5,280 incubator
Temperature measurement range: 0-99.9 degrees
Temperature measurement accuracy: plus or minus 0.1 degrees
Humidity measurement range: 0-99% RH
Humidity accuracy: plus or minus 3% RH
Number of eggs turned: The maximum record is 999 times.
Egg turning cycle: adjust 0 - 999 minutes (factory default is 90 minutes)
Egg turn time: 0~999 seconds (default 180 seconds)
Ventilation cycle: 0~999 minutes (default 120 minutes)
Ventilation cycle: 0~999 seconds (default 15 seconds)
Temperature measurement line length: about 1.5 meters
Number of signal outputs: 7 (over-temperature, temperature control, insufficient temperature, egg left turn, egg right turn, humidity control, alarm)
Working environment:
1. Working voltage: AC 160V~240V, 50HZ
2. Relative humidity: less than 85%
3. Ambient temperature: -10 degrees to 60 degrees
