Xprinter XP-N230I Thermal Receipt Printer Product Highlights
Key Features:
User-Friendly Design Easy paper loading system for convenience
High-Speed Performance Prints both graphics and text at up to 230mm/second
International Language Support Compatible with various character sets
Wide Compatibility Supports Linux, Windows, and OPOS systems
ESC/POS Command Compatible
Logo Support Download and print up to 256KB NV logo
Technical Specifications:
Model: XP-N230I
Brand: Xprinter
Printing Method: Direct thermal printing
Print Width: 76mm
Resolution:
576 dots/line
512 dots/line
Max Print Speed: 230mm/s

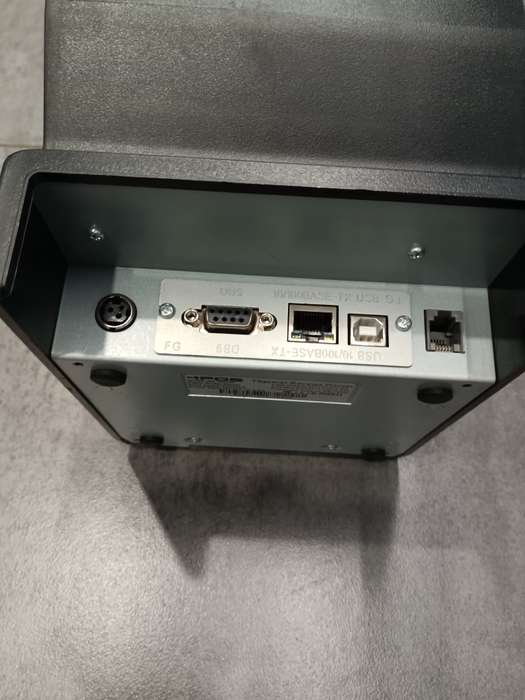

Interfaces: Parallel / Serial / USB / LAN
Paper Size: 79.5 ± 0.5mm width, max roll diameter 80mm
Line Spacing: Default 3.75mm (adjustable via commands)
Column Capacity (80mm paper):
Font A: 42 or 48 columns
Font B: 56 or 64 columns
Chinese: 21 or 24 columns
Character Sizes:
Font A: 1.5×3.0mm (12×24 dots)
Font B: 1.1×2.1mm (9×17 dots)
Chinese: 3.0×3.0mm (24×24 dots)
Character Sets Supported:
PC347 (Europe), Katakana, PC850, PC860, PC863, PC865
Greek, Hebrew, East Europe, Cyrillic, Arabic, Latin2, Latvian, and more
Barcode Types:
UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128
Buffer Memory: 64KB
NV Flash: 256KB
Power & Environmental:
Power Supply:
Input: AC 110V/220V, 50~60Hz
Output: DC 24V / 2.5A
Cash Drawer Port: DC 24V / 1A
Weight: 1.48kg
Dimensions: 190mm (D) × 145mm (W) × 153mm (H)
Working Environment: 045°C, humidity 1080%
Storage Environment: -1060°C, humidity 1080%
Print Head Lifespan: Up to 100KM of printing
Condition: Second hand with 6 months Garantee
